Description:
Hardened Grade Unmanaged 8-port 10/100/1000Base-TX (PoE+) + 2-port 1000Base-
SFP Ethernet Switch
Overview:

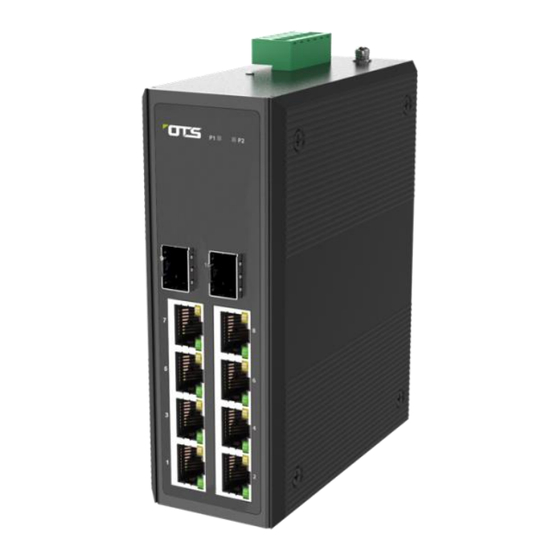

ET8222PpH-S-DR is a DIN rail type media converter that supports external SFP. It is a
Hardened grade product whose operating temperature range is -40℃to 75℃.
ET8222PpH-S-DR supports 10/100/1000M Ethernet port and 1000M SFP port. The
Ethernet port supports both half-duplex and full-duplex mode. Users can use different
type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.
Package Content
⚫
Unmanaged PoE Switch x 1
⚫
Quick Start Guide x 1
⚫
Din Rail mount bracket x 1
◎
Keep power off during installation
◎
use Antistatic Wrist Strap correctly
◎
Make sure using correct power supply, voltage must match
◎
Make sure enough power supply from PSU that will not overload
◎
Double check the wiring ( +/- ) is correct.

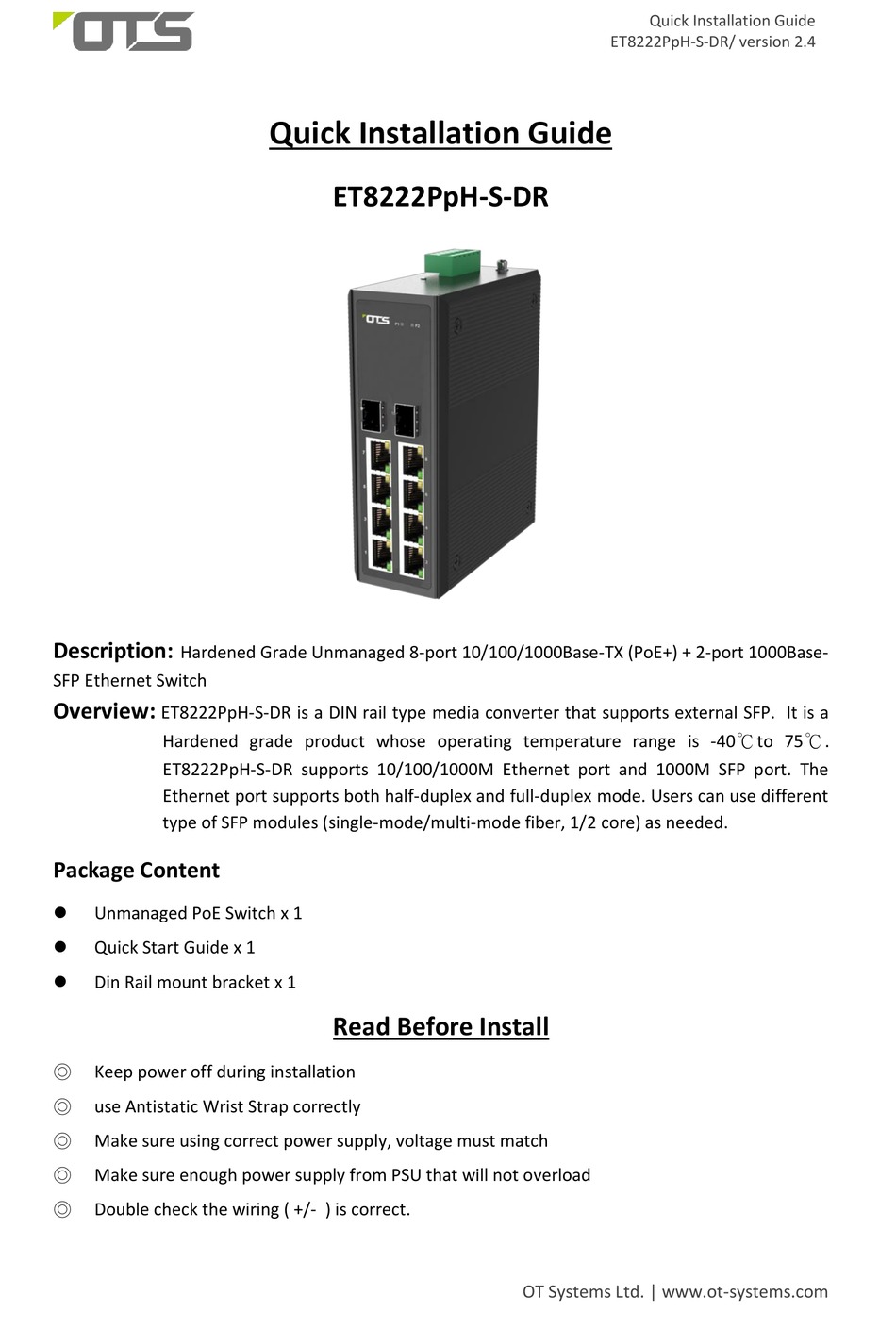

Quick Installation Guide
ET8222PpH-S-DR
Read Before Install
Quick Installation Guide
ET8222PpH-S-DR/ version 2.4
OT Systems Ltd. | www.ot-systems.com
Advertisement
Related Manuals for OTS ET8222PpH-S-DR
Summary of Contents for OTS ET8222PpH-S-DR
- Page 1 Hardened Grade Unmanaged 8-port 10/100/1000Base-TX (PoE+) + 2-port 1000Base- SFP Ethernet Switch Overview: ET8222PpH-S-DR is a DIN rail type media converter that supports external SFP. It is a Hardened grade product whose operating temperature range is -40℃to 75℃. ET8222PpH-S-DR supports 10/100/1000M Ethernet port and 1000M SFP port. The Ethernet port supports both half-duplex and full-duplex mode.
- Page 2 Quick Installation Guide ET8222PpH-S-DR/ version 2.4 ◎ Keep installation dry and clean. ◎ Do not open the chassis DIN Rail Installation DIN rail. Installation methods are as follows: Power Input DC 9-56V Power Redundant input available, connect to phoenix contact PWR1 and PWR2 PoE Output IEEE 802.3af/at, per port 30W, 1/2(+), 3/6(-)
- Page 3 Quick Installation Guide ET8222PpH-S-DR/ version 2.4 c) After the device is powered on, the PWR indicator will all be on. If the indicators are not on, check the power supply connection. d) After all cables are correctly connected, the indicators will be lit as per port status LEDs.
