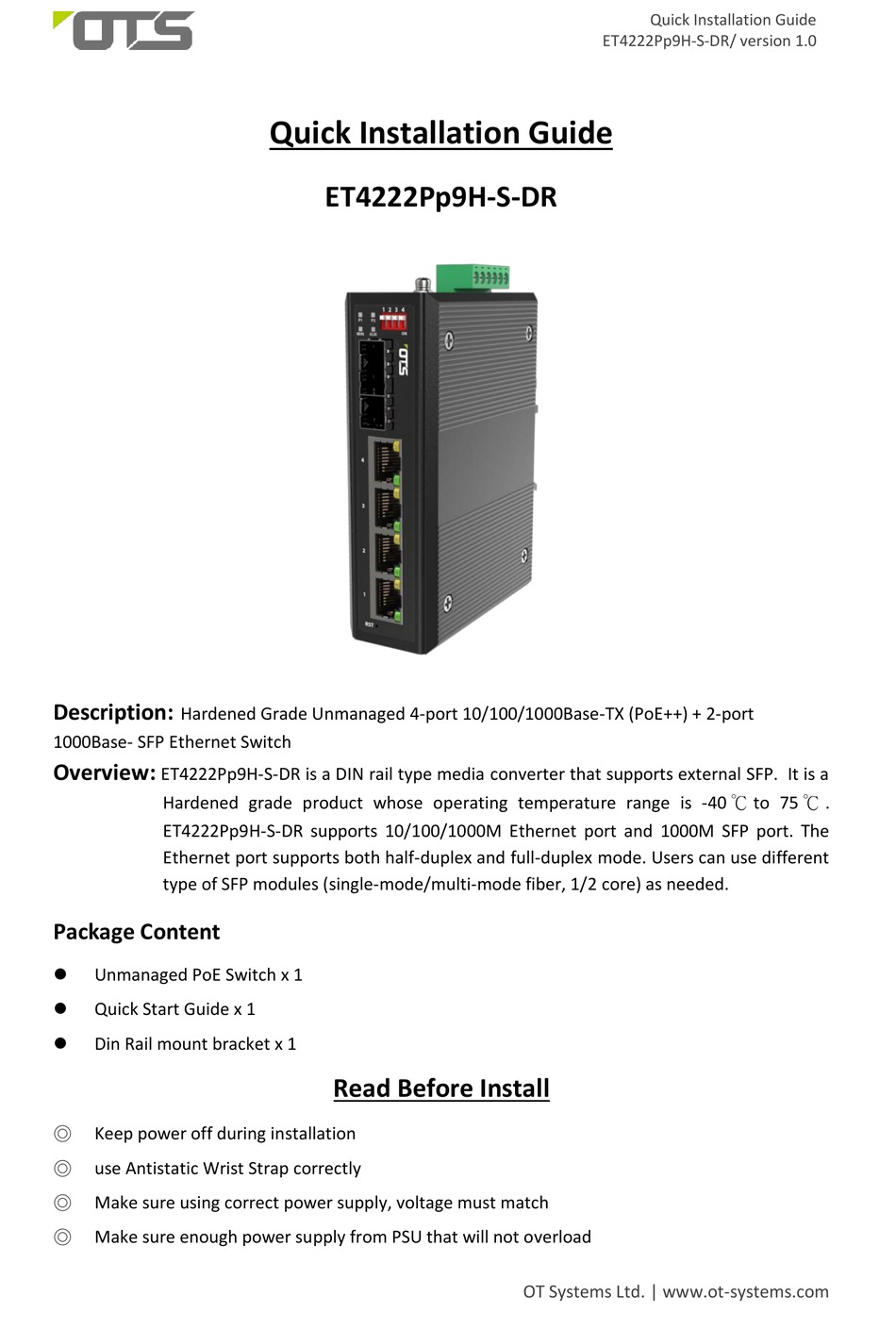

OTS ET4222Pp9H-S-DR Quick Installation Manual

Description:
Hardened Grade Unmanaged 4-port 10/100/1000Base-TX (PoE++) + 2-port
1000Base- SFP Ethernet Switch
Overview:

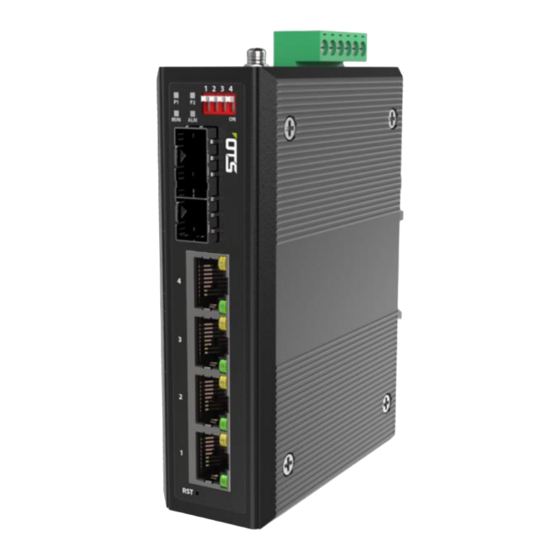

ET4222Pp9H-S-DR is a DIN rail type media converter that supports external SFP. It is a
Hardened grade product whose operating temperature range is -40 ℃ to 75 ℃ .
ET4222Pp9H-S-DR supports 10/100/1000M Ethernet port and 1000M SFP port. The
Ethernet port supports both half-duplex and full-duplex mode. Users can use different
type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.
Package Content
⚫
Unmanaged PoE Switch x 1
⚫
Quick Start Guide x 1
⚫
Din Rail mount bracket x 1
◎
Keep power off during installation
◎
use Antistatic Wrist Strap correctly
◎
Make sure using correct power supply, voltage must match
◎
Make sure enough power supply from PSU that will not overload
Quick Installation Guide
ET4222Pp9H-S-DR
Read Before Install
Quick Installation Guide
ET4222Pp9H-S-DR/ version 1.0
OT Systems Ltd. | www.ot-systems.com
