UNDERGLOW
BLUETOOTH OPT7 GLOW APP & REMOTED CONTROLLED
INSTALLATION GUIDE

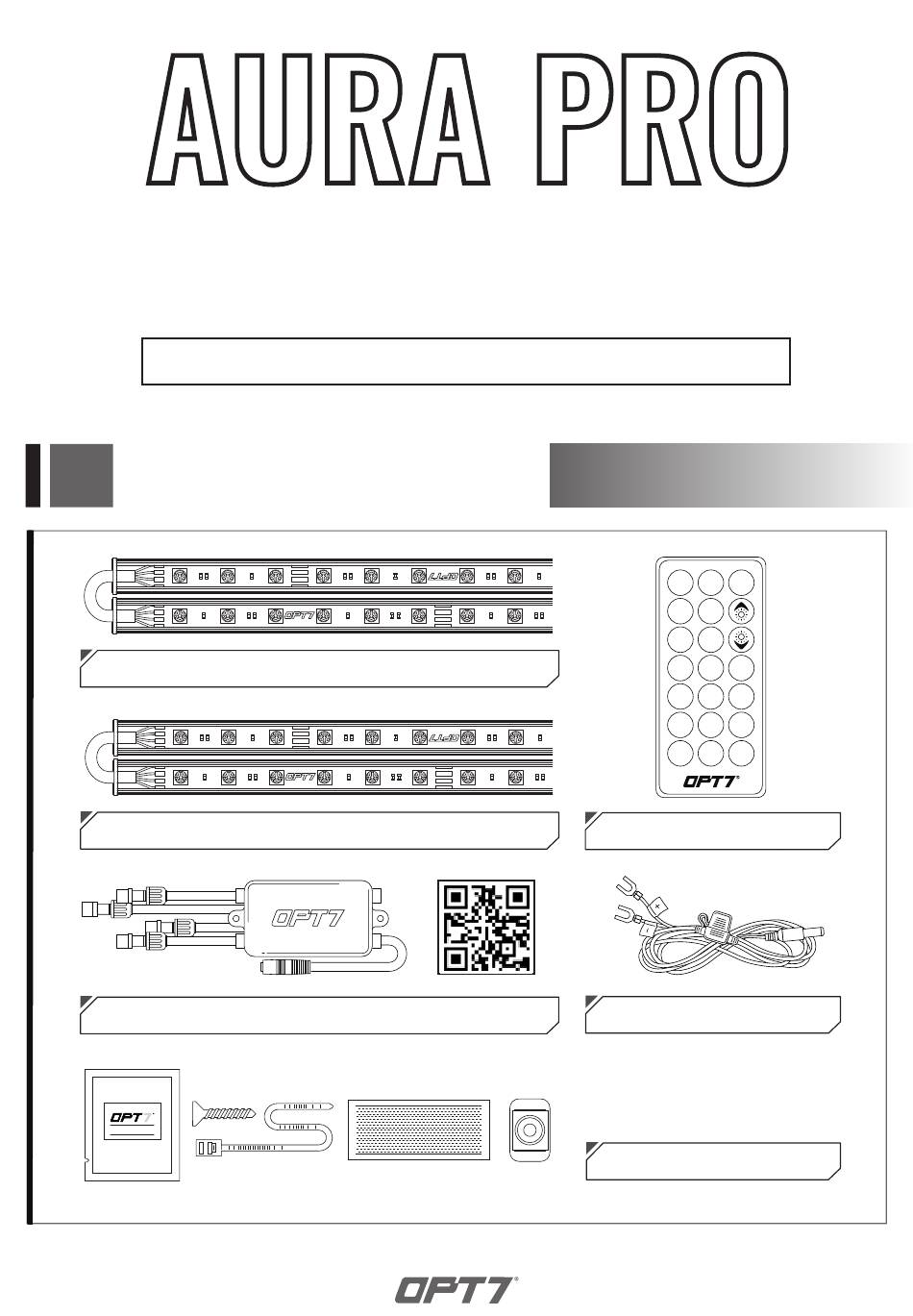

MAIN COMPONENTS
ON
OFF
AUTO
S+
M+
S-
M-
RIGID LIGHT BARS 2×48'' (TWO-SECTION MOVABLE 24")
RIGID LIGHT BARS 2×36'' (TWO-SECTION MOVABLE 18")
HAND HELD REMOTE
HARDWIRE POWER HARNESS
AURA PRO BLUETOOTH CONTROL BOX
(SCAN QR CODE FOR APP USER GUIDE)
INCLUDES -
WIRE MOUNTS, SELF-TAPPING
SCREWS, BOOSTER, VELCRO, ZIP TIES
ADHESIVE BOOSTER
MOUNTING KIT
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for OPT7 AURA PRO UNDERGLOW
Summary of Contents for OPT7 AURA PRO UNDERGLOW
- Page 1 UNDERGLOW BLUETOOTH OPT7 GLOW APP & REMOTED CONTROLLED INSTALLATION GUIDE MAIN COMPONENTS AUTO RIGID LIGHT BARS 2×48'' (TWO-SECTION MOVABLE 24") RIGID LIGHT BARS 2×36'' (TWO-SECTION MOVABLE 18") HAND HELD REMOTE HARDWIRE POWER HARNESS AURA PRO BLUETOOTH CONTROL BOX (SCAN QR CODE FOR APP USER GUIDE)
-
Page 2: Installation
INSTALLATION STEP 1 RECOMMENDATION INSTALLATION LOCATION Decide where to locate the control box and ensure wiring has enough length for light bars to be installed in desired location. IMPORTANT: The control box is waterproof, but it should still be installed in a safe area of the vehicle. Please avoid installing it in the engine bay or on heated surfaces. -
Page 3: Correct Installation
INSTALLATION HOW TO CONNECT POWER HARNESS TO YOUR VEHICLE Connect the Red wire (+) of power harness to the vehicle battery's positive terminal. Connect the Black wire (-) of power harness to the vehicle battery's negative terminal or an unpainted area on your vehicle's frame. - Page 4 STEP 2 Secure Control box in desired location with Velcro or zipties. *Ensure the control box is mounted away from water and heated metal surfaces for optimal performance. STEP 3 Secure the light bars using the zip ties to tie all the wiring away from the moving components.
- Page 5 • App iOS (12+) available on App Store • Android (8+) available on Google Play Please scan to see the OPT7 GLOW user guide. https://wintis.ladesk.com/362302-OPT7-AURA-Glow-Application-User-Guide OPTION METHOOD To power the kit using an switched 10 AMP fuse tap method, you may purchase the AURA Universal Replacement Fuse Tap Adapter Set &...
- Page 6 DISCLAIMER OPT7 Lighting is not liable for damages or personal injuries while installing this product. The Installation Guide is intended as assistance to reduce setup time. OPT7 Lighting assumes no responsibility for improper installation. If you are unfamiliar with your vehicle or inexperienced with aftermarket upgrades, please seek professional assistance.
