Summary of Contents for OPT7 AURA PHOTON ROCK LIGHTS WHITE

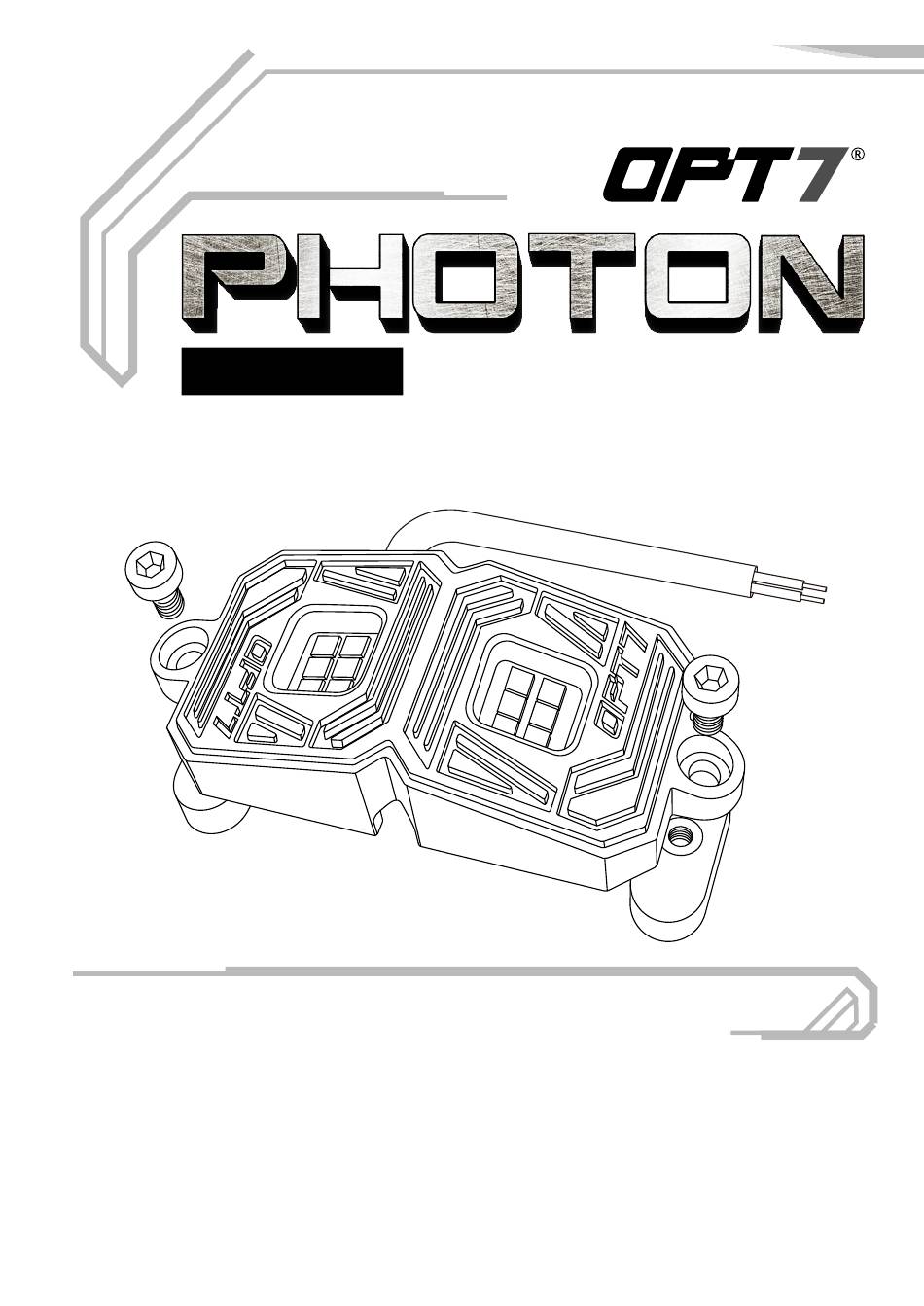

- Page 1 WHITE ROCK LIGHTS INSTRUCTION MANUAL SPECIFICA TIONS Input Voltage DC 12V Input Power Max 2.4Watts per pod LED Color 12pcs - White per pod Raw Lumens 550 LM (4 Pods Combined) Waterproof IP68 (Only Pod) Operating Temperature -5℉ - 120℉...
- Page 2 MAIN COMPONENTS 4 X PHOTON WHITE 4 X VHB DOUBLE SIDED ROCK LIGHT POD ADHESIVE TAPE 16 X MOUNTING SCREWS 30 X ZIP TIE WHERE TO INST ALL FRONT REAR RECOMMENDED LOCATIONS FOR ROCK LIGHT PODS...
- Page 3 3 WA YS TO MOUNT THE ROCK LIGHT POD STEP 1 There are 3 installation methods for you to choose, you can refer to the following methods to install. Use “Self-Drilling Screws” for mounting OPTION 1 as shown in Fig. 1 Use “VHB Double-Sided Adhesive”...
- Page 4 Dustproof Light indication EASY TO CONTROL OPT7 Rock Lights 5-Pin ON/OFF Rocker Switch with Jumper Wires are designed to turn on/off the Photon Rock Lights easier. Light Indication Design: Easy to operate and locate in plain sight or darkness. Dustproof Design: Avoid dust cluttering rocker switch...
- Page 5 The installation guide is provided as assistance to reduce set up time. DISCLAIMER OPT7 Lighting is not liable for damages or personal injuries while installing this product. The Installation Guide is intended as assistance to reduce setup time. OPT7 Lighting assumes no responsibility for improper installation.
