Summary of Contents for Backyard Creations UMB-933061

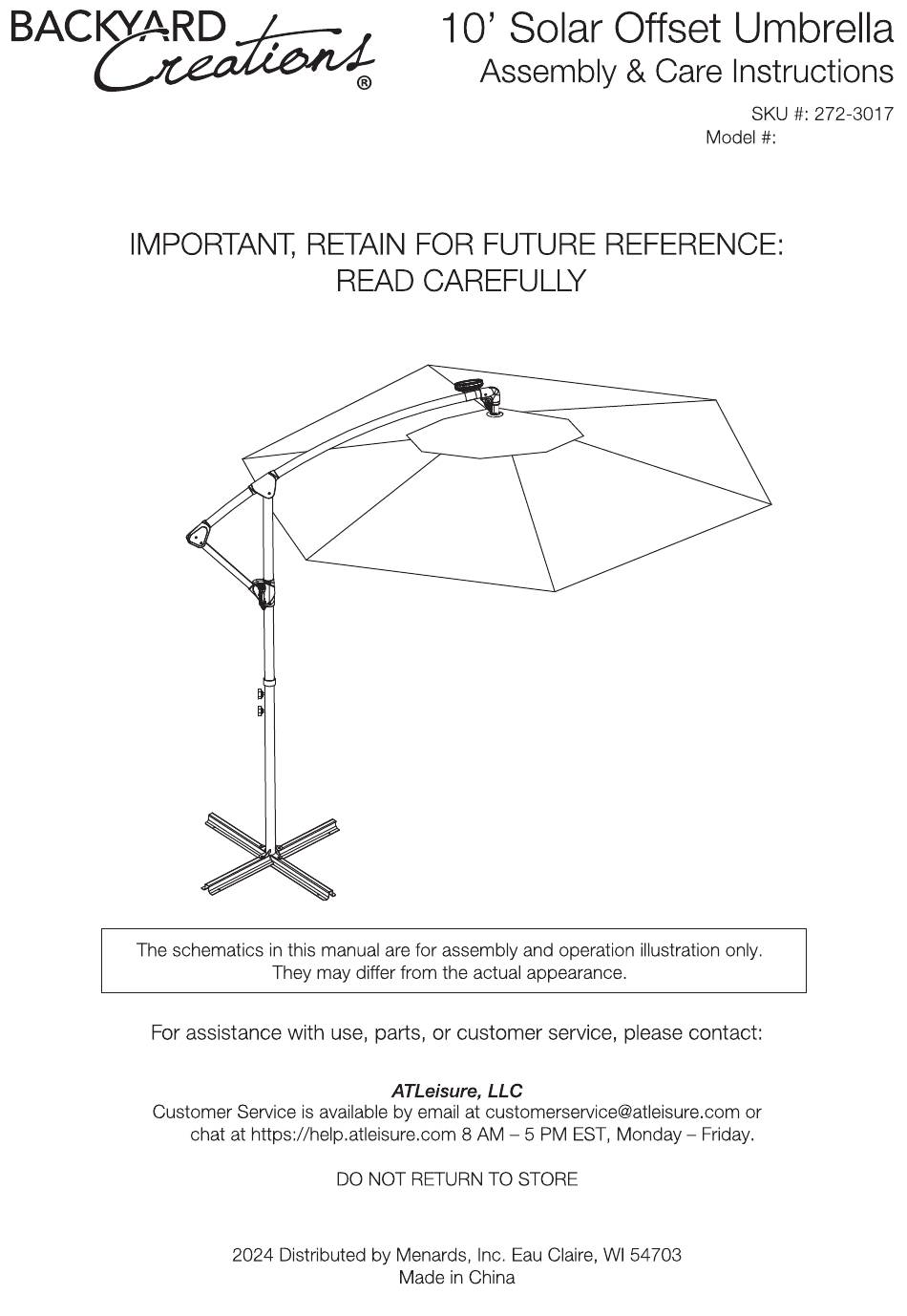

- Page 1 UMB-933061...
- Page 2 • • • •...
- Page 3 Wrench...
- Page 5 Place the upper cross leg (E) on the top of lower cross leg (D).Then attach the holder pole (F) to the cross legs, insert the bolts (B) and washers by wrench (G). Adjust the holder pole (F) to be sure that it is positioned correctly on the base and tighten the bolts.
- Page 6 WARNING: Be sure to secure and/or weight the cross leg base of the umbrella with at least 150 lbs to prevent the umbrella from tipping over with umbrella base (sold separately)
- Page 7 Open the folded crank as below drawings. Then open the canopy by the handle. Turn on the light by pressing switch to ON position.
- Page 8 After finish using, please make sure the switch on the umbrella rib is in OFF position. Then close the canopy by turn the handle counterclockwise, unclock the trigger, pull down the umbrella arm, lock the trigger and fasten the storage straps. Storage straps...
- Page 9 This product is covered under a manufacturer’s one year warranty from date of pur- chase against defects in materials and workmanship. This warranty does not cover damage due to neglect, abuse or weather related damage. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
- Page 11 U.S.Patent No. 6,612,713 & 7,753,546 8,069,868 & 8,375,966 8,727,555 & 8,794,781 9,470,413...
