FASTRON. FC150A3 Manual

Digital Temperature Controller
FC150A3
(76x34mm)
A Description
TC150A3 series digital temperature controllers provide panel mount,
temperature display , audible alarm, relay control, start-up delay and feature
programmable set points,
calibration. Applications for use include heating, cooling, refrigeration, HVAC,
food service, medical and industrial equipment.
B Features
Powerful function and easy use:
1. Membrane touch-pad programming
2. 0.65" high white, green and yellow LCD display
3. Programmable set point(s) and differential(s)
4. Panel mount enclosure
5. Start-up delay function
6. Current Temperature and set values display
7. LCD relay status indicator
8. Easy programming via LCD display prompts
9. Tamper resistant programmable set point limit
10. Fault self-diagnosis and alarm functionality
11.100-240V voltage input, universally applicable.
C Specification
1) Rated Power Supply:100 ~ 240VAC±10%, 50 / 60Hz.
2) Storage Environment: -20~60℃/-4~140℉(25~85%RH without
condensation or icing).
3）Working Environment: -10~55℃/14~131℉(25~85%RH without
condensation or icing).
4）Measuring Temperature Range:-40~150℃/-40~302℉.
5）Control Temperature Range:-40~150℃/ -40~302℉.
6） Resolution:1℃/℉.
7）Accuracy:±1℃/±2℉.
8）Input Type: One way NTC Sensor.
9) Output type:1 way mechanical relay output （Normally open：20A/250VAC）
Life up to 100 thousand times, Can be directly used for 1HP compressor,
9) Power Consumption: Less than 3W.
10) Waterproof Level: IP64.

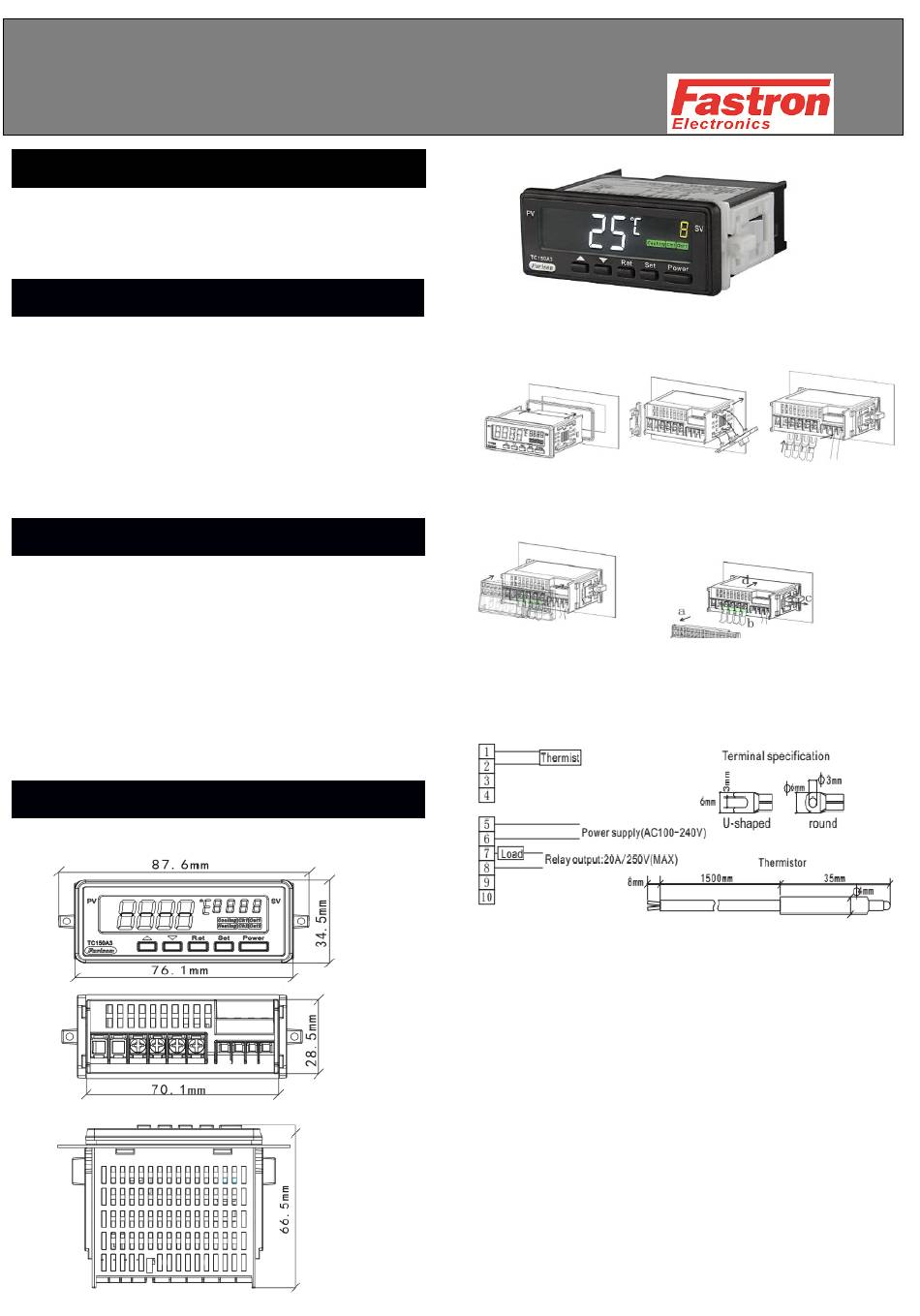

D Dimensions ,installation and disassembly
Prodct appearance size
fault self-diagnosis, differentials and
Installation
1. Put the waterproof
rubber pad into the device
before installation.
4.Cover the rear cover up
to finish the installation.
External wiring diagram
Precautions
Make sure that the terminals are preporely connected, and the
1)
unnecessary Leave unconnected.
Use this product within the rated power supply and load range, otherwise it
2)
may cause damage to the product.
The product should be stored and used within the rated temperature and
3)
humidity, otherwise it may cause damage to the sensor.
To prevent high frequency interference, the NTC cable can not be bundled
4)
with the input cable or output cord in parallel; it should be separated from
them.
Can not let the sheet metal,scrap
5)
out of installation into the product,otherwise it may cause electric shock,
fire, or failure.
Do not touch the terminal when the power is turned on, otherwise it would
6)
cause electric shock.
Do not disassemble, modify or repair the product, otherwise it may cause
7)
product damage.
Do not use this product anywhere with flammable and explosive gas,
8)
otherwise,otherwise it may cause personal injury.
FURISON
3.1&2 connectors for
2.Holding the fasteners
NTC cable, 5&6 for
while push it inside
input power cords.
Disassembly method: Remove the rear
5.
cover and loose the screws to get rid of the
connecting wires;unlock the fasteners at both
sides to push the controller outside.
or other conductive objects came
