Summary of Contents for Furniture of America NX7004

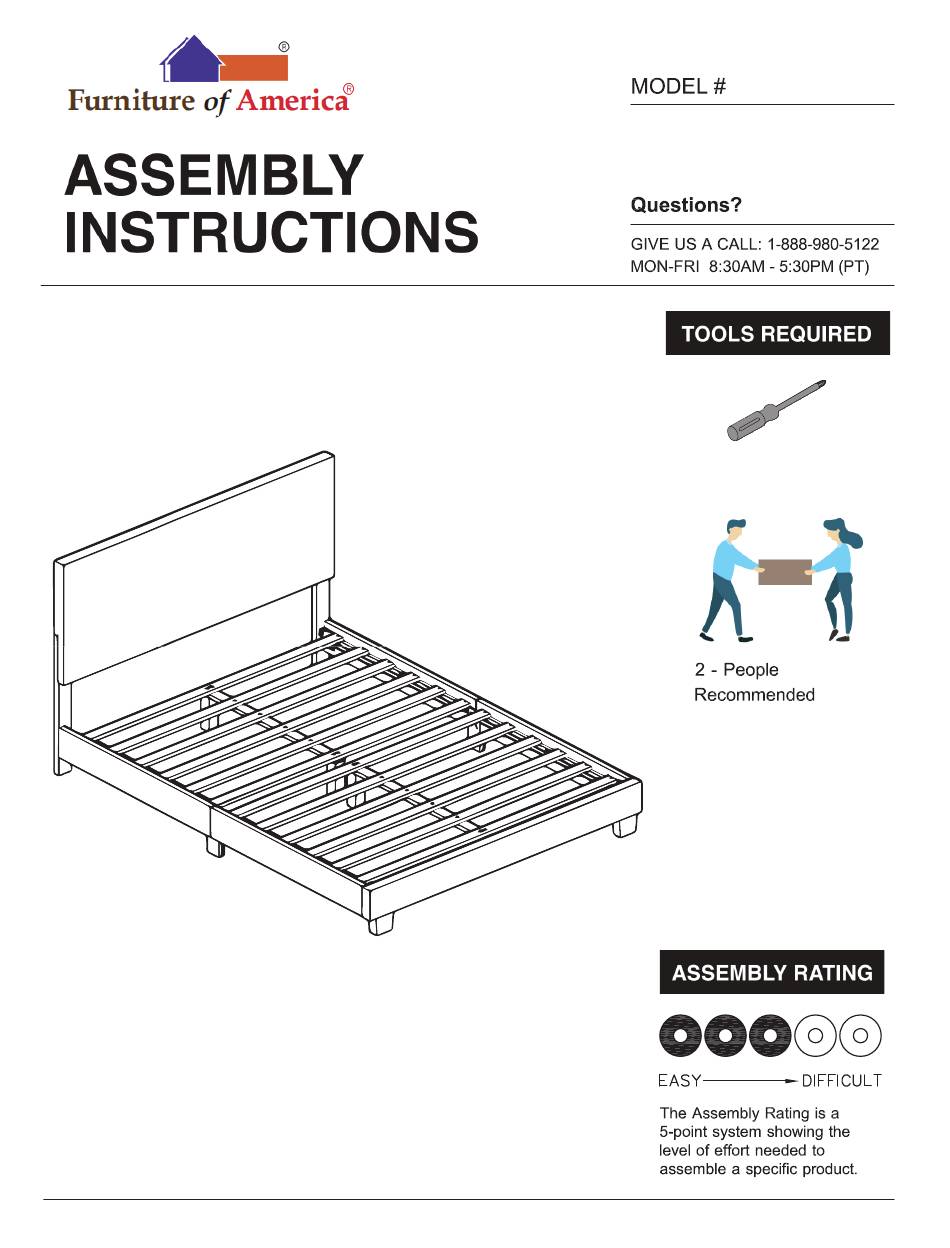

- Page 1 NX7004 Screwdriver (Not included) VERSION #23-11-08...
- Page 5 PARTS HEADBOARD HEADBOARD HEADBOARD SIDE RAIL (Left) LEG (Left) LEG (Right) 1 pc. 2 pcs. 1 pc. 1 pc. SIDE RAIL (Right) FOOTBOARD CENTER LEG BED LEG 2 pcs. 1 pc. 4 pcs. 2 pcs. SR LEG CENTER RAIL SLAT 2 pcs.
- Page 6 HARDWARE ALLEN KEY M4 ALLEN KEY JCBC BOLT JCBC BOLT Long Ball Head M6 x 25mm M6 x 40mm 1 pc. 1 pc. 8 pcs. 6 pcs. JCBC BOLT WOOD SCREW M6 SPRING M6 FLAT M6 x 50mm M4 x 25mm WASHER WASHER 10 pcs.
- Page 7 ASSEMBLY INSTRUCTIONS Attach the side rail leg (#7) to side rail (#3L/ R) and secure by using Bolts (#C). Part #3L x 2pcs Part #3R x 2pcs Part #7 x 2pcs Hardware #A x 1pc Hardware #C x 8pcs Part #1 x 1pc Part #2L x 1pc Part #2R x 1pc Part #4 x 1pc...
- Page 8 ASSEMBLY INSTRUCTIONS Align the side rail (#3L/R) in between the Headboard (#1) and Footboard (#4) and secure by using the bolts found on the Headboard (#1) and Footboard (#4). Part #5 x 4pcs Part #8 x 2pcs Part #9 x 12pcs Hardware #A x 1 pc Hardware #E x 8pcs Align the Bed Slat (#9), Center...
- Page 9 ASSEMBLY INSTRUCTIONS Spread the Bed Slat (#9) in the frame and secure by using Screw (#F). Hardware #F x 32pcs...
