Summary of Contents for DARCHE KOZI Series

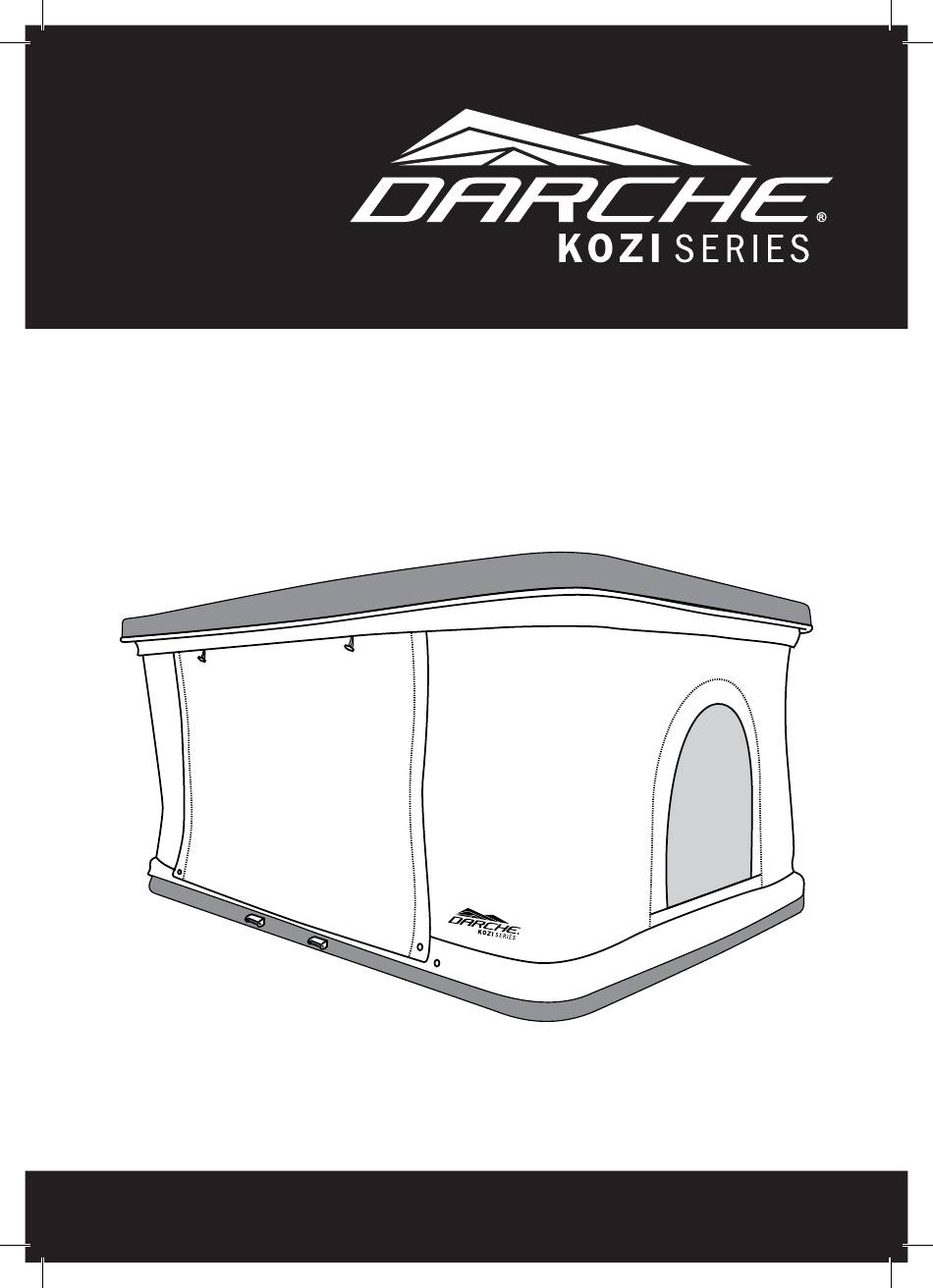

- Page 1 K O Z I R T T P O P U P I N S T R U C T I O N M A N U A L K S R 1 0 1 2 D A R C H E . C O M . A U...
- Page 2 BEFORE INSTALLATION AND USE PLEASE READ THE INSTRUCTIONS AND WARNINGS CAREFULLY Should you have any questions or require assistance, please contact your DARCHE® retailer or call our customer service line: 1300 367 695 Familiarise yourself with the product.
- Page 3 DO NOT CLIMB ON LADDER UNTIL CORRECT ANGLE IS ACHIEVED (approx. 75 degrees). DARCHE TAKES NO RESPONSIBILITY FOR THE FITMENT OF THE RTT TO ANY VEHICLE OR ROOF RACK. Darche Outdoor Gear - The wholesaler / manufacturer shall not be liable for special, indirect incidental or consequential damages.
- Page 4 I N S T R U C T I O N M A N U A L KOZI ROOF TOP TENT HARDWARE IDENTIFICATION CHART Vehicle Mounting Bolts Qty. 12 Mounting Plate Qty. 12 Nylock Nut Qty. 12 Spanner Qty. 1 Spring Pole Qty.
- Page 5 MOUNTING THE ROOF TOP TENT TO YOUR VEHICLE. When mounting your RTT to a vehicle, ensure that the pre-installed vehicle mounting channels run in the opposite direction to the bars of your roof rack or roof bars and that the tent in centred on the roof bars or roof rack if possible. It is recommended to mount the RTT to three roof bars as detailed in this instruction manual.
- Page 6 I N S T R U C T I O N M A N U A L STEP 5. After ensuring the RTT is positioned correctly, tighten all 12 bolts securely. It is important that you check all the mounting bolts and brackets periodically to ensure they are securely fastened to your base board and roof rack or after-market roof bars.
- Page 7 STEP 5. STEP 6. For your safety, ensure that the ladder is approximately Unzip the side access door to allow internal access. 75 degrees to the ground before climbing ladder. 45° 75° STEP 7. STEP 8. Insert the end of the spring pole into the mounting hole. Applying gentle force to the spring pole, place the eyelet on the storm flap over the spring pole hook.
- Page 8 I N S T R U C T I O N M A N U A L STEP 3. STEP 4. Close the rear of the tent by slowly pulling down the Extend the rear webbing straps and secure the hooks hoop strap at the corners to allow time for the air inside into the loop attached to the top section of the RTT.
- Page 9 Do not leave up for extended periods and do not leave unattended. To avoid the chance of personal injury and or property damage, DARCHE® recommends this RTT should not be erected or used in extreme weather conditions.
- Page 10 I N S T R U C T I O N M A N U A L NOTES:...
- Page 11 NOTES: D A R C H E . C O M . A U...
- Page 12 M A N U A L Designed and tested in Australia for Australian conditions. A brand by Charles Parsons. Telephone 1300 367 695 l Email: info@DARCHE.com.au 75 Heyington Avenue, Thomastown VIC 3074, Australia. DARCHE: LEADERS IN OUTDOOR DESIGN. PROUDLY AUSTRALIAN.
