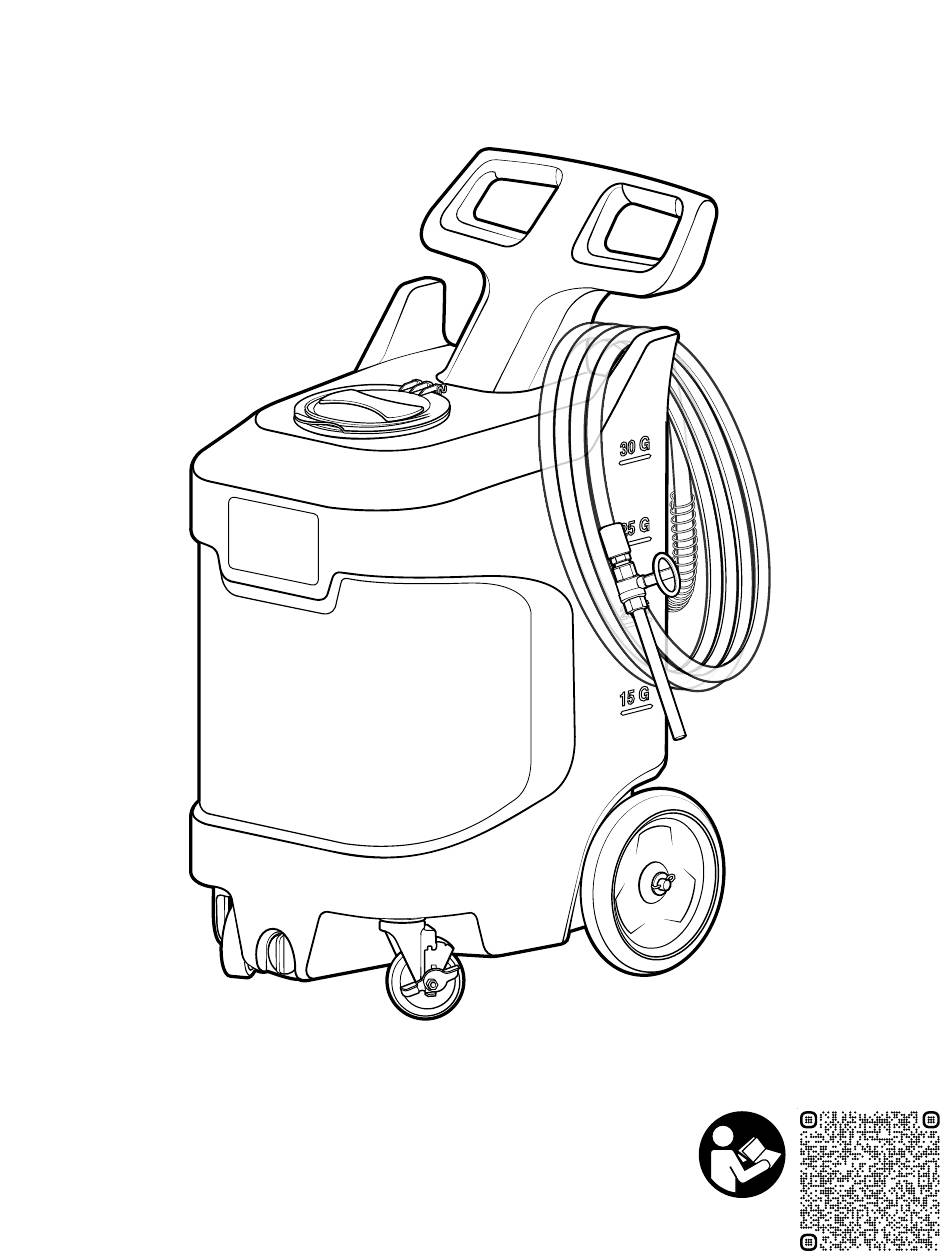

- Page 1 30 Gallon Transfer Unit Service Manual TU-30N READ ALL INSTRUCTIONS BEFORE USING OR SERVICING THIS UNIT. KEEP THIS MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS. Scan this code for English (Original Instructions) service manual...
- Page 2 Always flush the unit with fresh water thoroughly when switching from an alkaline to an acid or an acid to an alkaline. Model: TU-30N V20250106 • Page 2 of 12...
-
Page 3: Protect The Environment
• Crescent wrench (2x) • #2 Phillips head screwdriver • ⁷/16 in. (11 mm) open-ended wrench • #3 Phillips head screwdriver • Flat head screwdriver • Hose cutters • Thread seal tape • Knife Model: TU-30N V20250106 • Page 3 of 12... - Page 4 50 psi (3.4 bar). If the air gauge reads more or less than 50 psi (3.4 bar), adjust the pressure by turning the knob on the top of the air regulator. Model: TU-30N V20250106 • Page 4 of 12...
-
Page 5: Tank Assembly
- 4 in. wheel Drain plug assembly for portable 7 DPA units - includes gasket Swivel caster - stainless - 5 in. 8 CST5SS-L clearance - 4 in. wheel - with lock Model: TU-30N V20250106 • Page 5 of 12... - Page 6 Wheel - 10 in. - non-marking Flat washer for 5/8 in. od pipe or axle - 12 FW58 stainless steel - 0.64 in. id x 1.2 in. od WHLA-AXL1812 x 0.05 in. thk Model: TU-30N V20250106 • Page 6 of 12...
-
Page 7: Back Plate Assembly
- black bowl 1/2 in. id clear braid hose - PVC - 8 H12CL-CB available per ft. Hose barb - stainless steel - 9 HBSS1212 1/2 in. MPT x 1/2 in. barb Model: TU-30N V20250106 • Page 7 of 12... - Page 8 Stainless steel union - ¼ in. FPT Tsunami water separator/air dryer - 10 WS-20CFM 20 CFM - 1/ 4 in. FPT ports Air fitting ¼ MPT x plug - nickel-plated 11 AP14 brass WSA-20CFM* *Optional assembly sold separately Model: TU-30N V20250106 • Page 8 of 12...
- Page 9 1/ 4 in. NPT x 1/ 4 in. NPSM 8 SSSFN12 Serrated stainless steel flange nut - 1/2 in. Air fitting ¼ MPT x plug - nickel- 9 AP14 plated brass Not included with assembly RGA-R25-PSP Model: TU-30N V20250106 • Page 9 of 12...
-
Page 10: Suction Assembly
- 1/2 in. MPT x 1/2 in. barb Hex head poly bushing 3/ 4 MPT 6 HHPB3412 x 1/2 FPT Ball valve - PVC - 3/ 4 NPT to 7 BVPVC34MF 3/ 4 FNPT - Buna seal SCTNA-TU Model: TU-30N V20250106 • Page 10 of 12... -
Page 11: Hose Assembly
1/2 in. id clear braid hose - PVC - available 3 H12CL-CB per ft. AKSS12: Stainless anti-kink spring for 1/2 in. hose Item number Description 4 AKSS12 SS anti-kink spring for 1/2 in. hose AKSS12 HA12CL-15-CB Model: TU-30N V20250106 • Page 11 of 12... - Page 12 - 27 in. long Hose barb - stainless steel - 1/2 in. MPT x 10 HBSS1212 1/2 in. barb Screw band clamp - stainless steel - 11 SSC12 for 1/2 in. hose Model: TU-30N V20250106 • Page 12 of 12...
