Foamit SP-BP-30N Service Manual

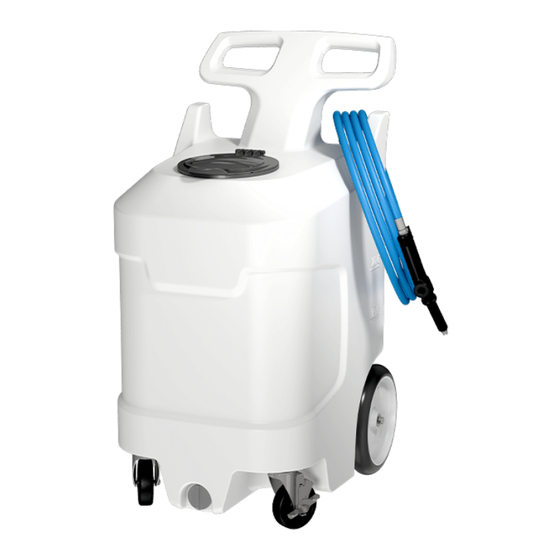

30 gallon battery powered spray unit
Hide thumbs Also See for SP-BP-30N:

Advertisement

Table of Contents

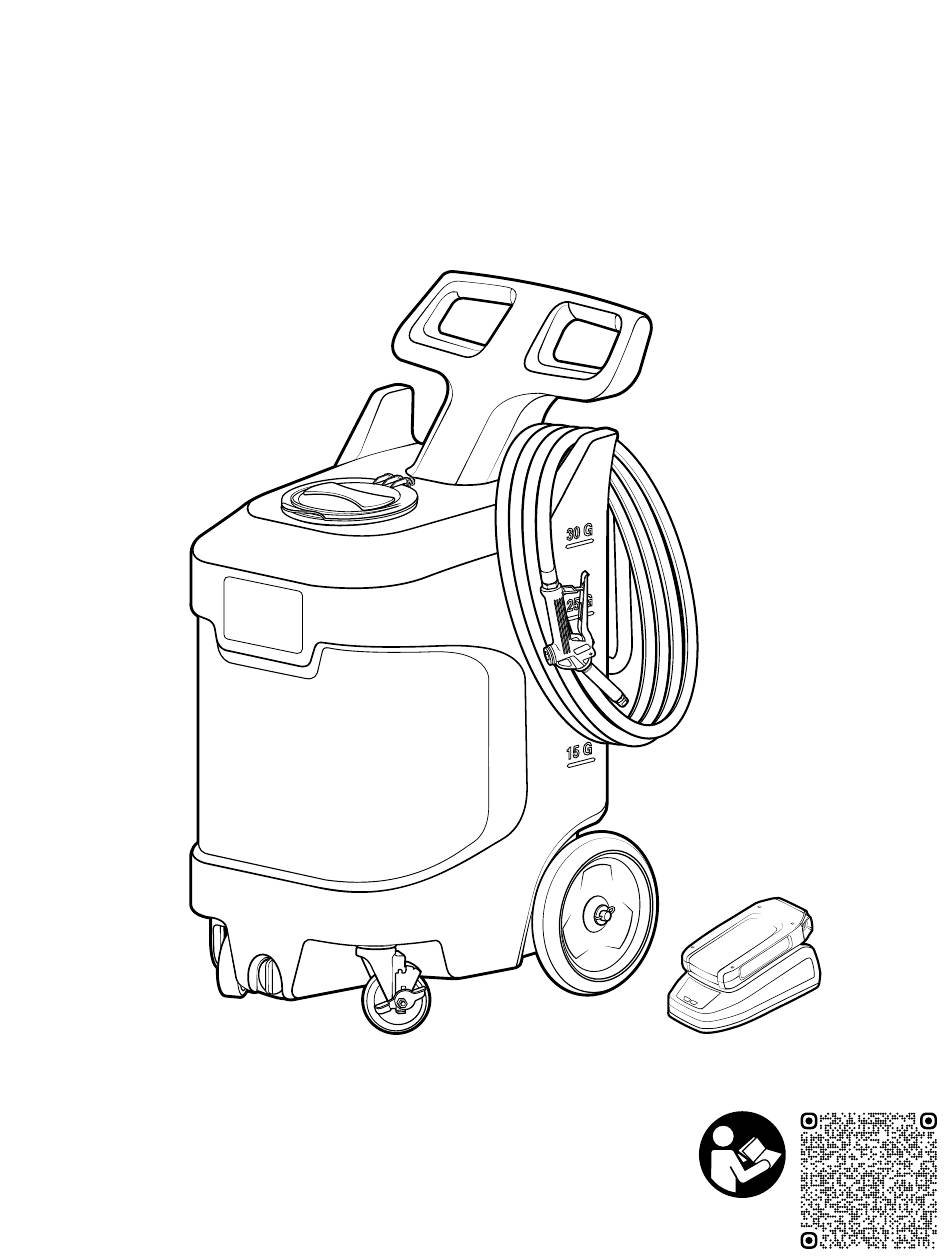

30 Gallon Battery Powered
Spray Unit
Service Manual
SP-BP-30N
READ ALL INSTRUCTIONS BEFORE USING OR
SERVICING THIS UNIT. KEEP THIS MANUAL IN A
LOCATION THAT IS READILY AVAILABLE TO USERS
AND SERVICE TECHNICIANS.
English (Original Instructions)
Scan this code for
service manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-BP-30N and is the answer not in the manual?

Questions and answers

Related Manuals for Foamit SP-BP-30N

Summary of Contents for Foamit SP-BP-30N

  • Page 1 30 Gallon Battery Powered Spray Unit Service Manual SP-BP-30N READ ALL INSTRUCTIONS BEFORE USING OR SERVICING THIS UNIT. KEEP THIS MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS. Scan this code for English (Original Instructions)
  • Page 2 When not in use, store unit indoors in a cool, dry location. Keep unit away from unauthorized users. To prevent premature battery failure, do not store battery in a depleted state for long periods of time. Model: SP-BP-30N V20240606 • Page 2 of 13...
  • Page 3 Protect the Environment Please dispose of packaging materials, old machine components, and hazardous fluids in an environmentally safe way according to local waste disposal regulations Model: SP-BP-30N V20240606 • Page 3 of 13...
  • Page 4 • Crescent wrench (2x) • #2 Phillips head screwdriver • 1/ 4 in. (7 mm) hex bit • #3 Phillips head screwdriver • Flat head screwdriver • Hose cutters • Thread seal tape • Knife Model: SP-BP-30N V20240606 • Page 4 of 13...
  • Page 5 • A faulty pump or compressor may need to be replaced. Battery/charger fault light is • Refer to the separate manuals supplied with the battery and charger for more flashing information regarding indicator and fault lights. Model: SP-BP-30N V20240606 • Page 5 of 13...

  • Page 6: Tank Assembly

    - 4 in. wheel Drain plug assembly for portable 7 DPA units - includes gasket Swivel caster - stainless - 5 in. 8 CST5SS-L clearance - 4 in. wheel - with lock Model: SP-BP-30N V20240606 • Page 6 of 13...
  • Page 7 Wheel - non-marking - 10 in. Flat washer for 5/8 in. od pipe or axle - 11 FW58 stainless - 0.64 in. id x 1.2 in. od x 0.05 in. thk WHLA-AXL1812 Model: SP-BP-30N V20240606 • Page 7 of 13...

  • Page 8: Back Plate Assembly

    Molex connector In-line strainer - ⅜ barb - EPDM 9 STR38-IL gasket - 20 mesh SS - black bowl ⅜ in. blue hose - hybrid TPE - 10 H38BL-F available per ft. Model: SP-BP-30N V20240606 • Page 8 of 13...
  • Page 9 Lithium ion battery - 24V 4Ah Lithium ion battery charger - 8 BLI-24V-CHRGR 24V - includes NA power cord Note: Refer to battery and charger user manuals for more information. *not included with backplate assembly Model: SP-BP-30N V20240606 • Page 9 of 13...
  • Page 10 Pressure switch - 1/ 4 quick fit - 2 PS14QFV-55 55 psi - Viton membrane Quick fit - 1/ 4 MPT x 1/ 4 od tube - 3 QF14P polypropylene PSHA-BP Model: SP-BP-30N V20240606 • Page 10 of 13...
  • Page 11 4 HBSSEL1438 barb elbow Hex head poly bushing ¾ MPT 5 HHPB3414 x ¼ FPT Ball valve - PVC - 3/ 4 NPT to 3/ 4 FNPT 6 BVPVC34MF EPDM seal SCTNA-PF-BP Model: SP-BP-30N V20240606 • Page 11 of 13...

  • Page 12: Hose Assembly

    2 SSC38 Stainless screw band clamp for 3/8 in. hose 3/8 in. blue* hose - hybrid TPE - available 3 H38BL-F per ft. * Additional colors available, see datasheet for options. HA38BL-12 Model: SP-BP-30N V20240606 • Page 12 of 13...

  • Page 13: Wand Assembly

    - gray handle with red clip - 3 PSG12 316SS internal spring - includes 2x o-ring 4 HBSS1238 Stainless hose barb ½ MPT x 3/8 barb Screw band clamp for 3/8 in. hose - 5 SSC38 stainless PSGA384-ST2510 Model: SP-BP-30N V20240606 • Page 13 of 13...
