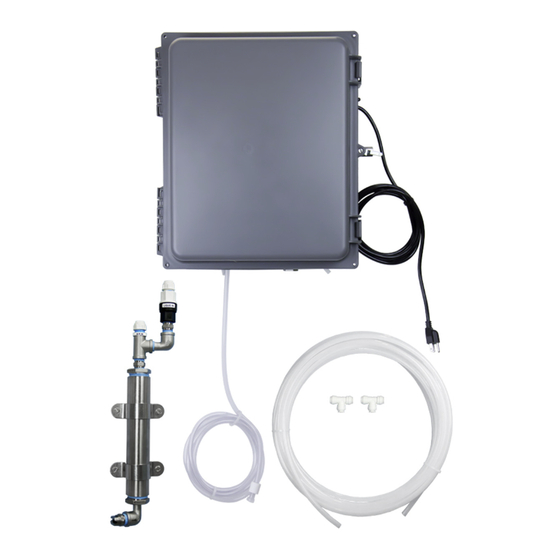

- Page 1 USER MANUAL MODEL NUMBER: DS4K DS4V AND RELATED UNITS Twin-Line Concentrate Doorway Foam Unit English (Original Instructions)
-
Page 2: Protect The Environment
Examples: • Read all instructions before installing or operating unit. • DS4 (standard unit with Santoprene pump seals and one • Always wear appropriate personal protective equipment nozzle) (PPE) when operating or servicing unit. -
Page 3: System Overview
ST80100SS (also includes an extra ST8060-12SS tip to retrofit an existing nozzle) Tubing (H12CP) 50 ft. (15.2 m) 50 ft. (15.2 m) 50 ft. (15.2 m) included: Tee fittings (QFT12) included: Model No.: DS4, DS4K, DS4V Page 3 of 10 | 20180404... -
Page 4: Specifications
Designed for use with 1/2 in. (12.7 mm) outside diameter tubing between control box and nozzle(s) *Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings. Model No.: DS4, DS4K, DS4V Page 4 of 10 | 20180404... -
Page 5: Installation Instructions
GFCI protected 120 VAC power outlet. Connecting the inlet to the stem Connecting the inlet to one of the tee creates even discharge side of the tee creates uneven from each side discharge Model No.: DS4, DS4K, DS4V Page 5 of 10 | 20180404... - Page 6 3. Repeat the above steps for the ON time setting. 4. Timer indicator light will appear red when unit output is off. The indicator turns green when output is on. Model No.: DS4, DS4K, DS4V Page 6 of 10 | 20180404...
-
Page 7: Maintenance Instructions
The water pressure should be set at 30 psi (2.1 bar) when deadheaded. Setting the pressure higher or lower may damage the unit or cause it to malfunction. Model No.: DS4, DS4K, DS4V Page 7 of 10 | 20180404... -
Page 8: Control Box Assembly
WR1A SN1414 PBFT-PP TR120DS-A BRKT-P56 S1012-HL P56, P56K or P56V SN1414 HBSSEL1438 AG100 PN1238 ACV1 ACV1D38 CV38-AP SN1414 NV14 HBELF3838 SSE12 P203CT WRG14 HBF3812 WR12SS FWP78 SSA12 R25DT QF1212 Model No.: DS4, DS4K, DS4V Page 8 of 10 | 20180404... -
Page 9: Nozzle Assembly
WR15G34 WATER PRESSURE REGULATOR - 3/4in FGH BY 3/4in HHSB34GH12 MPT Body ABS, internal parts, SS, PP and Santo Conversion kit to upgrade to current water inlet: CK-WR12SS. SSA12 Model No.: DS4, DS4K, DS4V Page 9 of 10 | 20180404... - Page 10 18/3 POWER CORD WITH GROUNDED PLUG-9FT LONG- BLACK HB5638 HOSE BARB FOR P56 PUMP WRG14 WATER PRESSURE REGULATOR GAUGE FOR WR12SS HB5638K HOSE BARB FOR P56K PUMP HB5638V HOSE BARB FOR P56V PUMP Model No.: DS4, DS4K, DS4V Page 10 of 10 | 20180404...
