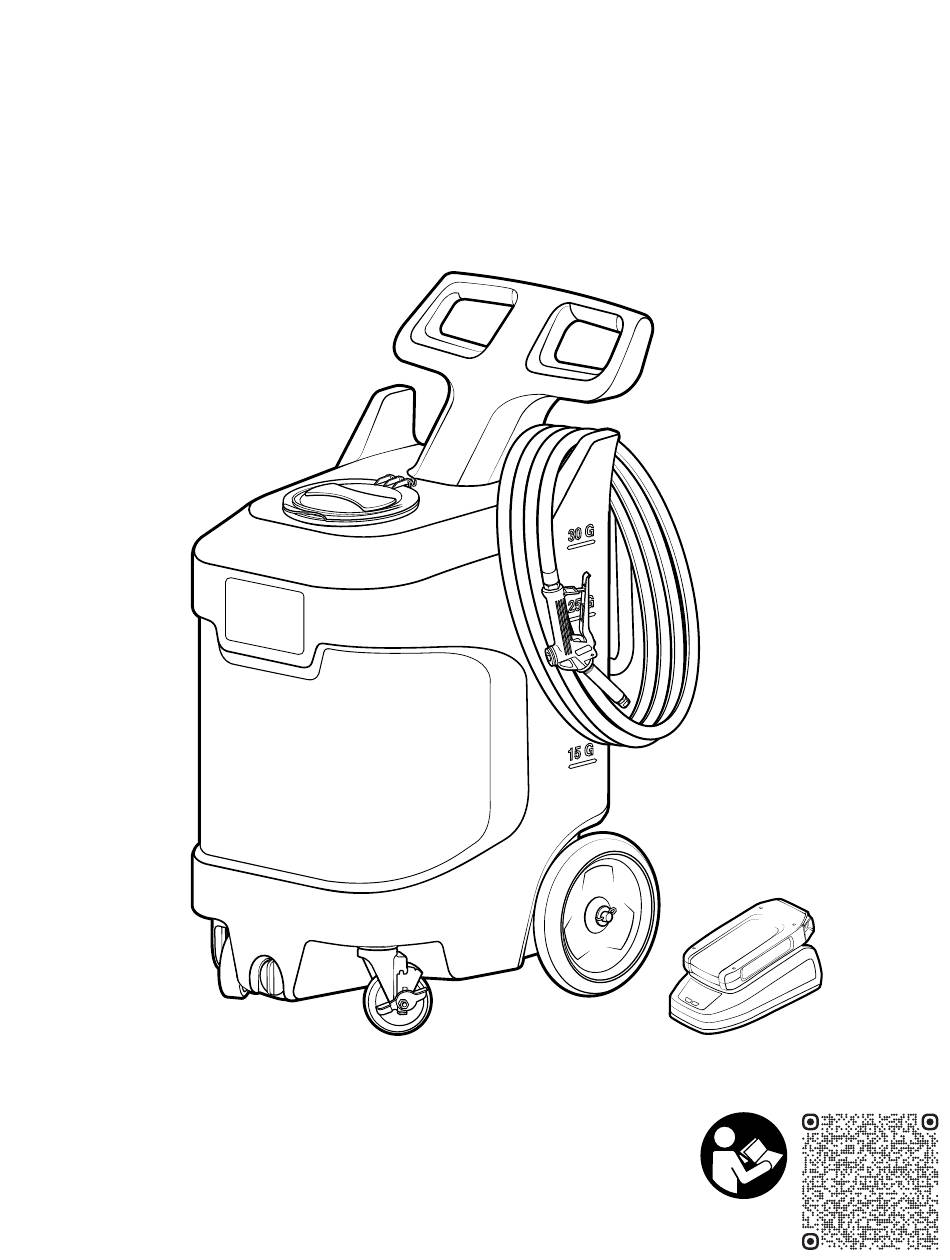

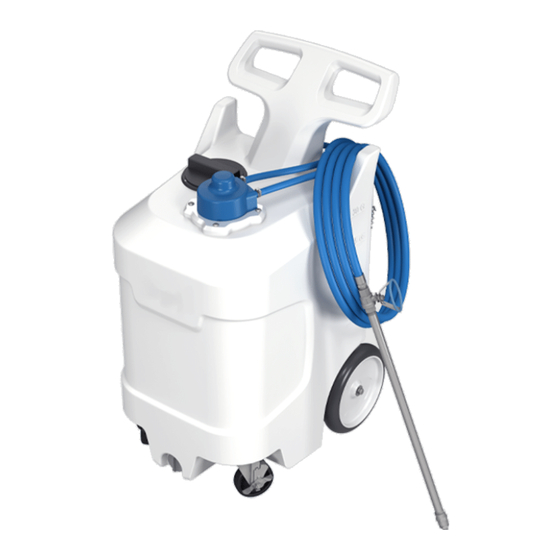

- Page 1 30 Gallon Battery Powered Foam Unit Service Manual FI-BP-30N READ ALL INSTRUCTIONS BEFORE USING OR SERVICING THIS UNIT. KEEP THIS MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS. Scan this code for English (Original Instructions)
- Page 2 When not in use, store unit indoors in a cool, dry location. Keep unit away from unauthorized users. To prevent premature battery failure, do not store battery in a depleted state for long periods of time. Model: FI-BP-30N V20240426 • Page 2 of 14...
-
Page 3: Protect The Environment
Protect the Environment Please dispose of packaging materials, old machine components, and hazardous fluids in an environmentally safe way according to local waste disposal regulations Model: FI-BP-30N V20240426 • Page 3 of 14... - Page 4 • Crescent wrench (2x) • #2 Phillips head screwdriver • 1/ 4 in. (7 mm) hex bit • #3 Phillips head screwdriver • Flat head screwdriver • Hose cutters • Thread seal tape • Knife Model: FI-BP-30N V20240426 • Page 4 of 14...
- Page 5 • A faulty pump or compressor may need to be replaced. Battery/charger fault light is • Refer to the separate manuals supplied with the battery and charger for more flashing information regarding indicator and fault lights. Model: FI-BP-30N V20240426 • Page 5 of 14...
-
Page 6: Tank Assembly
- 4 in. wheel Drain plug assembly for portable 7 DPA units - includes gasket Swivel caster - stainless - 5 in. 8 CST5SS-L clearance - 4 in. wheel - with lock Model: FI-BP-30N V20240426 • Page 6 of 14... - Page 7 Wheel - non-marking - 10 in. Flat washer for 5/8 in. od pipe or axle - 11 FW58 stainless - 0.64 in. id x 1.2 in. od x 0.05 in. thk WHLA-AXL1812 Model: FI-BP-30N V20240426 • Page 7 of 14...
-
Page 8: Back Plate Assembly
Flat washer for #8 screw - 14 FW8 stainless - 0.17 in. id x 0.63 in. od x 0.07 in. thk ⅜ in. blue hose - hybrid TPE - 15 H38BL-F available per ft. Model: FI-BP-30N V20240426 • Page 8 of 14... - Page 9 Lithium ion battery - 24V 4Ah Lithium ion battery charger - 9 BLI-24V-CHRGR 24V - includes NA power cord Note: Refer to battery and charger user manuals for more information. *not included with backplate assembly Model: FI-BP-30N V20240426 • Page 9 of 14...
- Page 10 Stainless hose barb ¼ MPT x 1/ 4 barb Needle valve - ¼ in. NPT - 7 NV14 includes black knob 1/ 4 in. male NPT muffler - 8 MFLRPE14 polyethylene PSHA-BP NVA-NV14-BP Model: FI-BP-30N V20240426 • Page 10 of 14...
- Page 11 24 VDC electric air compressor 4 AC24VDC-1.4-MLX 1.4 CFM open flow - 80 psi max - includes Molex connector 1/ 4 in. blue hose - hybrid TPE - 5 H14BL-F available per ft. ACA-AC24VDC-1.4 Model: FI-BP-30N V20240426 • Page 11 of 14...
- Page 12 4 HBSSEL1438 barb elbow Hex head poly bushing ¾ MPT 5 HHPB3414 x ¼ FPT Ball valve - PVC - 3/ 4 NPT to 3/ 4 FNPT 6 BVPVC34MF EPDM seal SCTNA-PF-BP Model: FI-BP-30N V20240426 • Page 12 of 14...
-
Page 13: Hose Assembly
2 SSC38 Stainless screw band clamp for 3/8 in. hose 3/8 in. blue* hose - hybrid TPE - available 3 H38BL-F per ft. * Additional colors available, see datasheet for options. HA38BL-12 Model: FI-BP-30N V20240426 • Page 13 of 14... - Page 14 - gray handle with red clip - 12 PSG12 316SS internal spring - includes 2x o-ring 13 HBSS1238 Stainless hose barb ½ MPT x 3/8 barb Stainless screw band clamp for 3/8 in. 14 SSC38 hose Model: FI-BP-30N V20240426 • Page 14 of 14...
