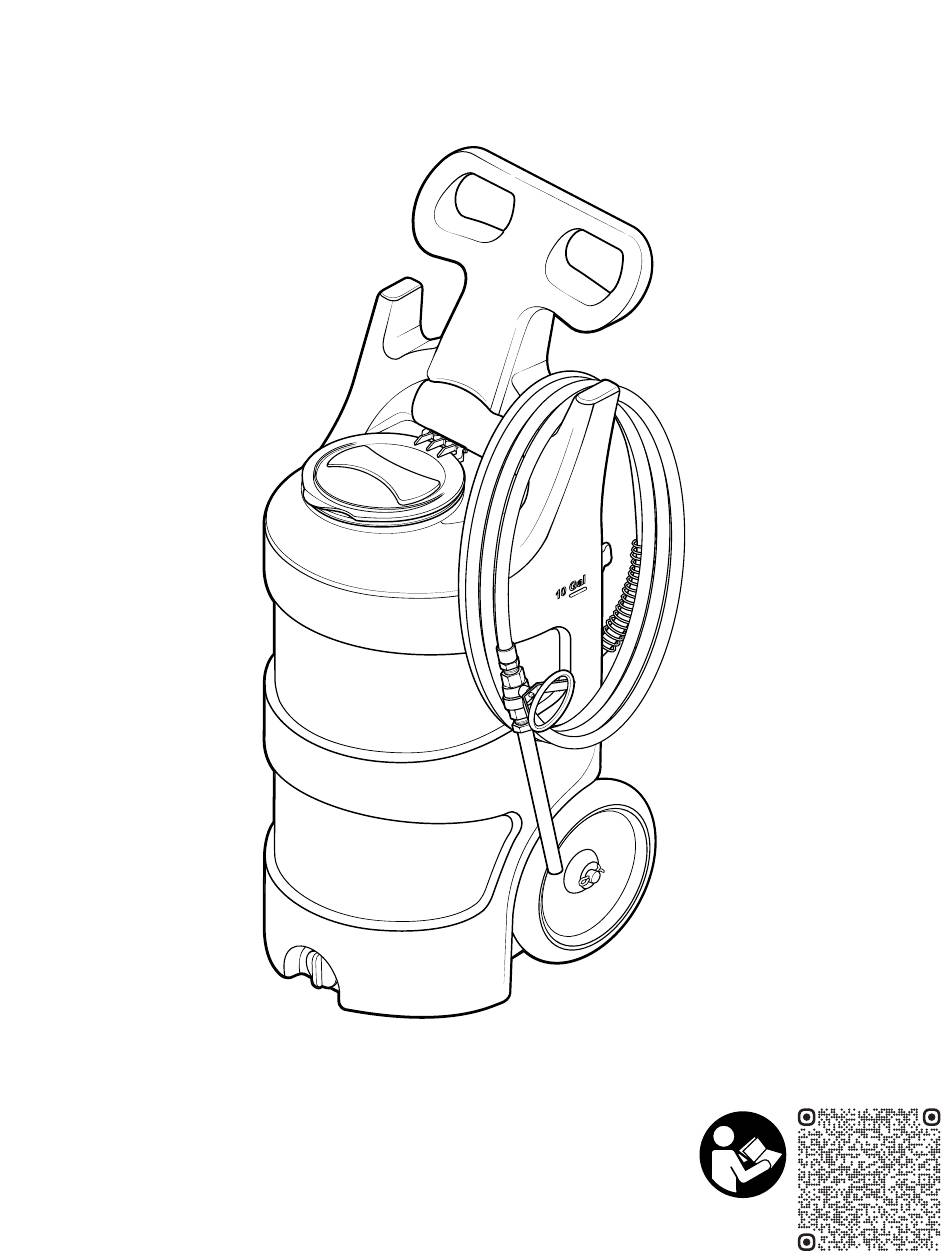

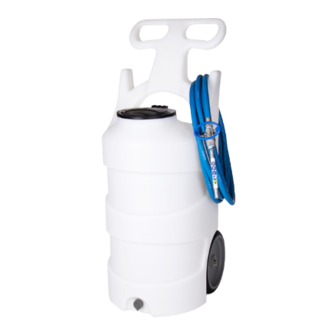

10 Gallon Foam Unit
Service Manual
FI-10N
READ ALL INSTRUCTIONS BEFORE USING OR
SERVICING THIS UNIT. KEEP THIS MANUAL IN A
LOCATION THAT IS READILY AVAILABLE TO USERS
AND SERVICE TECHNICIANS.
English (Original Instructions)
Scan this code for
service manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FI-10N and is the answer not in the manual?

Questions and answers

Related Manuals for Foamit FI-10N

Summary of Contents for Foamit FI-10N

  • Page 1 10 Gallon Foam Unit Service Manual FI-10N READ ALL INSTRUCTIONS BEFORE USING OR SERVICING THIS UNIT. KEEP THIS MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS. Scan this code for English (Original Instructions) service manual...
  • Page 2 Always flush the unit with fresh water thoroughly when switching from an alkaline to an acid or an acid to an alkaline. Model: FI-10N V20240129 • Page 2 of 13...

  • Page 3: Protect The Environment

    • Crescent wrench (2x) • #2 Phillips head screwdriver • ⁷/16 in. (11 mm) open-ended wrench • #3 Phillips head screwdriver • Flat head screwdriver • Hose cutters • Thread seal tape • Knife Model: FI-10N V20240129 • Page 3 of 13...
  • Page 4 6. Replace the mixing mesh and screen into the back of the tee. Screw the stainless hose barb back into the tee. Note: It is recommended to use a pipe thread sealant when reinstalling the stainless hose barb back into the tee fitting. Model: FI-10N V20240129 • Page 4 of 13...

  • Page 5: Tank Assembly

    * Additional colors available, see datasheet for options. Item number Description 5 TNK-10N Tank - 10 gallon natural - portable Drain plug assembly for portable 6 DPA units - includes gasket Model: FI-10N V20240129 • Page 5 of 13...
  • Page 6 Wheel - 10 in. - non-marking Flat washer for 5/8 in. od pipe or axle - 12 FW58 stainless steel - 0.64 in. id x 1.2 in. od x 0.05 in. thk WHLA-AXL14 Model: FI-10N V20240129 • Page 6 of 13...

  • Page 7: Back Plate Assembly

    - 20 mesh SS - black bowl ¼ in. blue hose - hybrid TPE - 9 H14BL-F available per ft. ⅜ in. blue hose - hybrid TPE - 10 H38BL-F available per ft. Model: FI-10N V20240129 • Page 7 of 13...
  • Page 8 Stainless steel union - ¼ in. FPT Tsunami water separator/air dryer - 9 WS-20CFM 20 CFM - 1/ 4 in. FPT ports Air fitting ¼ MPT x plug - nickel-plated 10 AP14 brass WSA-20CFM* *Optional assembly sold separately Model: FI-10N V20240129 • Page 8 of 13...
  • Page 9 Item number Description Stainless tee ½ FPT x ⅜ barb - 6 SST12HB38 no mixing media Mixing assembly - portable foam - 7 MXA- PF includes SS mixing media and screen NVA-NV14-PF SST12HB38A-MX Model: FI-10N V20240129 • Page 9 of 13...
  • Page 10 Bulkhead adapter - stainless - ¼ NPT 10 SSA14BKH x ¼ NPSM 11 SSSFN12 Serrated flange nut - stainless - ½ in. Air fitting ¼ MPT x plug - nickel- 12 AP14 plated brass RGA-R25-PF Model: FI-10N V20240129 • Page 10 of 13...
  • Page 11 1/ 4 in. MPT x 3/8 in. barb Hex head poly bushing ¾ MPT 6 HHPB3414 x ¼ FPT Ball valve - PVC - 3/ 4 NPT to 3/ 4 FNPT 7 BVPVC34MF Buna seal SCTNA-PF Model: FI-10N V20240129 • Page 11 of 13...

  • Page 12: Hose Assembly

    * Additional colors available, see datasheet for options. AKSS12: Stainless anti-kink spring for ½ in. hose Item number Description 4 AKSS12 Stainless anti-kink spring for ½ in. hose AKSS12 HA12BL-20 Model: FI-10N V20240129 • Page 12 of 13...
  • Page 13 Stainless hex nipple ½ MPT x ½ MPT 14 BVSS12 Stainless ball valve - 1/2 in. NPT 15 HBSS1212 Stainless hose barb ½ MPT x ½ barb 16 SSC12 Stainless screw band clamp for ½ in. hose Model: FI-10N V20240129 • Page 13 of 13...
