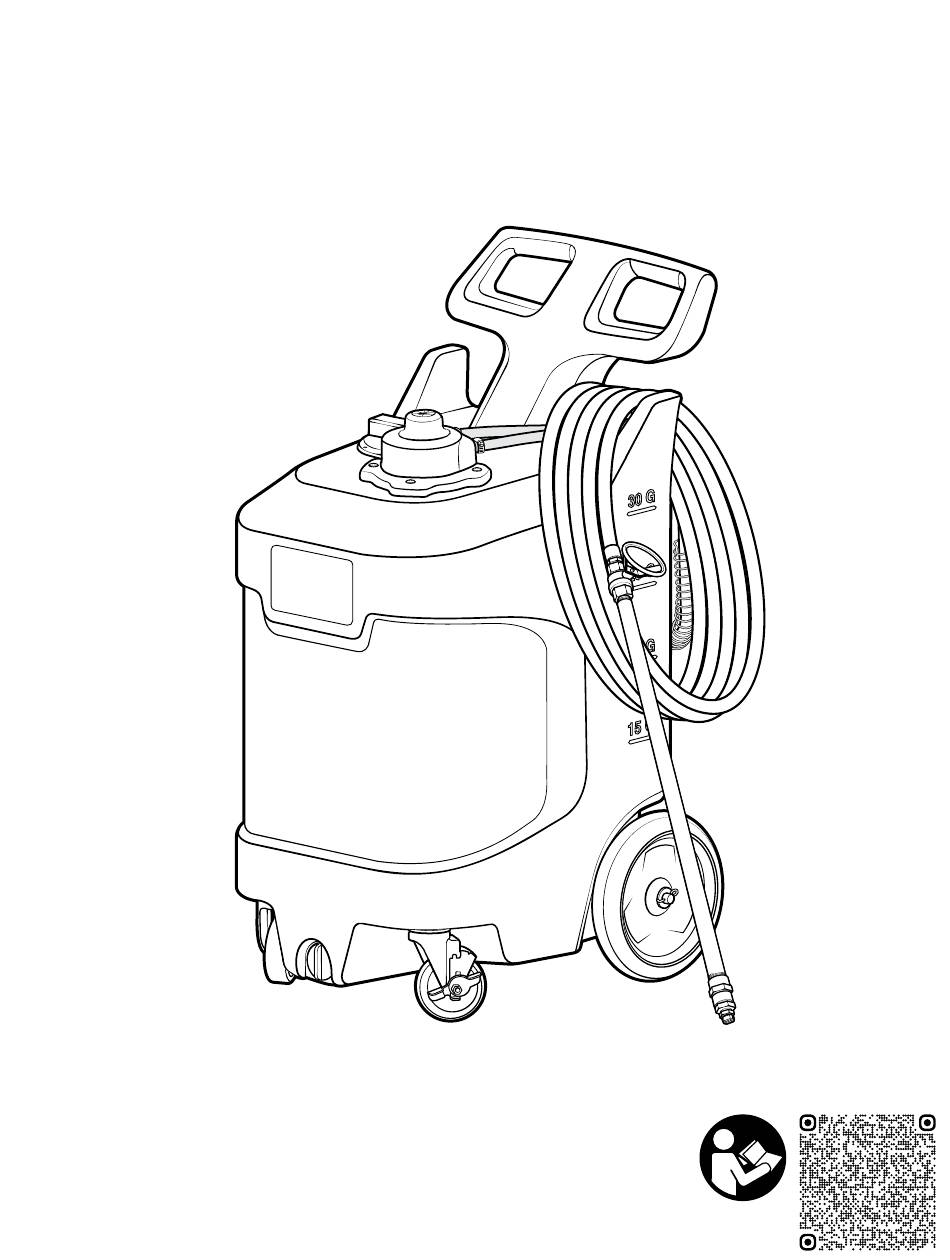

30 Gallon Gel Unit
With Agitator
Operation Manual
GI-30N-AM
READ ALL INSTRUCTIONS BEFORE USING OR
SERVICING THIS UNIT. KEEP THIS MANUAL IN A
LOCATION THAT IS READILY AVAILABLE TO USERS
AND SERVICE TECHNICIANS.
English (Original Instructions)
Scan this code for
operation manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GI-30N-AM and is the answer not in the manual?

Questions and answers

Related Manuals for Foamit GI-30N-AM

Summary of Contents for Foamit GI-30N-AM

  • Page 1 30 Gallon Gel Unit With Agitator Operation Manual GI-30N-AM READ ALL INSTRUCTIONS BEFORE USING OR SERVICING THIS UNIT. KEEP THIS MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS. Scan this code for English (Original Instructions)
  • Page 2 Always flush the unit with fresh water thoroughly when switching from an alkaline to an acid or an acid to an alkaline. Model: GI-30N-AM V20231014 • Page 2 of 8...
  • Page 3 If needed, install an air dryer before the unit. PROTECT THE ENVIRONMENT Please dispose of packaging materials, old machine components, and hazardous fluids in an environmentally safe way according to local waste disposal regulations Model: GI-30N-AM V20231014 • Page 3 of 8...

  • Page 4: Product Overview

    Wheel type one with lock *Rates given are based on chemical with viscosity of water and factory air pressure settings. These rates can vary based on viscosity of product and fan tip size. Model: GI-30N-AM V20231014 • Page 4 of 8...

  • Page 5: Product Components

    Product Components Get to know the GI-30N-AM components that you will need to use, adjust or assemble. Back plate assembly • Inside view 1. Quick-change pump 2. Check valve 3. Needle valve 4. Air pressure gauge 5. Air regulator 6. Back plate thumb nuts 7.
  • Page 6 15. Discharge ball valve 10. Solution tank 16. Discharge wand 11. Lid 17. Air inlet valve 12. Prop and shaft 18. Needle valve 13. Drain plug 19. Air fitting 14. Discharge hose 20. Suction valve Model: GI-30N-AM V20231014 • Page 6 of 8...

  • Page 7: Using Your Unit

    13. Close ball valve after all pressure has been relieved. Store unit with discharge ball valve and air inlet valve closed. 14. Before using unit with another chemistry, thoroughly flush with water. Model: GI-30N-AM V20231014 • Page 7 of 8...

  • Page 8: Maintenance

    To service your unit, refer to the service manual which includes: • Troubleshooting procedures. • Detailed parts breakdowns and illustrations. • Part numbers of serviceable components and assemblies. Scan this code for service manual Model: GI-30N-AM V20231014 • Page 8 of 8...
  • Page 9 30 Gallon Gel Unit With Agitator Service Manual GI-30N-AM READ ALL INSTRUCTIONS BEFORE USING OR SERVICING THIS UNIT. KEEP THIS MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS. Scan this code for English (Original Instructions)
  • Page 10 Always flush the unit with fresh water thoroughly when switching from an alkaline to an acid or an acid to an alkaline. Model: GI-30N-AM V20231014 • Page 2 of 12...
  • Page 11 • Crescent wrench (2x) • #2 Phillips head screwdriver • ⁷/16 in. (11 mm) open-ended wrench • #3 Phillips head screwdriver • Flat head screwdriver • Hose cutters • Thread seal tape • Knife Model: GI-30N-AM V20231014 • Page 3 of 12...
  • Page 12 50 psi (3.4 bar). If the air gauge reads more or less than 50 psi (3.4 bar), adjust the pressure by turning the knob on the top of the air regulator. Model: GI-30N-AM V20231014 • Page 4 of 12...

  • Page 13: Tank Assembly

    - 4 in. wheel Drain plug assembly for portable 6 DPA units - includes gasket Swivel caster - stainless - 5 in. 7 CST5SS-L clearance - 4 in. wheel - with lock Model: GI-30N-AM V20231014 • Page 5 of 12...
  • Page 14 Phillips - Vibra-Seal VLVA-PVCV34 10 W10 Wheel - non-marking - 10 in. Flat washer for ⅝ in. pipe - stainless - 11 FW58 0.687 id x 1.5 od x 0.07 thk WHLA-AXL1812 Model: GI-30N-AM V20231014 • Page 6 of 12...

  • Page 15: Back Plate Assembly

    ¼ in. blue hose - hybrid TPE - 8 H14BL-F available per ft. Stainless steel hose barb 1/2 FPT x 9 HBFSS1238 3/8 barb ⅜ in. blue hose - hybrid TPE - 10 H38BL-F available per ft. Model: GI-30N-AM V20231014 • Page 7 of 12...
  • Page 16 Stainless steel union - ¼ in. FPT Water separator - 20 CFM - ¼ in. FPT 14 WS-20CFM ports Air fitting ¼ MPT x plug - nickel- 15 AP14 plated brass WSA-20CFM* *Optional assembly sold separately Model: GI-30N-AM V20231014 • Page 8 of 12...
  • Page 17 Bulkhead adapter - stainless - ¼ NPT 10 SSA14BKH x ¼ NPSM 11 SSSFN12 Serrated flange nut - stainless - ½ in. Air fitting ¼ MPT x plug - nickel- 12 AP14 plated brass RGA-R25-PF Model: GI-30N-AM V20231014 • Page 9 of 12...

  • Page 18: Air Motor Assembly

    Coupling - 1/2 in. x 1/2 in. shafts - 9 CP1212 stainless GEL-PRP: Prop and shaft for gel air motor units - stainless Item number Description Prop and shaft for gel air motor 10 GEL-PRP units - stainless Model: GI-30N-AM V20231014 • Page 10 of 12...

  • Page 19: Hose Assembly

    * Additional colors available, see datasheet for options. AKSS12: Stainless anti-kink spring for 1/2 in. hose Item number Description 4 AKSS12 Stainless anti-kink spring for 1/2 in. hose AKSS12 HA12BL-30 Model: GI-30N-AM V20231014 • Page 11 of 12...

  • Page 20: Wand Assembly

    Spray tip - 15 degree fan - 1.0 GPM - 8 ST1510SS stainless - 1/ 4 MPT Spray tip - 25 degree fan - 2.0 GPM - 9 ST2520SS stainless - 1/ 4 MPT SSWA1224-ST-GEL Model: GI-30N-AM V20231014 • Page 12 of 12...
