Summary of Contents for Garlando Toorx RACE CROSS PRO

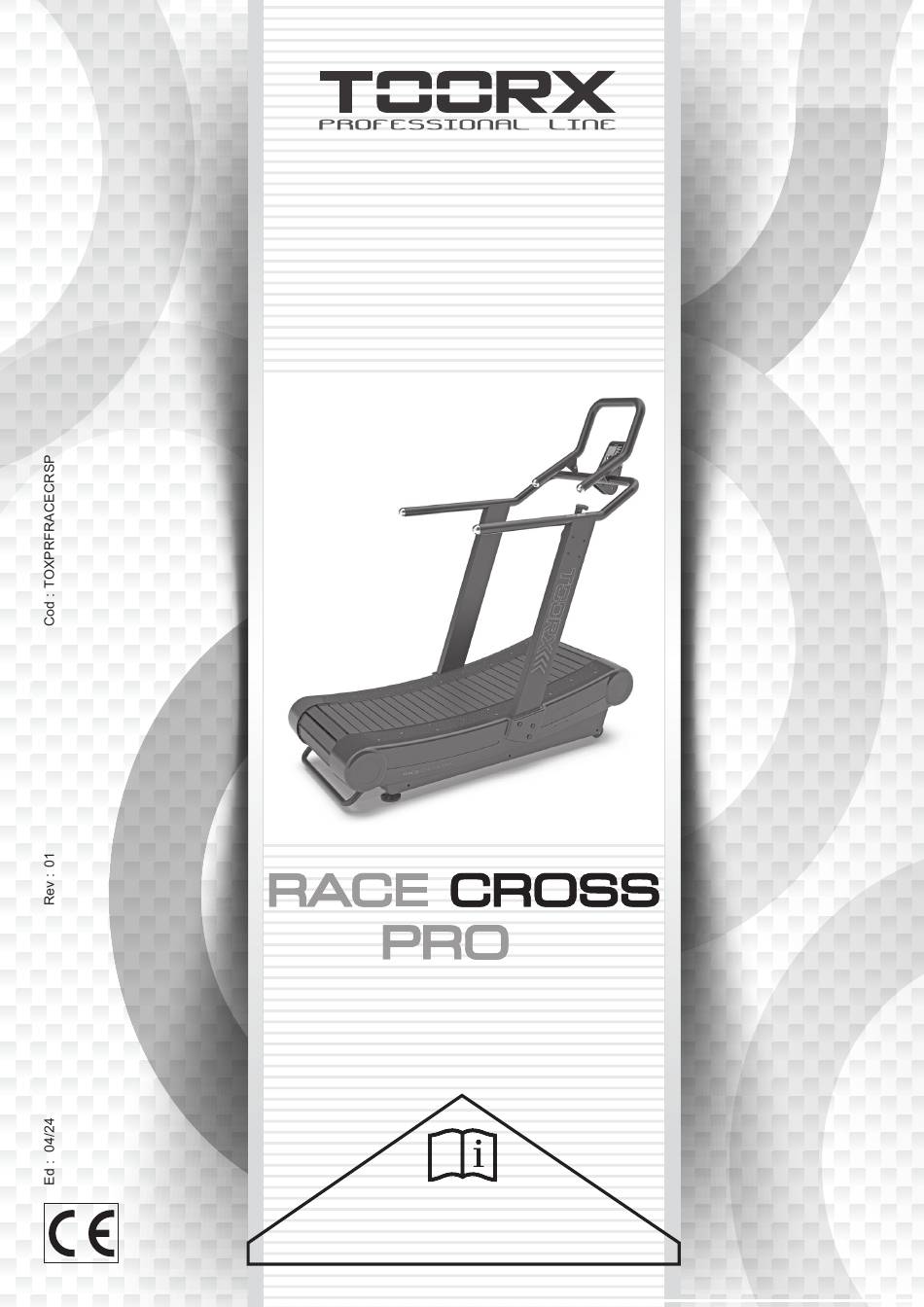

- Page 1 INSTRUCTION...
-
Page 2: Product Description
Product Description Display(A):Display ongoing exercise ,Model is equipped with display. Running Belt (B): Surface is polyurethane,which can ease the impact on the joints. Lateral Handle(C):When standing on treadmill or losing balance ,you can hold it to stand firm;when quick walking or running ,you can keep balance by it . Side upper boards (D):When the user is in danger or feel tired,he can put his feet on the boards for a short pause,in addition,it can be used as a tool for single foot exercise. -
Page 3: Installation Instructions
Installation Instructions A、Take down side boards (2)、side shells(1) (Figure 1) B、First fix the left column with six angle cylinder head screw 4 (M12*45), gasket 6 (Φ 12), spring mat 5 (Φ 12),then connect the left side data line of the column with the data line of the main frame. - Page 4 Instructions for use Hold the side handle,then step on the running belt from the back.View front ,then put the feet on both sides of the upper boards. Standing firm on the running belt and then begin to exercise. At the beginning of exercise, hold the handle to keep safety.After adaption ,release your hand from the handle which can improve the sense of balance and maintain the correct posture.
-
Page 5: Display Description
Display description 1. Key function 1.Used for switch Windows TIME、DISTANCE、CALORISE、 PULSE Select&Confirm/Erase 2.This key has functions of the confirmation choice, and (MODE/RESET) setting time confirmation. 3.Constant Press for 2 seconds to clean the input settings. Settings 1.Press one time will be added one time, constant press is set as quick adding. - Page 6 Enter motion picture： Boot into motion picture 1.Press Selection (MODE) key to choose (TIME)、(DISTANCE)、(CALORISE)、 (PULSE),Press the (SET) key to set the value,Confirm by pressing the Confirmation (MODE)key. 2.Inputting signal, time (TIME), distance (DST), and calories (CAL) to start counting. Note: When the display fades,Please replace the battery.
-
Page 7: Technical Data
Technical data Power Supply(Optional Adapter) N.Weight 145KG Max User Weight 180KG Noise Degree Below 80dB (A) Protection Level IP 20 Running Temperature From +5°C to +40°C Electrical insulation level II Level 1800*820*1700mm Product Dimension（L*W*H） 1850*900*570mm Package Dimension（L*W*H） 11 / 14... - Page 8 Movement and adjustment of equipment The equipment is equipped with two fixed front wheels.If need to move the equipment, just lift it slightly and move forward or backward. As the equipment is heavy, you had better to find a few people to move together. If the floor condition isnot suitable to use wheel to move, lifting and transporting equipment will be needed .
- Page 9 Spec Item Frame set 1 for each Curve treadmill exploded view Mast set 0200 side Rear pull set 0300 Handle set 0500 Left cover Right cover Left stepper Right stepper Left cap 10 Right cap 11 Cover 12 Universal anchor 17 、...
- Page 10 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy contact@toorxprofessional.it www.toorxprofessional.it...
