Garlando Toorx TRAVELLER Instructions Manual

Hide thumbs

Advertisement

Table of Contents

INSTRUCTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Toorx TRAVELLER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Garlando Toorx TRAVELLER

Summary of Contents for Garlando Toorx TRAVELLER

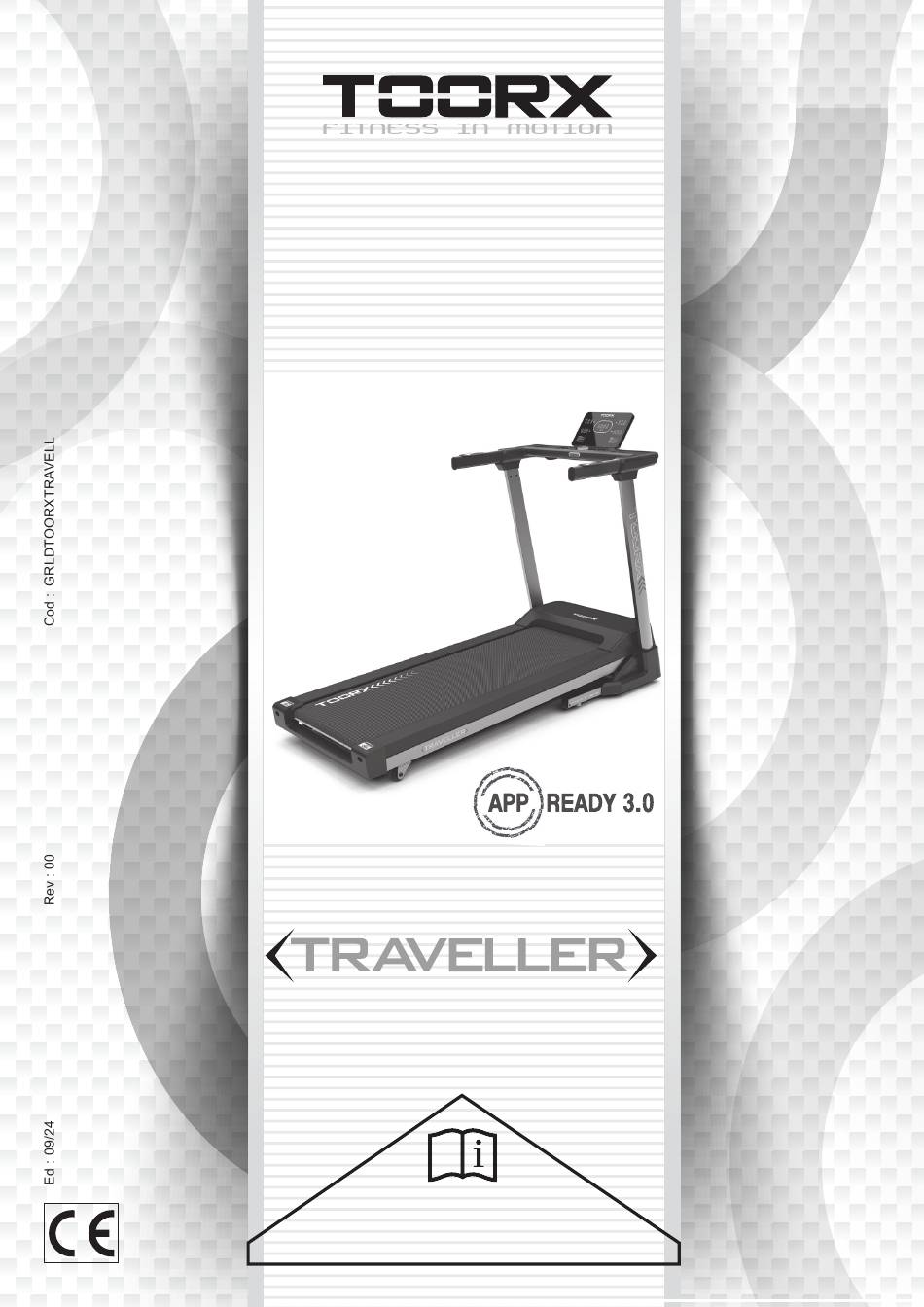

  • Page 1 INSTRUCTION...

  • Page 2: Assembly Instruction

    3. Assembly instruction HARDWARE PACKING LIST Quantity Part # Description Quantity (PCS) Part # Description (PCS) M8x16 mm. Bolt Lubricant Oil M8x45 mm. Bolt Safety key M8 Washer (φ16-φ9*T1.6) Allen wrench ￠4.2x16mm Screw NOTE: 1. Above described parts are all the parts you need to assemble this treadmill. Before you start to assemble, please check the hardware packing to make sure they are included.
  • Page 3 ● STEP 2 to fix both Lift the upright post and use the bolts M8*16(No:61） and M8*45 (No:62) and washers(No:47) uprights to the base frame.
  • Page 4 ● STEP 3 1. Connect the cables between the right side upright post (33R) and the console. 2. Use the supplied bolt M8x16(No:61) and flat washer(No:47) to fix the console on the top of upright post.
  • Page 5 ● STEP 4 Use the screw (40) Assemble decoration cover(34L/R) at the both side as below photo...
  • Page 6 ● STEP 4 Put on the safety key (12) onto the console. ATTENTION Must confirm complete assembly as the required above and lock all bolts. Do the following operation after checking everything is OK. Before you use the treadmill, please read the instruction carefully...

  • Page 7: Explosion Diagram

    Explosion diagram...

  • Page 8: Parts List

    PARTS LIST part no parts name part no parts name console upper cover cylinder screwφ3*7 console back cover display upper cover screw φ4.2*13 display back cover Power cable Allen wrench s5 display PCB console frame side rail fixer Hand pulse bolt M6*25 Handle foam screw ST4.2*13...

  • Page 9: Display Functions

    4. Console Functions 1. DISPLAY FUNCTIONS...
  • Page 10 2. Window function "SPEED": Display current speed, speed range: 1.0-18.0 kmh. When start pre-set programs, it will display "P01-P02-…-P24-U01-U02-U03-HP1-HP3”-FAT. "TIME": Display exercise time, and the range is 0:00-99:59. "DISTANCE": Display running distance, and the range is 0.00-99.9. "CAL ": Display calories you burned and the range is 0-999. “PULSE”: Display hand pulse at the moment and the range is 50-200.
  • Page 11 4. Quick Start (manual mode): 4.1 Turn on the power switch, and put on the safety key. 4.2 Press "START" button and the machine will start within 5 seconds. 4.3 Press "SPEED +/-" to adjust the speed; press "INC +/-" to adjust the incline. 5.
  • Page 12 speed incline speed incline speed incline speed incline speed incline speed incline speed incline speed incline speed incline speed incline speed incline speed incline...
  • Page 13 6. CUSTOM PROGRAM (U01-U02-U03) 6.1. User-defined program settings: In standby mode, press the "PROGRAM" button continuously until you want to set the user- defined program (U01-U03). Press the "MODE" button to confirm entering the setting. Then you can set the first time period. Use "SPEED+" "SPEED -" key or speed quickly key to set the speed, use "INCLINE+", "INCLINE -"...
  • Page 14 HRC programs (This function only for the treadmill with HRC function) DEFAULT is the default heart rate display parameter value (default display) HP1 only control incline, HP2 only control speed, HP3 control speed and incline. HP1 Program HP2 Program HP3 Program Target zone (L-H) Target zone (L-H) Target zone (L-H)
  • Page 15 a) The exercise time for heart rate control is fixed at 22 minutes b) In standby mode, press the "Program" button continuously until the distance window displays "HP1/HP2/HP3" (heart rate control program). At this time, the "Calories" window displays the system default age value and flashes.
  • Page 16 The maximum automatic running speed of the "HP3" program is 10.0km/h, and the default target heart rate value is 170 beats/minute for age 30; c) If you press the "Program" button, you will enter the age setting. The calorie window displays the default age of 30.
  • Page 17 7. BODY FAT 7.1 Power on, and press “PROG” to choose “FAT”; 7.2 Set the parameter, F-1 Sex, F-2 Age, F-3 Height, F-4 Weight, F-5 body fat. 7.3 Press MODE to set F-1, 01 means MAN, 02 means WOMAN, press SPEED to change 7.4 Press MODE to set F-2, press SPEED to adjust your age.

  • Page 18: Care And Maintenance

    5. Care and maintenance 5.1 Care For cleaning the running belt use a vacuum cleaner. If the belt is really dirty, please use a wet cloth. Do not use any cleanser. When cleaning, use only a moist cloth and avoid harsh cleaning agents.
  • Page 19 automatically, but during longer exercise, it can be, that the belt is off the centre. In this case, please follow up the following instruction. At the rear end of the running deck, there are 2pcs of Allen screws, which will be used for centering the belt. Don’t use any loose clothes during centering.
  • Page 20 like described under above center the belt.
  • Page 21 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
