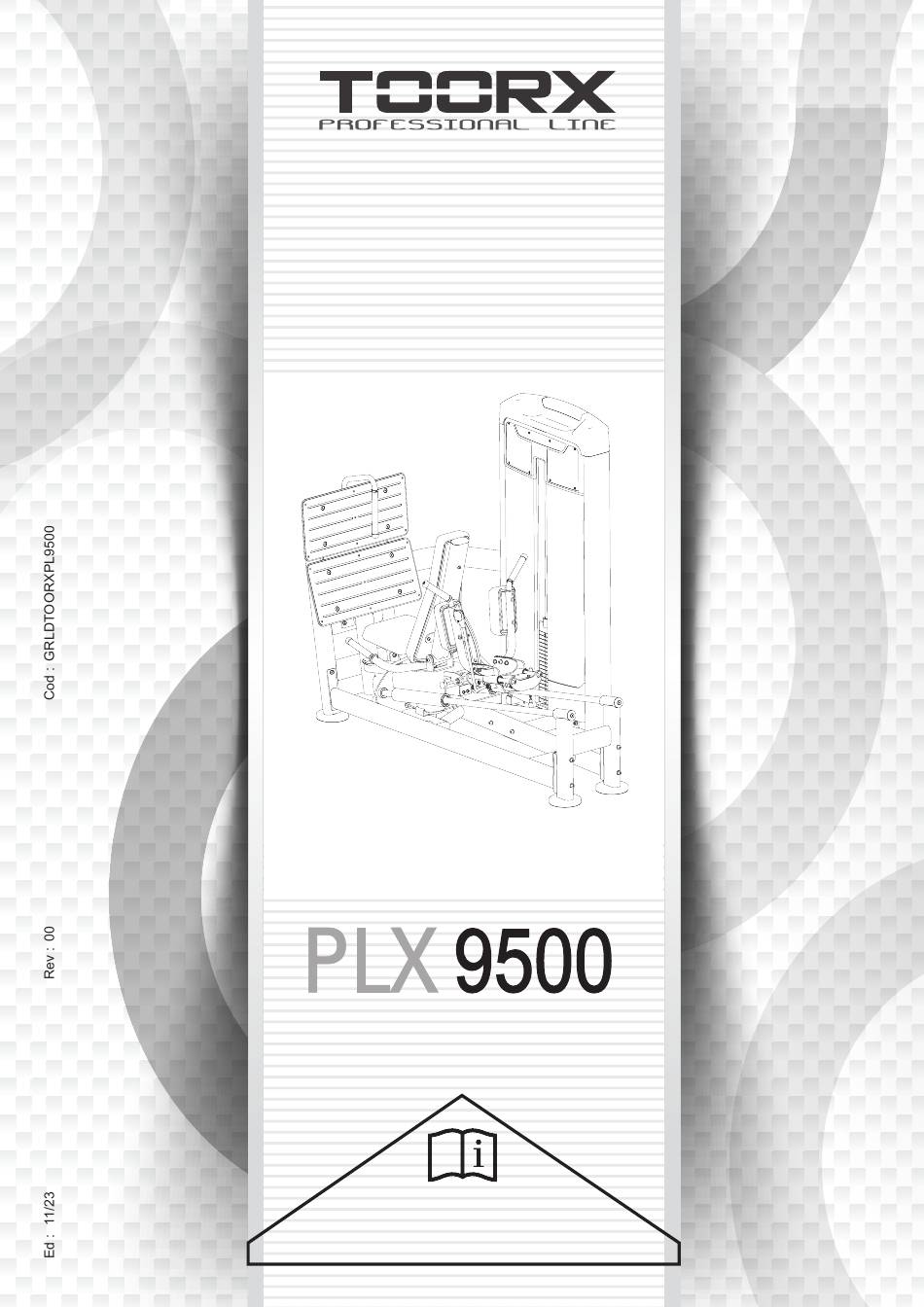

- Page 1 INSTRUCTION HORIZONTAL LEG PRESS HACK SQUAT...
-
Page 2: Parts List
Parts List NOTE: SOME OF THESE PARTS MAY COME PRE-INSTALLED. Description Description Item No Item No Main Frame Pulley Pedal Frame Rubber Plug φ18.5*φ15*7 Back Support Frame Shroud Clip Connecting Frame Rubber Bumper Back Cushion Frame Mount Sleeve Seat Cushion Sliding Frame Tube Plug F38 Weight Stack Frame Rubber Foot... - Page 3 Parts List NOTE: SOME OF THESE PARTS MAY COME PRE-INSTALLED. Description Description Item No Item No Stretch Splint Flat Washer φ9*φ16*1.6 Socket Head Cap Screw M10*70 Spring Washer φ8 Socket Head Cap Screw M10*90 Spring Washer φ10 Socket Head Cap Screw M10*50 Flat Hex Nut M5 Socket Head Cap Screw M10*25 Flat Head Cap Screw M6*20...
-
Page 4: Exploded View
Exploded View ─ 7 ─... - Page 5 Exploded View ─ 8 ─...
-
Page 6: Measurement Guide
Measurement Guide BHCS = Button Head Cap Screw SHCS = Socket Head Cap Screw FHCS = Flat He ad Cap Screw HHB = Hex Head Bolt Millimeters Inches ─ 9 ─... - Page 7 Assembly Step 1 Description Description Item No It em No Main Frame Nylon Lock Nut M10 Pedal Frame Flat Washer φ11*φ20*2 Socket Head Cap Screw M10*75 Spring Washer φ10 Socket Head Cap Screw M10*80 ─ 11 ─...
- Page 8 Assembly Step 2 Description Description Item No It em No Left Shoulder Cushion Frame Socket Head Cap Screw M10*40 Right Shoulder Cushion Frame Nylon Loc k Nut M10 Socket Head Cap Screw M10*35 Flat Washer φ11*φ20*2 ─ 12 ─...
- Page 9 Assembly Step 3 Description Description Item No Item No Connecting Frame Socket Head Cap Screw M10*30 Weight Stack Frame Socket Head Cap Screw M10*120 Connecting Frame Nylon Lock Nut M10 Air Spring Flat Washer φ11*φ20*2 Socket Head Cap Screw M10*70 Spring Washer φ10 Socket Head Cap Screw M10*90 Arc Washer φ10...
- Page 10 Assembly Step 4 Description Description Item No Item No Cable Assembly Selector Pin W/Coil Guide Rod φ19*2.0*1319 Socket Head Cap Screw M8*25 Rubber Bumper Flat Washer φ9*φ16*1.6 Mount Sleeve Spring Washer φ8 Weight Plate Weight Plate ─ 14─...
- Page 11 Assembly Step 5 Description Description Item No Item No Upper Shroud Front Cover Side Shroud Assembly Button Head Cap Screw M5*15 Under Shroud ─ 15 ─...
- Page 12 Assembly Step 6 Description Description Item No Item No Seat Cushion Socket Head Cap Screw M8*60 Back Cushion Socket Head Cap Screw M8*75 Shoulder Cushion Flat Washer φ9*φ16*1.6 Socket Head Cap Screw M8*30 Arc Washer φ8 ─ 16 ─...
-
Page 13: General Maintenance Information
General Maintenance Information Links, Pull-Pins, Snap Hooks, Swivels, Weight Stack Pins: * Check all pieces for signs of visible wear or damage. * Check springs in snap hooks and pull-pins for proper tension and alignment. * If the spring sticks or has lost its rigidity, replace it immediately. Upholstery: * To ensure prolonged upholstery life and proper hygiene, all upholstered pads should be wiped down with a damp cloth after every workout. - Page 14 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy contact@toorxprofessional.it www.toorxprofessional.it...
