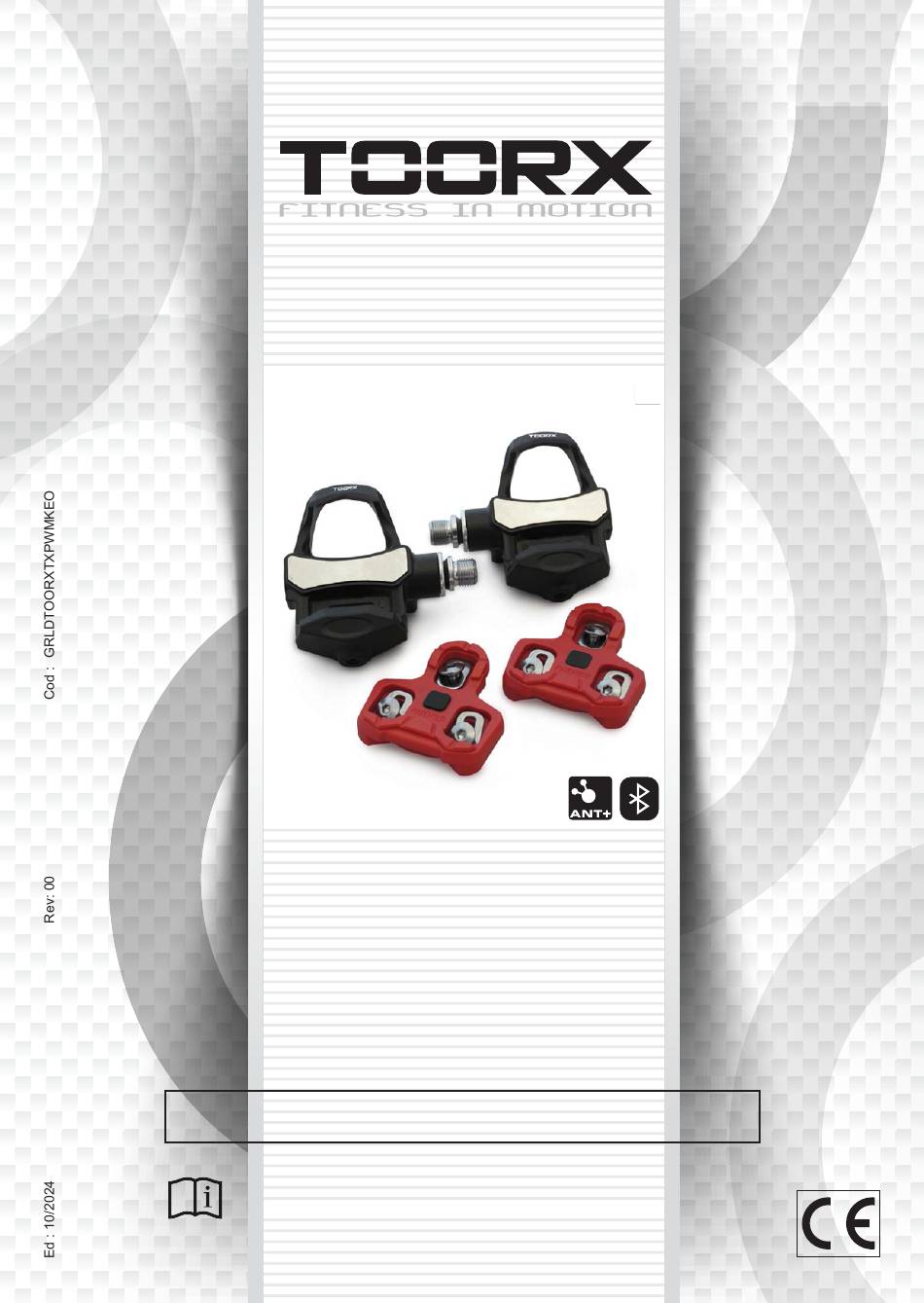

- Page 1 TX-POWER KEO Power Meter pedals Keo System I N S T R U C T I O N...
-
Page 2: Package Contents
Package contents a. Pedal Body e. Tension Adjuster b. Front Binding (fixed) f. Cleats x 2 c. Axle g. Cleat washers x 6 d. Rear Binding (adjustable) h. M5 Cleat bolts x6 Specifications Product detail 0°C ~ 40°C Operating Temperature Storage Temperature 0°C ~ 40°C Weight... -
Page 3: Tools Required
Tools required 3mm Allen Key, 4mm Allen Key, 6mm Allen key. Pedal installation Noted: Please see the instruction and install your pedal properly to avoid damage. The Left pedal is marked with the letter “L” and the right pedal with the letter “R”. It is important step to identify the proper pedal because the left pedal tightens in counter- clockwise and the right pedal tightens clock... - Page 4 Cleat Installation Left and right cleats are identical –please align the pointed end with the direction of the toe. 1. Lightly lubricate cleat bolt threads with oil. 2. Using the 4mm Allen key attach cleat bolts and cleat washers loosely to shoe soles.
- Page 5 Pedal adjustment and shoe/pedal use Depending on the model of your pedals, the tension adjuster is located on the rear binding, or on the top of the pedal body. To adjust rear binding tension, use a 3mm Allen key to turn tension adjuster. Adjustable rear binding tension 1.
- Page 6 Pedal Status LED LED Activity Status Blue light flashes Both pedals are waking up. Alternating blue and green flash Left pedal is pairing to right pedal. Blue flashes every seconds Left pedal is detecting right pedal. Blue light flashes twice every second Zero reset (calibration) is successful.
- Page 7 Calibration It is essential to conduct a zero-offset procedure upon initial use or following the detachment of the device to ensure the acquisition of precise data. While zero-offset need not be performed before each ride, it is advisable to execute the zero-offset calibration periodically. Please see the following steps for zero reset of power pedal: Spin the cranks backwards a few times to wake up the power meter.
-
Page 8: Google Play
Pair to Smart phone 1. Download “Ride for Life” from Google play or App Store. Google Play App Store 2. Open the APP 3. Go into SETTING , then go to page that display BLE CONNECT, below ID will appear. 1. - Page 9 2. Press RECEIVE DATE, press the green RECEIVE box again. Files will start receiving and a list of files whic you had already record will be shown. DATA LIST 0 / 7 CREATE TRACK TRACK DATA RECEIVE DATA RECEIVE DATA SEND 3.
-
Page 10: Troubleshooting
Caution External interference may be caused by other electronic devices, such as nearby televisions, stereos, speakers, wires and cables, etc. If you experience interference in power pedal, try moving your pedal away from the area of potential radio interference. Relocate the pedal away from any devices that may interfere with RF signals, such as DVD players or televisions. -
Page 11: Warranty
Q3. When the hardware issued lights appear, such as, red and blue light all the time or alternating of red and blue light. Try to remove the battery and insert it after one minute. Q4. When encountering the failing calibration or no working after the calibration. - Page 12 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
