Garlando Toorx BRX-85 EVO Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
INSTRUCTION

Advertisement

loading
Need help?

Need help?

Do you have a question about the Toorx BRX-85 EVO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Garlando Toorx BRX-85 EVO

Summary of Contents for Garlando Toorx BRX-85 EVO

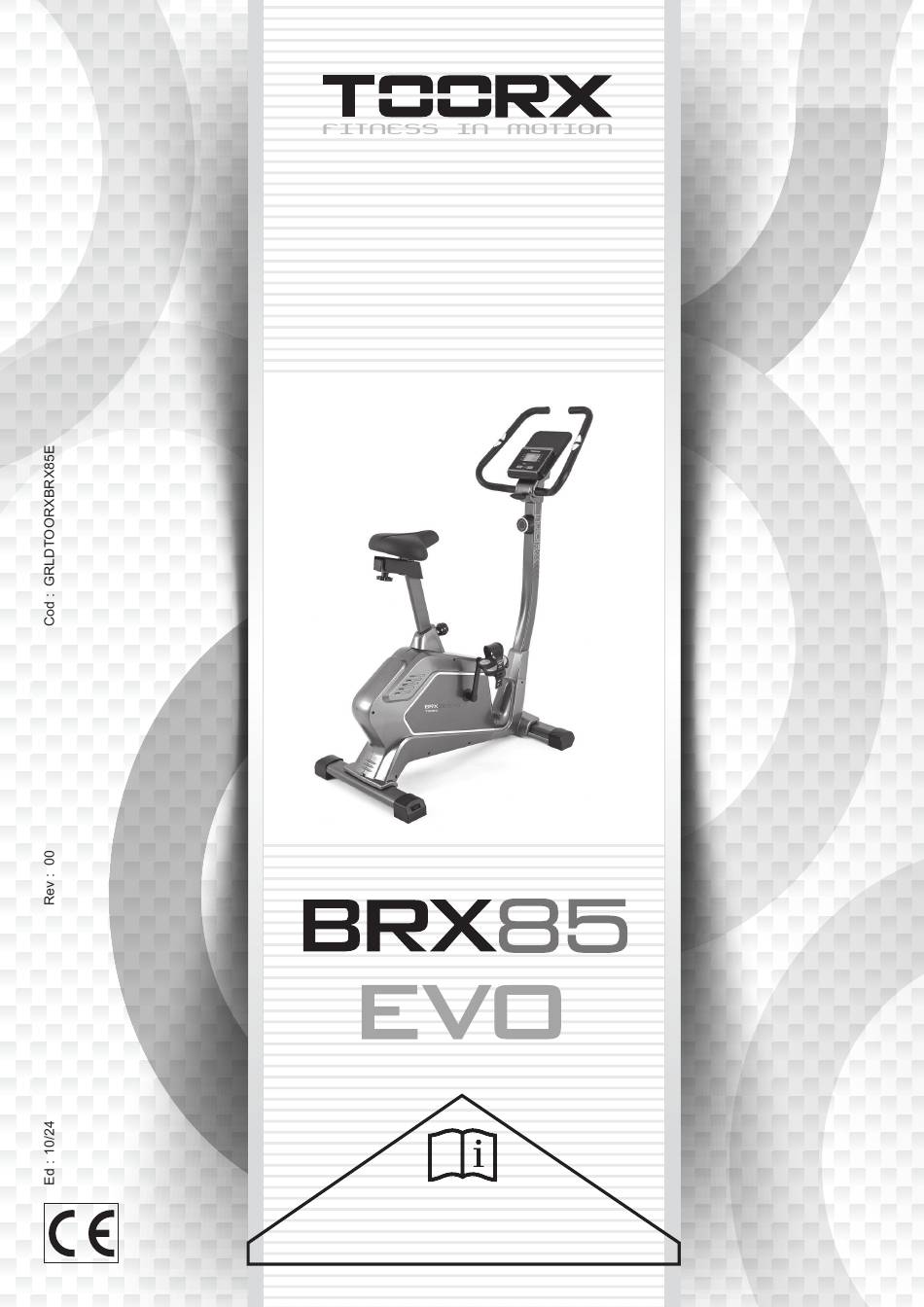

  • Page 1 INSTRUCTION...

  • Page 2: Exploded View And Parts List

    EXPLODED-VIEW & PARTS LIST：...

  • Page 3: Part List

    PART LIST： Q’TY Q’TY Description Description End cap Computer M5*10 Belt 6PJ410 Screw Axle Middle wire Handlebar Belt pulleyΦ240 Φ25*16 M6*15 Hexagon bolt End cap Φ23*3*630 Nylon nut Foam Bushing Φ17.2*Φ22*4 Pulse ST4.0*19*Φ11 Bearing 6203-2Z Screw d17*Φ23*0.3 L=800MM Handle pulse wire wave washer Φ12*11*Φ3 Stopple...
  • Page 4 Nylon nut M8*H7.5*S13 shipping tube Φ60 Tension spring End cap Ф37*Ф32*24 Screw M8*72*20*S6 Idle wheel Bearing 6000-RS Allen wrench Washer d6*Φ16*1.5 S13-14-15 Spanner Hexagon bolt M6*12*S10 76L/R Pedal Seat cover...

  • Page 5: Assembly Instruction

    ASSEMBLY INSTRUCTION STEP 1: 1. Unscrew bolt (73) with spanner and remove shipping tube (71). You may save these parts if you’d like to repackage and transport this elliptical in the future. 2. Attach front stabilizer (A) and rear stabilizer (B) onto main frame (28) with bolt(23) and washer (21).
  • Page 6 STEP 2： 1.Attach the the seat(58) to the seat tube(55) with washer(21)and nylon nut(57), then tighten seat (58). 2.slide the seat tube(55) into the vertical seat post(51) and at the desired position,align holes and fix in place with the locking knob(53) and washer(54).Fix the seat cover(77) to the vertical seat post(51) with screw(2).
  • Page 7 STEP 3： a. Insert front cover (27) into handle bar post (16). b. Connect trunk wire 1(3) with trunk wire 2(46) c. Connect well the control tension (17 ) with the tension wire ( 48) d. Secure handle bar post(16) to main frame(28) with bolt(20), washes(21)
  • Page 8 STEP 4： Attach handlebar(4) onto handlebar post(16).
  • Page 9 STEP 5： （13）to the handle（4） Attach the front cover Connect middle wire (3) and computer wire (1a). Attach computer (1)to support tube (16) with the screw (2).Then, plug handle pulse wire (9) into the hole which is at the back of computer. 3.
  • Page 10 EXERCISE MONITOR INSTRUCTION MANUAL SPECIFICATIONS: TIME………………………………………………………………..00:00-99:59 SPEED(SPD)..……………………………………………0.0-99.9KM/H (ML/H) DISTANCE………………………………………………..0.00-9999KM (ML) CALORIES…………………………………………………..0.0-9999KCAL ※ODOMETER(ODO)…………………………..…………..…0.0-9999KM (ML) ※PULSE (PUL) ……..............0，40~240BPM KEY FUNCTIONS: MODE: This key lets you to select and lock on to a particular function you want. ※SET:Can to proceed the data establish for “TIME” “DISTANCE” “CALORIES”“PULSE”. CLEAR(RESET):The key to reset the value to zero by pressing the key.
  • Page 11 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
