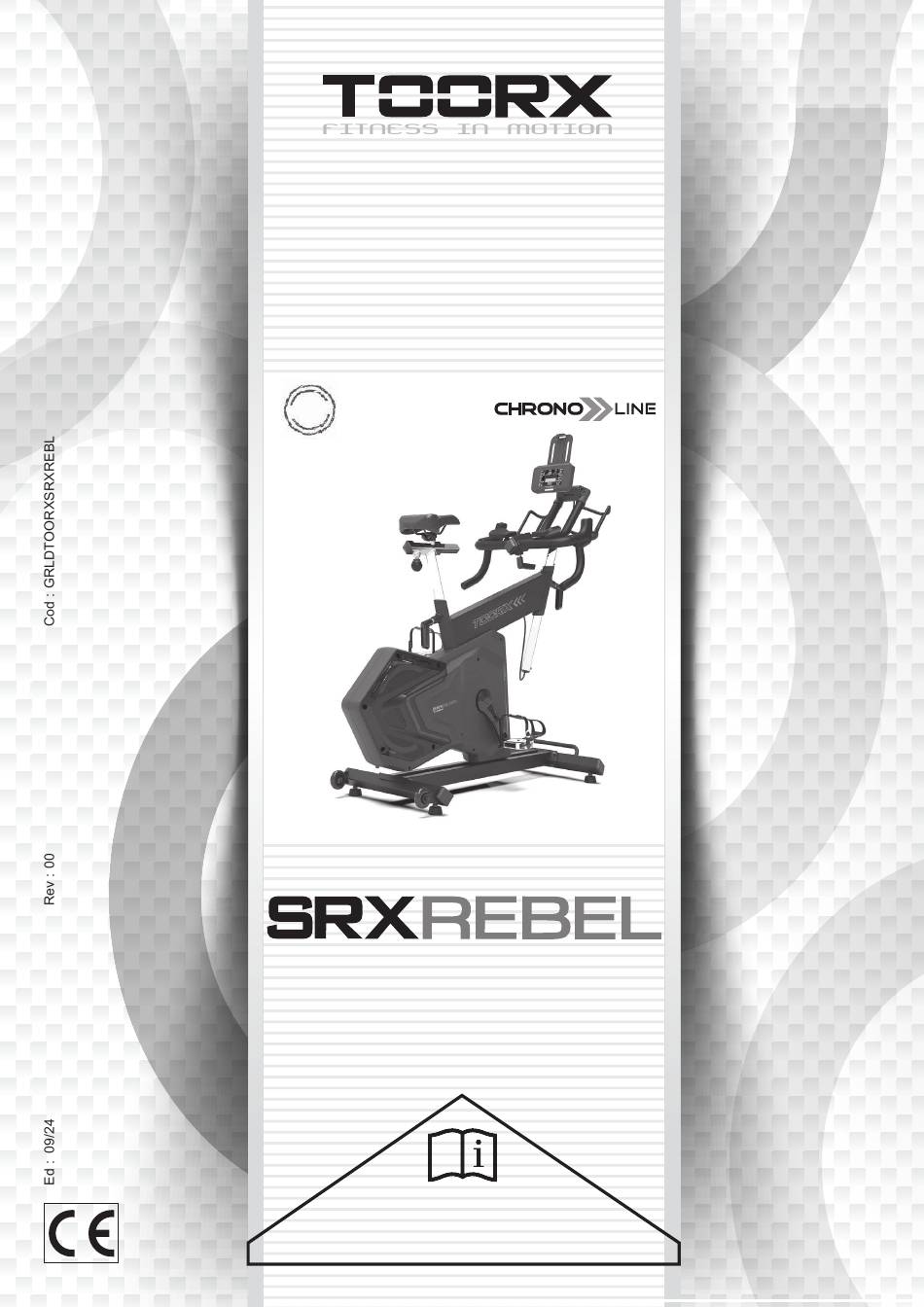

- Page 1 INSTRUCTION APP ready 4.0...
-
Page 2: Parts List
Parts List Main Frame Rear Stabilizer Front Stabilizer (K1) (K2) Left Pedal Right Pedal Handle Bar & Seat Console Adaptor TOOL 4m/m 5m/m (B3) End Cap (J8) SCREW... - Page 3 FIGURE 1 FIGURE 1 : Rear Stabilizer Assembly Step 1. Remove the preassembled screw (J1), spring washers (J2), and washers (J3) from the rear stabilizer (C). Step 2. Attach the rear stabilizer (C) to the main frame (A) with screw (J1), spring washers (J2), and washers (J3).
- Page 4 FIGURE 3 FIGURE 3: Central Supporting Tube Assembly Step 1. Release the knob (A10). Then, pull up the handle bar supporting tube (B) as below graph. Step 2. Fasten the Screw (J8) to the handle bar supporting tube (B). VIEW A Use Tool : 4m/m...
- Page 5 FIGURE 4 FIGURE 4 : Handle Bar Assembly Step 1. Remove screw (J8) from the central supporting tube (B). Step 2. Align the square hollow tube on the handle bar (E) to the square tube on the upper part of the central supporting tube (B). Step 3.
- Page 6 FIGURE 5 FIGURE 5 : Saddle Assembly Step 1. Put the saddle (H) onto sliding basement and using tool to tight it. Use Tool : FIGURE 6 FIGURE 6 : Pedal Assembly Note: Locate the left & right pedals. There is a Left and Right mark on each pedal and each pedal strap to distinguishing them.
- Page 7 FIGURE 7 FIGURE 7 : How to Transport the Bike If the machine needs to be transported to a different location, lift up the rear stabilizer until the front transport wheels are touching the ground. You may now move to the desired location. After the move, gently set the machine down at its new location and adjust the stabilizers’...
- Page 8 FIGURE 9 FIGURE 9 : Adjust the Handle & Saddle Position Like View E & Veiw F, you can adjust the handle bar to your intended position after releasing the knob (A10) counterclockwisely. Please fix the knob (A10) clockwisely after you finish the position adjustment.
- Page 9 Console Smart Device Stand Panel FITNESS QUICK START FITNESS Quick Start Button Smart Handle START/PAUSE/ENTER STOP/SCAN/RESET Keys on the Left Hand Keys on the Right Hand Rotatable Armrest Rotatable Armrest...
-
Page 10: Functions Of Keys
Functions of Keys QUICK START : Press it to start to ride in Fitness Control. START/PAUSE/ENTER: During standby, press it to enter the user data or to select mode. During training, press it to start or to pause the training. STOP/SCAN/RESET: During standby, press it to return the previous step. -
Page 11: Resistance Control
User Data Setting Select the USER 1 ~ USER 4 Enter the User’s Height/Weight/Age/FTP to adjust the data ; Press to enter and get into the next step ** Notice ：Weight will affect the Resistance of BIKE CONTROL RESISTANCE CONTROL After setup the user data, you can select resistance control by ;... - Page 12 ERG MODE Press to adjust the target watt at the beginning. WATT + 5 WATT + 20 WATT - 20 WATT - 5 Left Hand Right Hand After setup the target watt, press to start the training. Resistance will change the resistance automatically after you ride above 30 RPM. During the training, press to adjust the target watt.
- Page 13 FTP TEST Mode Press to start. First is the 2 minutes Warm up. Fitness Control Bike Control LOAD + 1 GEAR + 1 LOAD + 5 GRADIENT + 0.5% LOAD - 1 LOAD - 5 GEAR - 1 GRADIENT - 0.5% Left Hand Right Hand Left Hand...
- Page 14 FTMS Mode Press to start the bluetooth conneting ability. Find the bluetooth number of this console in the App. You can check the bluetooth number at the back of this console. Fitness Control Bike Control Console will judge if the connection can be satisfied the resistance control logic you selected. If not, it will change the resistance control logic automatically.
- Page 15 Displayed Data During Training (for the training modes not FTMS) During training H.RATE/RPM/WATT can be changed the displayed way. Instant Display Percentage Display 3 Seconds Moving Average Max Data During training, HR Zone & Watt Zone will automatically scan each 5 seconds. HR ZONE WATT ZONE...
- Page 16 WATT ZONE :Based on your pedaling power and your FTP, console will show the WATT ZONE you are in. ZONE Training Type Pedaling Watt to FTP (%) ZONE 1 Recovery Under 55% ZONE 2 Endurance 56-75% ZONE 3 Speed 76-90% ZONE 4 Theshold 90-105%...
- Page 18 W M8 T M8 T-8PJ & ONE-WAY FLYWHEEL SPRING WASHER M8 ) L (...
- Page 19 Rear Stabilizer Front Stabilizer...
- Page 20 Handle Bar & Console CONSOLE SUPPORTING TUBE COVER SENSOR WIRE 550mm...
- Page 21 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
