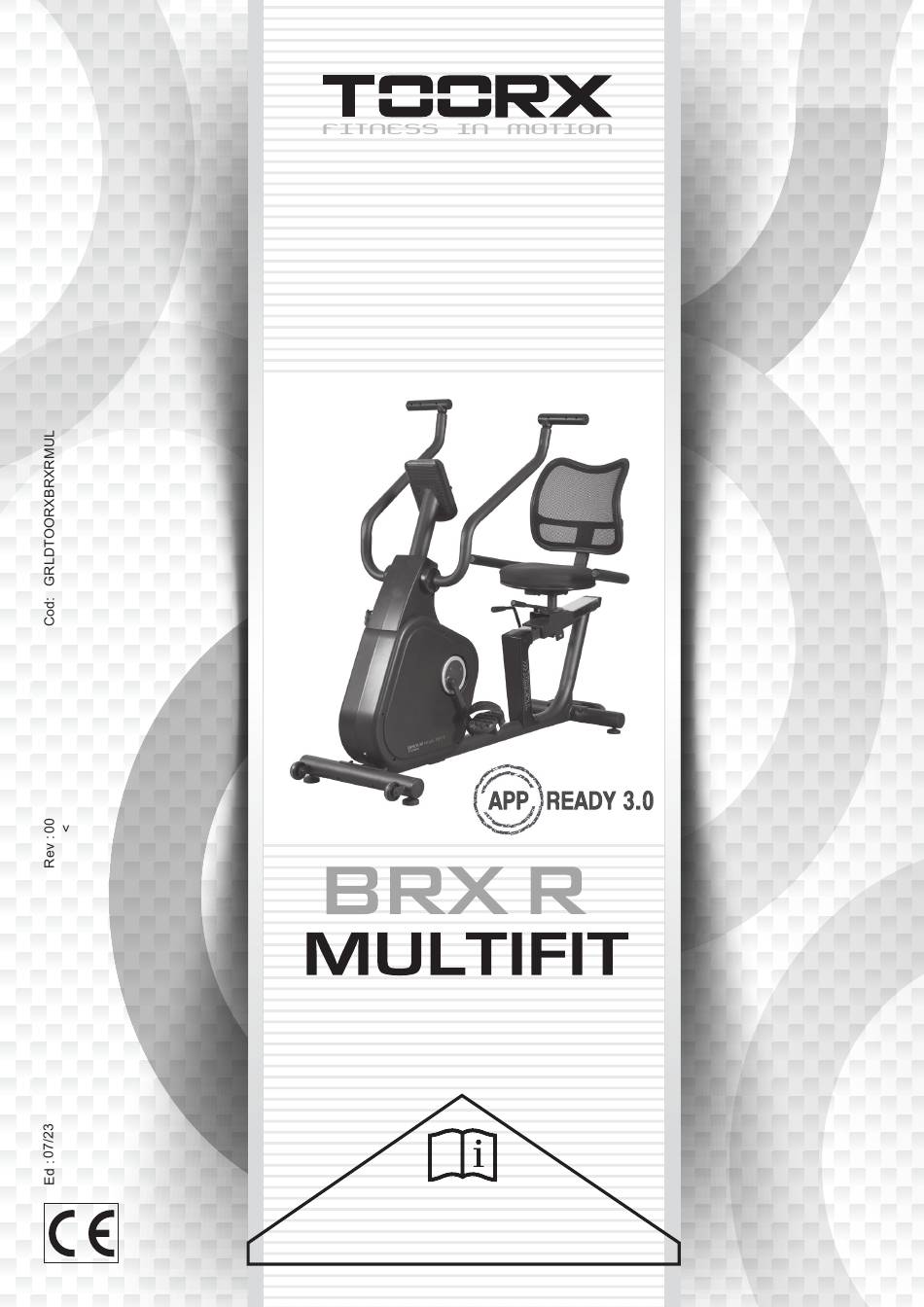

  • Page 1 INSTRUCTION...

  • Page 2: Exploded Diagram

    EXPLODED DIAGRAM...

  • Page 4: Parts List

    Parts List Description Description Cover Of Handlebar Post Join 28L/R Computer Bolt M5*10*Φ10 Chain Cover Connecting Rod End cap Φ12 Handlebar Post Bolt M8*20*S13*φ13 31L/R Pedal Spring Washer d8 32L/R Support Cover L/R Slideway Arc Washer d8*φ20*2.0*R30 Cover Of Slideway Front Stabilizer Bolt M8*42*15*S5 Bolt M8*20*S5...
  • Page 5 Bolt M6*40*S5 Right Handle Pulse Upper Cover Bolt ST4.2*16*Φ8 Adjusted Rod Description Description Nylon Nut M6*H6*S10 C-Clip D40 Bearing 6804 C-Clip d17 Saddle Frame Small Cover Washer d8*Φ22*2 Bolt M6*16*S10 Washer d6*Φ20*1 Bolt M8*47*20*H5 Bolt M6*45*20*S5 Bolt M8*40*S6 Assembly Of Saddle Frame C-Clip d20 Square End cap J50 Bearing 6004-ZZ...
  • Page 6 Washer d8*Φ32*2 Idler Wave Washer d12*Φ15.5*0.3 Bolt M8*16*S5 Tension SpringΦ2.0*Φ Bushing Φ38 12*79*N27 Bearing 6203 Idler Connecting Rod Description Description Washer d12*Φ17*0.5 Right Handle Pulse wire Bolt M8*12*Φ10*5*S12 Right Handle Pulse wire Sensor holder Right Handle Pulse wire Sensor Arc Washer Bolt ST4.2*8*Φ8 Adjusted Outer bushing Motor...
  • Page 7 Hardware： #4 M8*20*S13 11PCS #5 d8 15PCS #6 d8* 20*2*R30 7PCS Φ #10 d8* ¦ µ 1 6*1.5 10PCS #12 M8*73*20*H5 4PCS #13 M8*H16*S13 6PCS #17 M6*20*S5 6PCS #18 d6 12PCS #19 d6* ¦ µ 1 2*1 6PCS #42 M6*20*S5 2PCS #43 d6* ¦...
  • Page 8 ASSEMBLY INSTRUCTIONS STEP 1: #5 d8 4PCS #6 d8* 20*2*R30 4PCS Φ #12 M8*73*20*H5 4PCS Attach the Front Stabilizer(7) and Rear #13 M8*H16*S13 4PCS Stabilizer(14) to the Main Frame(36) using #B S13-15 1PC Bolts(12) , Arc Washers(6) , Spring washers(5) and Cap Nuts(13). Tighten and secured with Wrench (B).
  • Page 9 STEP 3: #72 ST4.2*19*8 2PCS #C S13-14-15 1PC Fix the Cover Of Handlebar Post Join L/R(28L/R) to the Main Frame(36) using Chain Cover Connecting Rod(29). Then tighten and secured with Bolts(72) by Spanner(C). STEP 4: #17 M6*20*S5 6PCS #18 d6 6PCS #19 d6* ¦...
  • Page 10 STEP 6: #4 M8*20*S13 4PCS #5 d8 4PCS #10 d8* ¦ µ 1 6*1.5 6PCS Attach Rear Handle(63) to the Assembly Of #13 M8*H16*S13 2PCS Saddle Frame(61) using Bolts(59), #59 M8*47*20*H5 2PCS #B S13-15 1PC washers(10) and Cap nuts(13). Tighten and secured with Wrench(B).

  • Page 11: Adjusting The Balance

    ADJUSTMENTS GUIDE MOVING THE MACHINE move machine, lift handlebar(14) until transportation wheels(9) on the front bottom tube touch the ground. With the wheels on the ground, you can transport the bike to the desired location with ease. ADJUSTING THE BALANCE When this product is on an uneven surface, please adjust both Foot Pads (16) according to the above instruction...
  • Page 12 The seat could be moved in the horizontal direction when under draught adjusted handlebar (44) and put foot on the pedal . 4. ADJUSTING THE ADJUSTED ROD: When stop to exercise, pull up adjusted rod(54), the saddle can been turn to the right or the left, the saddle will not be rotated until hearing the sound, then can leave the saddle.
  • Page 13 Operating Manual Thank you for purchasing our product. For the best user experience, we recommend that you take the time to read this manual carefully. Description of instrument window ITEM DESCRIPTION RANGE TIME Current time for exercise 0 min: 00 s ~ 99 min: 00 s SPEED Movement speed during exercise 0.0 ~ 99.9 km/h (mile/h)

  • Page 14: Description Of Key Functions

    Description of instrument functions ITEM DESCRIPTION NOTES (PROGRAM 1) Exercise mode with 1 manual adjustment of resistance equivalent MANUAL program (PROGRAM 2 ~ 11) Exercise mode with 10 automatic adjustment of resistance PROGRAM equivalent programs (PROGRAM 12) Test body fat percentage, body mass index and basal metabolic BODY FAT rate (PROGRAM 13) Exercise mode of movement resistance equivalent controlled by...

  • Page 15: Parameter Units

    ITEM DESCRIPTION Select function mode upwards, adjust upwards during setting, and increase LEVEL value during ∧ exercise Select function mode downwards, adjust downwards during setting, and lower LEVEL value during ∨ exercise Return to PROGRAM 1 in any mode (except for U1-U4, WATT, heart rate customized values); the RESET rest are cleared ST./SP.
  • Page 16 At set state, press the key to select the set items in sequence, and the selected items (time, distance, calories, age) will flash. Press the key to adjust upwards or downwards, and press the key to select the next item. After all selections are completed, it will automatically exit the set state, or you can directly press the to start at set state.
  • Page 17 Press the key to select the program mode. Press the key to start exercise, or press the key to enter the setting mode. At set state, press the key to select the set items in sequence, and the selected items (time, distance, calories, age) will flash.
  • Page 18 After pressing the key to start the test for 8 seconds, the meter displays BMI-body mass index, FAT%-body fat percentage, and BMR-basal metabolic rate. Before testing, press the heart rate sensor and keep the heart rate normal in continuous display. The test should be performed when the body is relaxed and the heart rate is calm.
  • Page 19 SPEED PULSE SPEED PULSE DOWN WATT WATT ENTER SPEED PULSE SPEED PULSE DOWN WATT WATT ENTER SPEED PULSE SPEED PULSE ENTER WATT WATT Press the key to enter the setting mode. At set state, the setting sequence is: time → distance → watt. Press the key to adjust, press the key to enter the next setting item, and press the...
  • Page 20 DOWN ENTER DOWN ENTER ENTER ENTER Press the key to select the target heart rate mode. PROGRAM 14 - 16: Press the key to enter the setting mode. At set state, the setting sequence is: time → distance → calories → age. The standard heart rate value is automatically set according to age.
  • Page 21 UESR PROGRAM (PROGRAM 18 - 21) DOWN ENTER DOWN ENTER ENTER ENTER Press the key to select mode U1 - U4. Press the key to start exercise, or press the key to enter the setting mode. At set state, the setting sequence is: time → distance → calories → age → resistance value of each column. Press the key to adjust upwards and downwards, and press to select the...

  • Page 22: Bluetooth App

    RECOVERY AFTER 60 SECONDS When the meter displays the heartbeat value at exercise state, press the key and keep the heartbeat monitoring. TIME displays "0: 60" (seconds), countdown starts at 60 seconds, and the system starts testing. When the TIME display counts down to "0: 00", the main window of the meter displays F1 ~ F6, indicating the level of heartbeat recovery ability.
  • Page 23 the receiver in the console to recognize the signal from the chest strap. Carefully dampen the back of the strap with tap water (Diagram A). Important: Do not use deionized water. It does not have the proper minerals and salts to conduct electrical impulses.
  • Page 24 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
