Location of controls
Card remote commander RM-X140
(ty:
to select upwards
(=>):
to select
a
to select downwards
in menu mode, the curently salectable button(s) of
these four are indicated with a" &" in the display.
¢ AEP, UK Model

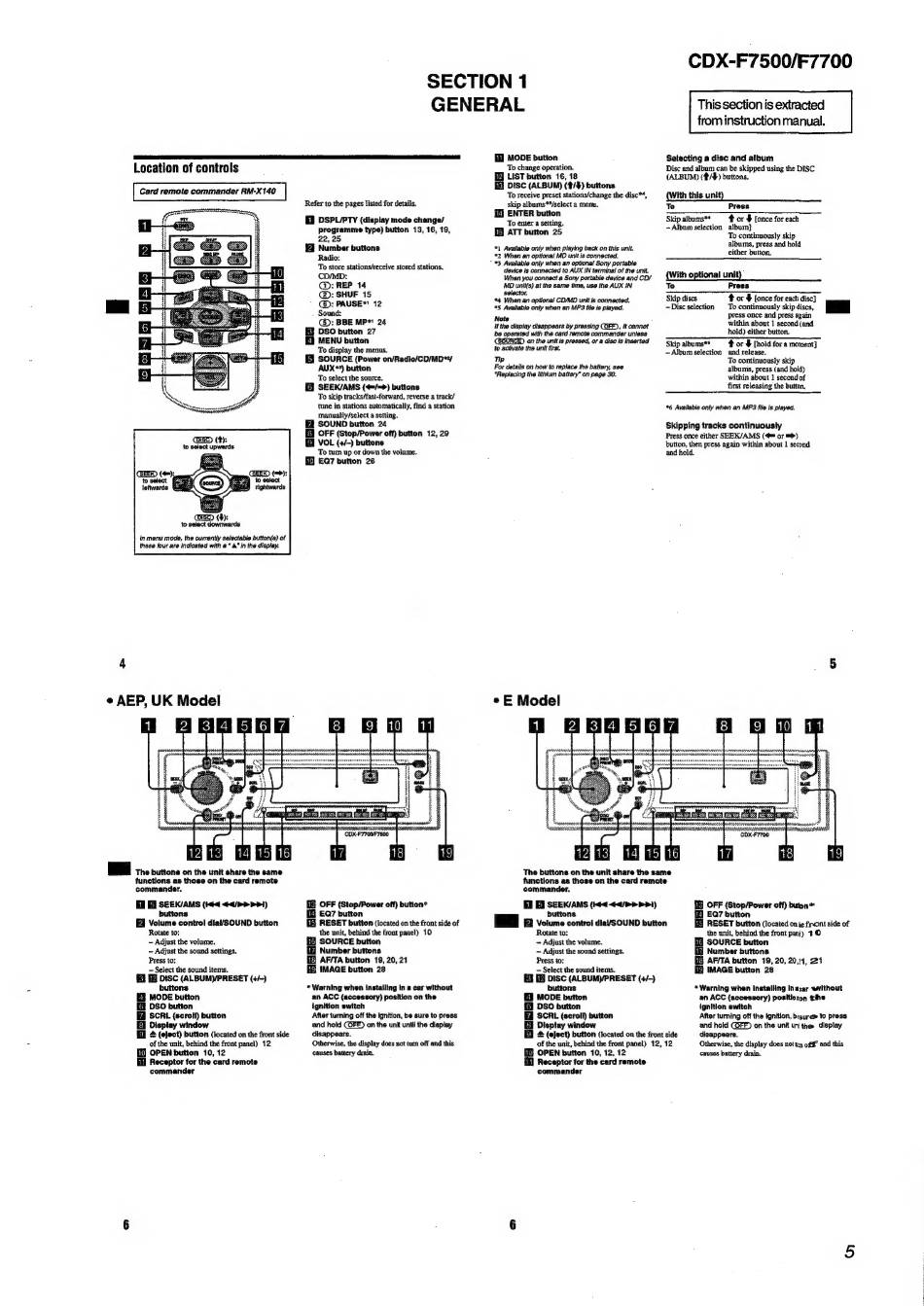

SECTION 1
GENERAL
Refer to the pages listed for details.
DSPL/PTY (display mode change/
programme type) button 13, 16, 19,
22,25
Number buttons
Radio:
To store stations/receive stored stations.
S
@: SHUF 15
* @;: PAUSE" 12
Sound:
@®: BBE MP*' 24
DSO button 27
Gi MENU button
To display the menus.
SOURCE (Power on/Radio/CD/MD*/
AUX*5) button
To select the source.
SEEK/AMS (4=/=} buttons
To skip tracks/fast-forward, reverse a track/
tune in stations automatically, find a station
manually/select a setting.
SOUND button 24
OFF (Stop/Power off} button 12,29
VOL (+/-) buttons
To tum up or down the volume.
EQ7 button 26
Hl MODE button
To change operation.
LIST button 16, 18
) DISC (ALBUM) (4/4) buttons
To receive preset stations/change the disc*4,
skip albums**/select a menu.
ENTER button
To enter a setting,
ATT button 25
"1 Available only when playing back on this unit.
*2 When an optional MD unit is connected.
"3 Available only when an optional Sony portable
device is connected to AUX IN terminal of the unit.
When you connect a Sony portable device and CD/
MD unit(s) at the same time, use the AUX IN
selector.
*4 When an optional CD/MD unit is connected,
*5 Available onty when an MP3 tile is played.
Note
if the display disappears by pressing (OFF), it cannot
be operated with the card remote commander uniess
(SURE) on the unit is pressed, or a disc is inserted
to activate the unit first.
Tp
For details on how to replace the battery, see
"Replacing the lithium battery" on page 30.
° E Model
CDX-F7500/F7700
This section is extracted
from instruction manual.
Selecting a disc and album
Disc and album can be skipped using the DISC
(ALBUM) (4/4) buttons.
(With this unit)
To Press
Skip albums** or $ [once for each
~ Album selection album}
To continuously skip
albums, press and hold
either button.
(With optional unit)
To Press
Skip discs # or $ [once for each disc]
~Disc selection To continuously skip discs,
press once and press again
within about 1 second (and
hold) either button.
Skipalbums** or $ [hold for a moment]
—Album selection and release,
To continuously skip
albumis, press (and hold)
within about 1 secondof
first releasing the button,
*6 Available only when an MP3 file Is played,
Skipping tracks continuously
Press once either SEEK/AMS (4 or =>)
button, then press again within about | second
and hold.
| The buttons on the unit share the same
functions as those on the card remote
commander.
SEEK/AMS (Hd </>» PP)
buttons
Volume control dlaYSOUND button
Rotate to:
— Adjust the volume.
— Adjust the sound settings.
Press to:
— Select the sound items.
K DISC (ALBUM)PRESET (+/-)
buttons
Ei MODE button
OSO button
SCRL. (scrolf) button
Display window
EB] + (eject) button (located on the front side
of the unit, behind the front panel) 12
OPEN button 10, 12
Receptor for the card remote
commander
OFF (Stop/Power off) button*
EQ7 button
RESET button (located on the front side of
the unit, behind the front panel) 10
SOURCE button
Number buttons
AF/TA button 19, 20, 21
IMAGE button 28
* Warning when installing In a car without
an ACC (accessory) position on the
ignition switch
After turning off the ignition, be sure to press
and hold 'on the unit until the dispiay
disappears.
Otherwise, the display does not turn off and this
causes battery drain.
The buttons on the unit share the same
functions as those on the card remote
commander,
SEEK/AMS (id <44/>>PPi)
buttons
y Volume control dia/SOUND button
Rotate to:
~ Adjust the volume.
— Adjust the sound settings.
Press to:
Select the sound items.
Display window
El & (eject) button (located on the front side
of the unit, behind the front panel) 12, 12
[} OPEN button 10, 12, 12
[i] Receptor for the card remote
commander
OFF (Stop/Power off) buton*
EQ7 button
RESET button (located on te front side of
the unit, behind the front panjy 4 O
SOURCE button
Number buttons
AF/TA button 19, 20, 20,1, 21
2 IMAGE button 28
* Warning when Installing Inacar without
an ACC (accessory) positionon she
ignition switch
After turing off the ignition, bisuree to press
and hofd CGEF on the unit un the display
disappears.
Otherwise, the display does nottm of and this
causes battery drain.
:
