Sony CDX-F5700 Service Manual

Fm/mw/lw compact disc player
Hide thumbs Also See for CDX-F5700:
Table of Contents

Advertisement

Quick Links

Download this manual
CDX-F5700/F5705X
SERVICE MANUAL
Ver 1.0 2004. 02
• The tuner and CD sections have no adjustments.
AUDIO POWER SPECIFICATIONS (US MODEL)
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
23.2 watts per channel minimum continuous average power into
4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more
than 5% total harmonic distortion.
CD player section
Signal-to-noise ratio
120 dB
Frequency response
10 – 20,000 Hz
Wow and flutter
Below measurable limit
Tuner section
FM
Tuning range
US, Canadian Model:
87.5 – 107.9 MHz
AEP, UK Model:
87.5 – 108.0 MHz
E Model:
FM tuning interval:
50 kHz/200 kHz
switchable
87.5 – 108 MHz (at 50 kHz step)
87.5 – 107.9 MHz (at 200 kHz step)
Antenna terminal
External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Usable sensitivity
9 dBf
Selectivity
75 dB at 400 kHz
Signal-to-noise ratio
67 dB (stereo),
69 dB (mono)
Harmonic distortion at 1 kHz
0.5% (stereo),
0.3% (mono)
Separation
35 dB at 1 kHz
Frequency response
30 – 15,000 Hz
AM (US, Canadian Model)
Tuning range
US, Canadian Model:
530 – 1,710 kHz
E Model:
AM tuning interval:
9 kHz/10 kHz switchable
531 – 1,602 kHz (at 9 kHz step)
530 – 1,710 kHz (at 10 kHz step)
Antenna terminal
External antenna connector
Sony Corporation
9-877-606-01
2004B04-1
e Vehicle Company
© 2004. 02
Published by Sony Engineering Corporation

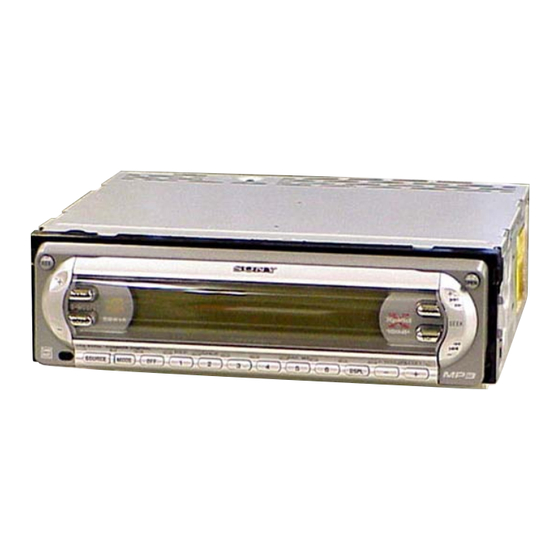

Photo: CDX-F5700
Model Name Using Similar Mechanism
CD Drive Mechanism Type
Optical Pick-up Name
SPECIFICATIONS
Intermediate frequency 10.7 MHz/450 kHz
Sensitivity
MW/LW (AEP, UK Model)
Tuning range
Aerial terminal
Intermediate frequency 10.7 MHz/450 kHz
Sensitivity
Power amplifier section
Outputs
Speaker impedance
Maximum power output US, Canadian, E Model:
General
Outputs
FM/AM COMPACT DISC PLAYER
FM/MW/LW COMPACT DISC PLAYER
US Model
Canadian Model
AEP Model
UK Model
E Model
CDX-F5700/F5700X/FW570
MG-611MA-186//Q
KSS1000E
30 µV
MW: 531 – 1,602 kHz
LW: 153 – 279 kHz
External aerial connector
MW: 30 µV
LW: 40 µV
Speaker outputs
(sure seal connectors)
4 – 8 ohms
52 W × 4 (at 4 ohms)
AEP, UK Model:
50 W × 4 (at 4 ohms)
Audio outputs terminal (front/rear)
Subwoofer output terminal (mono)
Power antenna relay control terminal
Power amplifier control terminal
– Continued on next page –
US, Canadian, E Model
AEP, UK Model
CDX-F5705X
CDX-F5700
1

Advertisement

Table of Contents
loading

Related Manuals for Sony CDX-F5700

Summary of Contents for Sony CDX-F5700

  • Page 1 9 kHz/10 kHz switchable 531 – 1,602 kHz (at 9 kHz step) 530 – 1,710 kHz (at 10 kHz step) AEP, UK Model Antenna terminal External antenna connector Sony Corporation 9-877-606-01 2004B04-1 e Vehicle Company © 2004. 02 Published by Sony Engineering Corporation...
  • Page 2 Parts for installation and connections (1 set) Front panel case (1) Card remote commander RM-X114 Note This unit cannot be connected to a digital preamplifier or an equalizer which is Sony BUS system compatible. Design and specifications are subject to change without notice.
  • Page 3 CDX-F5700/F5705X Notes on CD-Rs (recordable CDs)/CD-RWs (rewritable UNLEADED SOLDER CDs) Boards requiring use of unleaded solder are printed with the lead This unit can play the following discs: free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.)

  • Page 4: Table Of Contents

    CDX-F5700/F5705X TABLE OF CONTENTS 1. GENERAL Location of Controls (US, Canadian Model) ......5 Location of Controls (AEP, UK Model) ........5 Location of Controls (E Model) ..........5 Connections (US, Canadian Model) ........6 Connections (AEP, UK Model) ..........7 Connections (E Model) ............

  • Page 5: General

    CDX-F5700/F5705X SECTION 1 GENERAL This section is extracted from instruction manual. (US, Canadian Model) (E Model) (AEP, UK Model)

  • Page 6: Connections (Us, Canadian Model)

    CDX-F5700/F5705X Connections (US, Canadian Model)

  • Page 7: Connections (Aep, Uk Model)

    CDX-F5700/F5705X Connections (AEP, UK Model)

  • Page 8: Connections (E Model)

    CDX-F5700/F5705X Connections (E Model) • US, Canadian Model • AEP, UK Model...
  • Page 9 CDX-F5700/F5705X • E Model...

  • Page 10: Disassembly

    CDX-F5700/F5705X SECTION 2 DISASSEMBLY Note : This set can be disassemble according to the following sequence. 2-1. SUB PANEL ASSY (Page 11) 2-2. CD MECHANISM BLOCK (Page 11) 2-10. SERVO BOARD 2-3. MAIN BOARD 2-4. CHASSIS (T) SUB ASSY (Page 15)

  • Page 11: Sub Panel Assy

    CDX-F5700/F5705X Note : Follow the disassembly procedure in the numerical order given. 2-1. SUB PANEL ASSY 3 two claws 2 two claws CN370 1 two screws (+PTT 2.6 x 6) 5 sub panel assy 2-2. CD MECHANISM BLOCK 7 bracket (CD)

  • Page 12: Main Board

    CDX-F5700/F5705X 2-3. MAIN BOARD 5 screw 1 three ground point screws (+PTT 2.6 x 6) (+PTT 2.6 x 6) 4 CN410 cord (RCA) 2 two screws 3 MAIN board (+PTT 2.6 x 8) insulating sheet 2-4. CHASSIS (T) SUB ASSY...

  • Page 13: Roller Arm Assy

    CDX-F5700/F5705X 2-5. ROLLER ARM ASSY 3 washer 5 roller arm assy 4 worm wheel (RA) 2 spring (RAR) 1 spring (RAL) 2-6. CHASSIS (OP) ASSY qa chassis (OP) assy 0 coil spring (damper) lever (D) 4 washer 1 CN1 9 two coil springs (damper)

  • Page 14: Optical Pick-Up

    CDX-F5700/F5705X 2-7. OPTICAL PICK-UP 2 chucking arm sub assy 5 claw 1 tension coil spring (CHKG) 7 optical pick-up 6 main shaft 4 rack (SL) 3 screw (+B 1.4 x 5) 2-8. SL MOTOR ASSY (M902) 1 screw (+P 1.4 x 1.8)

  • Page 15: Le Motor Assy (M903)

    CDX-F5700/F5705X 2-9. LE MOTOR ASSY (M903) 8 screw 0 woam (LEB) assy (+M 1.7 x 2.5) 9 bearing (LEB) 2 washer qa screw (+M 1.7 x 2.5) qf two toothed lock screws 3 gear (LE1) (+M 1.4 ) lever (D)

  • Page 16: Diagrams

    CDX-F5700/F5705X SECTION 3 DIAGRAMS 3-1. IC PIN DESCRIPTIONS • IC3 CXD3059BR (DIGITAL SERVO/DIGITAL SIGNAL PROCESSOR) (SERVO BOARD (1/2)) Pin No. Pin Name Pin Description MIRR Mirrer signal input/output DFCT Defect signal input/output Focus OK signal input/output — Ground pin LOCK Not used in this set.
  • Page 17 CDX-F5700/F5705X Pin No. Pin Name Pin Description CLTV VCO1 control voltage input FILO Filter signal output for master PLL FILI Filter signal input for master PLL Charge pump output for master PLL AVDD5 — Analog power supply pin DDVROUT DC/DC converter output...
  • Page 18 CDX-F5700/F5705X Pin No. Pin Name Pin Description XLAT Latch signal input CLOK Serial data transfer clock signal input — Digital power supply pin for internal SENS SENS signal output SCLK Clock signal input for SENS serial data read out ATSK...
  • Page 19 Power supply pin for D/A output converter (+3.3 V) Not used in this set. (Open) DAVSS — Ground pin for D/A output converter UNISO SONY-BUS data signal output UNISI SONY-BUS data signal input UNICKO SONY-BUS clock signal output 7, 8 RE 0, RE 1 Rotary encoder signal input Not used in this set.
  • Page 20 CDX-F5700/F5705X Pin No. Pin Name Pin Description E2P SIO Serial data signal input/output for EEPROM communication DOORIND Sub panel power supply control signal output AMPSTB Power regulator IC standby signal output Not used in this set. (Open) LCDSO Serial data signal output to the LCD driver Flash: UART serial output...

  • Page 21: Block Diagram -Cd Section

    CDX-F5700/F5705X 3-2. BLOCK DIAGRAM — CD SECTION — • R-ch is omitted due to same as L-ch. • Siganal Path : CD PLAY DETECTOR MAIN RFACO 42 RFACI ASYO 45 ASYI AOUT1 CD-L SECTION (Page 22) AOUT2 R-CH RF AMP,DIGITAL SERVO,...

  • Page 22: Block Diagram -Main Section

    CDX-F5700/F5705X 3-3. BLOCK DIAGRAM — MAIN SECTION — SOUND CONTROL, ELECTRONIC VOLUME IC351 J451(2/2) OUTLR AUDIO OUT REAR MUTE R-CH J451(1/2) Q452 4 IN1L+ OUTLF AUDIO OUT R-CH 7 IN1R+ FRONT MUTE R-CH 5 IN1- AUDIO IN Q440 CN410 R-CH...

  • Page 23: Block Diagram -Display Section

    CDX-F5700/F5705X 3-4. BLOCK DIAGRAM — DISPLAY SECTION — 3-5. CIRCUIT BOARDS LOCATION SYSTEM CONTROL SERVO board LCD DRIVER IC600 (3/3) IC901 SENSOR board • LCD SO LCD CKO LCD CLK LCD CE LCD CE • KEY MATRIX 94 KEYIN1 S910-922 LCD901 •...

  • Page 24: Note For Printed Wiring Boards And Schematic Diagrams

    CDX-F5700/F5705X 3-6. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS 3-7. WAVEFORMS THIS NOTE IS COMMON FOR PRINTED WIRING — Servo Board — BOARDS AND SCHEMATIC DIAGRAMS. — Main Board — (MODE: CD PLAY) (In addition to this, the necessary note is printed in each block.)

  • Page 25: Printed Wiring Boards -Cd Mechanism Section

    CDX-F5700/F5705X 3-8. PRINTED WIRING BOARDS — CD MECHANISM SECTION — • Refer to page 23 for Circuit Boards Location. : Uses unleaded solder. (Page 30) • Semiconductor Location Ref. No. Location C-10...

  • Page 26: Schematic Diagram -Cd Mechanism Section (1/2)

    CDX-F5700/F5705X 3-9. SCHEMATIC DIAGRAM — CD MECHANISM SECTION (1/2) — • Refer to page 24 for Waveforms. TP59 TP60 TP57 TP61 TP180 TP181 TP129 TP72 TP123 TP128 TP139 TP53 TP140 TP56 TP55 TP167 TP54 TP48 TP49 TP71 TP175 TP47 R114...

  • Page 27: Schematic Diagram -Cd Mechanism Section (2/2)

    CDX-F5700/F5705X • Refer to page 24 for Waveform. 3-10. SCHEMATIC DIAGRAM — CD MECHANISM SECTION (2/2) — • Refer to page 34 for IC Block Diagrams. (Page 26) R136 R146 R117 IC B/D TP11 TP12 R140 TP19 TP20 TP17 M903...

  • Page 28: Schematic Diagram -Main Section (1/2)

    CDX-F5700/F5705X • Refer to page 24 for Waveform. 3-11. SCHEMATIC DIAGRAM — MAIN SECTION (1/2) — • Refer to page 34 for IC Block Diagrams. C303 C302 C308 JC302 C306 J451 C301 C444 C424 C304 C305 C307 C309 C317 IC B/D...

  • Page 29: Schematic Diagram -Main Section (2/2)

    CDX-F5700/F5705X • Refer to page 24 for Waveforms. 3-12. SCHEMATIC DIAGRAM — MAIN SECTION (2/2) — • Refer to page 35 for IC Block Diagram. (Page 28) IC501 Q501 R531 C506 R540 R514 R546 R542 (Page 26) C502 C501 S501...

  • Page 30: Printed Wiring Board -Main Section

    CDX-F5700/F5705X 3-13. PRINTED WIRING BOARD — MAIN SECTION — • Refer to page 23 for Circuit Boards Location. : Uses unleaded solder. US,CND,E MODEL AEP,UK MODEL • Semiconductor Location Ref. No. Location Ref. No. Location D704 D101 D705 D102 D706...

  • Page 31: Printed Wiring Board -Sub Section

    CDX-F5700/F5705X 3-14. PRINTED WIRING BOARD — SUB SECTION — • Refer to page 23 for Circuit Boards Location. : Uses unleaded solder. (Page 32) (Page 30) CN802 3-15. SCHEMATIC DIAGRAM — SUB SECTION — CN801 CN802 R801 LED801 D801 (Page 33)

  • Page 32: Printed Wiring Board -Display Section

    CDX-F5700/F5705X 3-16. PRINTED WIRING BOARD — DISPLAY SECTION — • Refer to page 23 for Circuit Boards Location. : Uses unleaded solder. R940 R941 R942 R922 R921 R918 R917 R920 R919 R916 R903 R915 R944 R945 R943 R993 D981 R888...

  • Page 33: Schematic Diagram -Display Section

    CDX-F5700/F5705X 3-17. SCHEMATIC DIAGRAM — DISPLAY SECTION — R981 R982 R983 R974 R992 R932 R930 R934 R936 R938 R971 LED924 LED925 LED926 LED927 R931 R933 R935 R937 R939 C971 IC971 IC981 LED903 LED905 LED918 R851 R853 R855 R857 R861 R863...

  • Page 34: Ic Block Diagrams

    CDX-F5700/F5705X 3-18. IC BLOCK DIAGRAMS IC7 R1114N151D-TR-FA (SERVO Board (2/2)) IC1 LA6560-TE-L-E (SERVO Board (2/2)) 36 S-GND 5 VOUT THERMAL SHUTDOWN INPUT 35 VCONT VCC2 BTL-AMP MUTE 34 MUTE OUTPUT OUTPUT ON/OFF VLO- CONTROL 33 VIN4 CURRENT VREF LIMIT VLO+...
  • Page 35 CDX-F5700/F5705X IC351 TDA7416 (MAIN Board (1/2)) 30 29 24 23 HIGH PASS MIXER FILTER2 SOFT STEP FADER ACOUTR SOFT STEP ACINSW FADER ACOUTSW HIGH PASS MIXER 22 OUTRF FILTER WOOFER SOFT STEP OUTRR FILTER FADER 7 BAND EQUALIXER 20 AC2INR...
  • Page 36 CDX-F5700/F5705X IC50 TDA7333-013TR (MAIN Board (1/2)) BAND PASS SINC4 SIGMA DELTA INTERPOLATOR FILTER FILTER CONVERTER VDDA INTN REF3 SDAOUT REF2 SDAIN RDSREG BUFFER TEST LOGIC REF1 INTN C/SPI DEMODULATOR & & & INTERFACE SYNCHRONIZATION CONTROL PIN MUX'S TESTREG LOGIC OSCILLATOR...

  • Page 37: Exploded Views

    CDX-F5700/F5705X SECTION 4 EXPLODED VIEWS NOTE: • The mechanical parts with no reference • Color Indication of Appearance Parts The components identified by mark 0 or dotted line with mark number in the exploded views are not supplied. Example : 0 are critical for safety.

  • Page 38: Front Panel Section

    CDX-F5700/F5705X 4-2. FRONT PANEL SECTION not supplied (KEY board) not supplied LCD901 not supplied not supplied not supplied not supplied supplied Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark A-3372-901-A OVERALL ASSY, FRONT PANEL (AEP,UK) 1-780-104-11 CONDUCTIVE BOARD, CONNECTION...

  • Page 39: Cd Mechanism Section (1)

    CDX-F5700/F5705X 4-3. CD MECHANISM SECTION (1) (MG-611MA-186//Q) not supplied (SENSOR board) not supplied not supplied Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark A-3372-444-A CHASSIS (T) SUB ASSY 3-352-758-31 SCREW (M1.7), TOOTHED LOCK 3-253-729-11 SPRING (LTR), TENSION COIL...

  • Page 40: Cd Mechanism Section (2)

    CDX-F5700/F5705X 4-4. CD MECHANISM SECTION (2) (MG-611MA-186//Q) (including M901) M902 not supplied not supplied not supplied not supplied The components identified by Les composants identifiés par une mark 0 or dotted line with mark marque 0 sont critiques pour 0 are critical for safety.

  • Page 41: Cd Mechanism Section (3)

    CDX-F5700/F5705X 4-5. CD MECHANISM SECTION (3) (MG-611MA-186//Q) M903 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 3-348-993-01 WASHER 3-259-467-11 BRACKET (LEM) 3-259-024-01 WHEEL (RA), WORM 3-345-648-91 SCREW (M1.4), TOOTHED LOCK A-3372-441-A ARM ASSY, ROLLER A-3372-450-A WORM (LEB) ASSY...

  • Page 42: Cd Mechanism Section (4)

    CDX-F5700/F5705X 4-6. CD MECHANISM SECTION (4) (MG-611MA-186//Q) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 3-259-429-11 WHEEL (LE), WORM 3-899-829-01 WASHER (SLIT) 3-344-223-01 WASHER 3-259-032-01 GEAR (LE2) 3-259-470-11 GEAR (LE1) A-3337-998-A CHASSIS (M) BLOCK ASSY 3-253-755-12 LEVER (D)

  • Page 43: Electrical Parts List

    CDX-F5700/F5705X SECTION 5 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in • Items marked “*” are not stocked since The components identified by mark 0 or dotted line with mark the parts list may be different from the they are seldom required for routine service.
  • Page 44 CDX-F5700/F5705X Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R866 1-216-811-11 METAL CHIP 1/10W R942 1-216-812-11 METAL CHIP 1/10W R867 1-216-812-11 METAL CHIP 1/10W R943 1-216-811-11 METAL CHIP 1/10W R868 1-216-811-11 METAL CHIP 1/10W R944 1-216-812-11 METAL CHIP...
  • Page 45 CDX-F5700/F5705X MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark A-3283-551-A MAIN BOARD, COMPLETE (AEP,UK) C320 1-162-970-11 CERAMIC CHIP 0.01uF A-3283-560-A MAIN BOARD, COMPLETE (F5705X) C329 1-162-970-11 CERAMIC CHIP 0.01uF A-3283-561-A MAIN BOARD, COMPLETE (E) C351...
  • Page 46 CDX-F5700/F5705X MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C506 1-126-924-11 ELECT 330uF D603 8-719-056-84 DIODE UDZ-TE-17-7.5B C507 1-162-970-11 CERAMIC CHIP 0.01uF D604 8-719-083-66 DIODE UDZS-TE17-18B C510 1-162-916-11 CERAMIC CHIP 12PF D605 8-719-083-66 DIODE UDZS-TE17-18B...
  • Page 47 CDX-F5700/F5705X MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark JC501 1-216-296-11 SHORT CHIP Q501 8-729-027-23 TRANSISTOR DTA114EKA-T146 JC502 1-216-296-11 SHORT CHIP Q600 8-729-047-76 TRANSISTOR FMC2A-T148 JC503 1-216-864-11 SHORT CHIP Q601 8-729-027-23 TRANSISTOR DTA114EKA-T146 JC504 1-216-296-11 SHORT CHIP...
  • Page 48 CDX-F5700/F5705X MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R351 1-216-845-11 METAL CHIP 100K 1/10W R521 1-216-845-11 METAL CHIP 100K 1/10W R352 1-216-833-11 METAL CHIP 1/10W (AEP,UK) R353 1-216-833-11 METAL CHIP 1/10W R522 1-216-821-11 METAL CHIP...
  • Page 49 CDX-F5700/F5705X MAIN SENSOR SERVO Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < TUNER > 1-162-970-11 CERAMIC CHIP 0.01uF 1-162-970-11 CERAMIC CHIP 0.01uF A-3220-961-A TUNER UNIT (TUX-032//Q3) 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 1-107-826-11 CERAMIC CHIP 0.1uF <...
  • Page 50 CDX-F5700/F5705X SERVO Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 8-729-928-90 TRANSISTOR DTC114EE 1-218-941-81 RES-CHIP 1/16W 1-218-990-11 SHORT CHIP < RESISTOR > 1-218-973-11 RES-CHIP 1/16W 1-218-945-11 RES-CHIP 1/16W 1-218-941-81 RES-CHIP 1/16W 1-218-941-81 RES-CHIP 1/16W 1-218-971-11 RES-CHIP...
  • Page 51 CDX-F5700/F5705X SERVO Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < VIBRATOR > ACCESSORIES ************ 1-795-561-21 VIBRATOR, CERAMIC (16.9344MHz) 1-795-822-21 VIBRATOR, CERAMIC (18.43MHz) 1-476-526-14 REMOTE COMMANDER (RM-X114) 3-230-047-01 LID, BATTERY CASE (for RM-X114) ************************************************************* 3-263-695-11 MANUAL, INSTRUCTION (ENGLISH,GERMAN,...
  • Page 52 CDX-F5700/F5705X REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 2004. 02...
