Eaton COOPER POWER Series Installation Instructions Manual
Metal-enclosed, pad-mounted capacitor banks
Hide thumbs
Also See for COOPER POWER Series:
- Installation, operation and maintenance manual (189 pages) ,
- Installation, operation and maintenance instructions (128 pages) ,
- Installation and operation instructions manual (52 pages)
Related Manuals for Eaton COOPER POWER Series
Summary of Contents for Eaton COOPER POWER Series

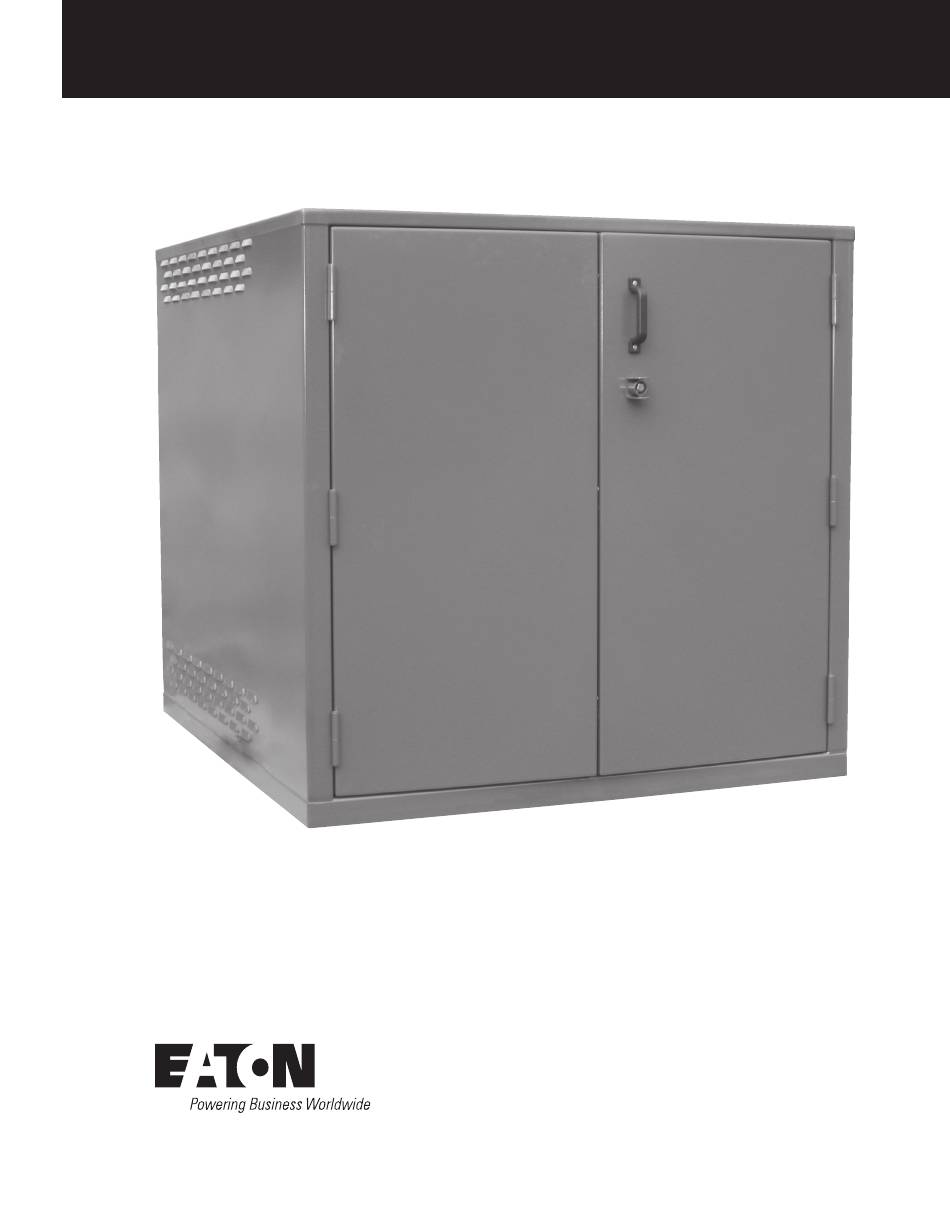

- Page 1 COOPER POWER Power Capacitors SERIES Effective November 2016 MN230009EN Supersedes May 2012 (S230-55-1) Metal-enclosed, pad-mounted capacitor banks installation instructions...
- Page 2 CONTENTS OF THIS DOCUMENT SHALL NOT BECOME PART OF OR MODIFY ANY CONTRACT BETWEEN THE PARTIES. In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or other-wise for any special, indirect, incidental or consequential damage or loss whatsoever, including but not limited to...
-
Page 3: Table Of Contents
Contents DISCLAIMER OF WARRANTIES AND LIMITATION OF LIABILITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I SAFETY FOR LIFE . -
Page 4: Hazard Statement Definitions
FOR LIFE Safety for life Eaton’s Cooper Power series products meet or exceed all applicable industry standards relating to product safety. We actively promote safe practices in the use and maintenance of our products through our service literature, instructional training programs, and the continuous efforts of all Eaton employees involved in product design, manufacture, marketing and service. -
Page 5: Product Information
The performance of Eaton’s Cooper Power series pad-mounted capacitor banks is warranted for a period Shipment of one year from the date of shipment. Eaton will, at its Pad-mounted capacitor banks are packaged on pallets/skids option, correct, by repair or replacement, components... -
Page 6: Instruction Manual
Metal-enclosed, pad-mounted capacitor banks installation instructions Safety precautions Instruction manual Instruction manuals will be forwarded to you prior to the Lift all banks with the supplied lifting lugs. Do not shipment of the equipment and a copy will be enclosed lift any equipment by bushings or insulators unless with the shipment. - Page 7 Metal-enclosed, pad-mounted capacitor banks installation instructions Figure 2 . Typical pad layout Figure 3 . Typical pad-mounted capacitor bank equipment front section INSTALLATION INSTRUCTIONS MN230009EN November 2016...
-
Page 8: Equipment Description
Metal-enclosed, pad-mounted capacitor banks installation instructions Figure 4 . Typical pad-mounted capacitor bank equipment rear section Equipment description Moving capacitor equipment When the pad-mounted capacitor bank is to be moved, Pad-mounted capacitor banks (Figures 1 and 3) are suitable it must be lifted using the lifting lugs provided. The lifting for indoor or outdoor installation. -
Page 9: Grounding
Many electrical joints can relax due to material continuous current rating of at least 35 percent more than deformation or heavy vibration during shipping. Eaton’s the nominal current rating of the bank. The switching device Power System division recommends checking the should be capable of energizing and de-energizing the bank torque all electrical joints before initial energization. -
Page 10: Initial Energization
For operation at overvoltages beyond those shown in unbalance detection relay. A small inherent unbalance Table 1, consult your Eaton’s Cooper Power series product may be nulled if the relay has such capability. representative. -
Page 11: Recommended Refusing Procedures
When group fusing is used, other items are also protected by the fuse. Eaton recommends verifying all components for proper function prior to re-energizing the bank. - Page 12 2300 Badger Drive Waukesha, WI 53188 United States Eaton.com/cooperpowerseries © 2016 Eaton All Rights Reserved Eaton is a registered trademark. For Eaton's Cooper Power series product Printed in USA information Publication No. MN230009EN call 1-877-277-4636 or visit: All trademarks are property www.eaton.com/cooperpowerseries.
