Repair manual
Replacing
the silicone cover
Instructions
Caution: Make sure that the nozzles are cold before you start the
replacement. Do not perform the following steps if the nozzles are
hot as there is a risk of burning yourself.
Tip:
All orientations are noted as seen from the front of the printer.
Equipment/supplies needed
Tools
•
Screwdriver (any, optional)
Parts
•
1x 2161 - Silicone nozzle cover
Time
•
2 minutes
1
/ 3
Page.
For internal use only
Advertisement
Related Manuals for Ultimaker UM3
Summary of Contents for Ultimaker UM3

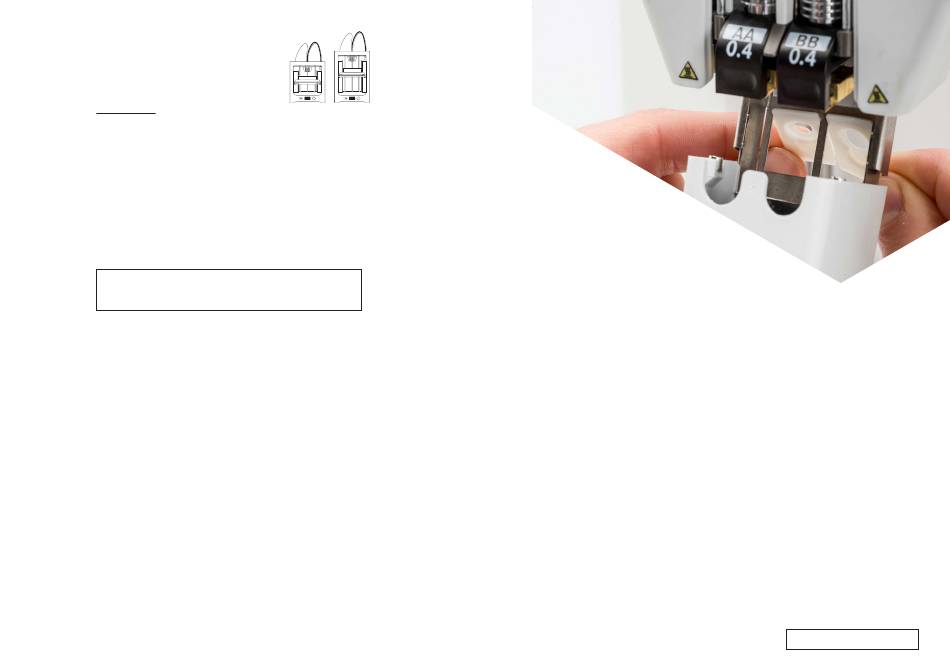

- Page 1 Repair manual Replacing the silicone cover Instructions Caution: Make sure that the nozzles are cold before you start the replacement. Do not perform the following steps if the nozzles are hot as there is a risk of burning yourself. Tip: All orientations are noted as seen from the front of the printer.
- Page 2 Disassembly 1. Open the fan bracket 2. Remove the old silicone cover • • Move the print head to the front and place it approximately in the Push the left side of the silicone cover out through the fan bracket middle of the X axle for easier access.
- Page 3 Reassembly 1. Place the new silicone cover 2. Insert the top and bottom tabs 3. Align the left and right side • • • Hold the silicone cover with the flat side facing down and the From the underside of the fan bracket, first insert the two tabs at Press on the underside of the silicone cover at the left and right larger hole on the right.
