Signature Hardware CORNER TOILET Installation Instructions

CORNER TOILET
INSTALLATION INSTRUCTIONS
Before installing, read entire Toilet Installation Instructions. Observe all local building and safety codes.
For the following installation instructions for your new toilet it is assumed that any old fixtures have been removed and
any repairs to the water supply and/or toilet flange have been completed.
Unpack and inspect the product for any shipping damages. If you find damages, do not install. Contact Customer Service
at 1-866-855-2284. If you need assistance or have questions while installing your toilet, contact Customer Service.
We recommend consulting a professional if you are unfamiliar with installing bathroom fixtures. Signature Hardware
accepts no liability for any damage to the floor, walls, plumbing or for personal injury during installation.
Shut off the water supply lines where the new toilet is being installed.
TOOLS AND MATERIALS:
Tape Measure
Shim
ROUGH-IN

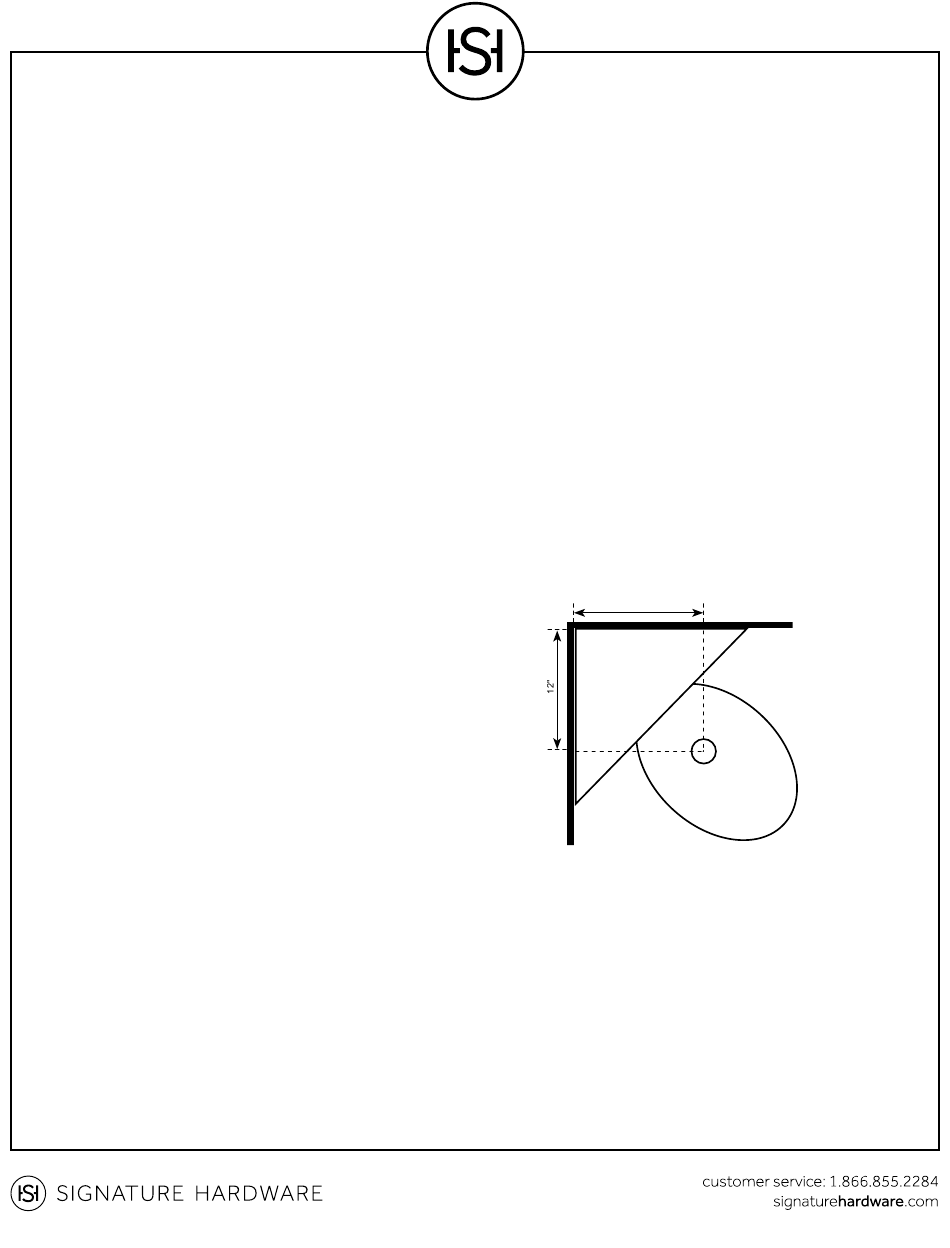

1. To determine the rough-in location for your corner
toilet measure and mark the rough-in length (12" for
this example) out from the finished corner on each
wall (see image).
2. Use a straight edge to draw two perpendicular lines
from the marks created in the previous step. The
intersection of these lines will mark the rough-in
location.
INSTALLATION
1. Press the new wax ring into place on the toilet flange on the floor with the flat side down and the tapered edge up.
Apply enough pressure to hold the ring in place during installation but be careful not to press it out of shape.
2. Install the anchor bolts through the toilet flange. The anchor bolts should be pointing upwards so that when the toilet
is placed the bolts will project through the mounting holes on the base of the toilet.
3. When the wax ring and bolts are attached, lift the toilet and align the mounting holes with the anchor bolts on the
floor for proper placement.
4. Set the toilet down on the floor and press in place to form a tight seal with the wax ring. Do not move the toilet after
placement, this could break the watertight seal and cause leakage.
Straight Edge
Adjustable Wrench
Level
Hacksaw
12"
12"
12"
Corner Toilet Installation Instructions
Pencil
Latex Caulk or Tile Grout
1
