3onedata ICP222-1T2F-2CI-TB-P Quick Installation Manual

ICP222-1T2F-2CI-TB-P(12-48VDC)
CAN Server
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili, Nanshan District, Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
【Package Checklist】
Please check the integrity of package and accessories while
first using the product.
1. CAN server x 1 (including terminal blocks)
2. Certification
3. DIN-Rail mounting attachment
4. Warranty card
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
This product is an industrial CAN device-networking server.
The model is ICP222-1T2F-2CI-TB-P(12-48VDC) (2 CAN-Bus
+ 2 100M fiber ports + 1 100M copper port).

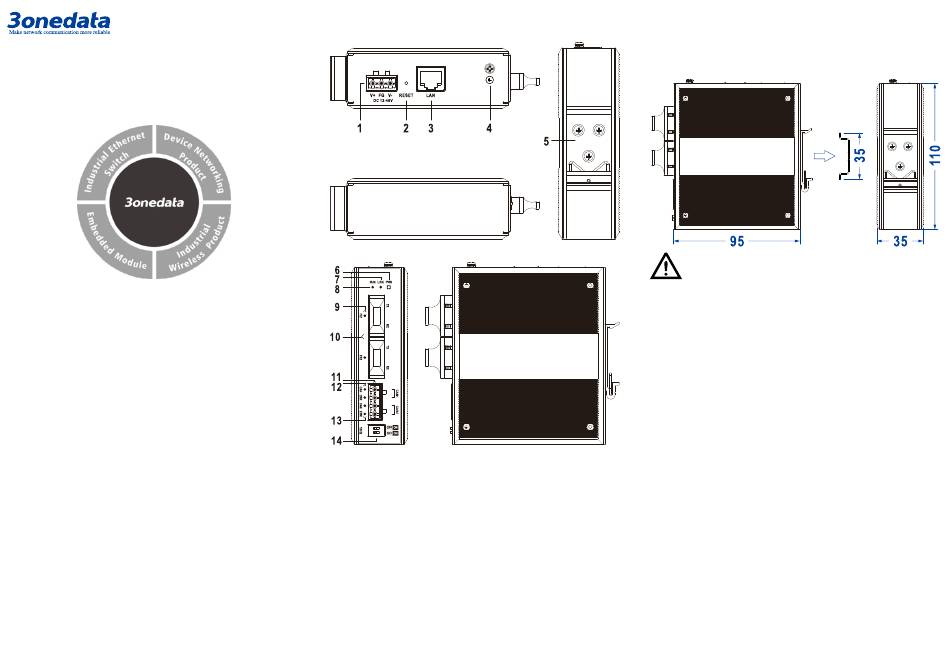

【Panel Design】
Top view, bottom view and rear view

Main view and right view

1. Power supply input terminal block
2. RESET button
3. 10/100Base-T(X) 100M copper port (LAN)
4. Grounding screw
5. DIN-Rail mounting kit
6. Power supply indicator PWR
7. Copper port indicator (LINK)
8. Running indicator (RUN)
9. Fiber port indicator (FX1-FX2)
10. 100Base-FX 100M fiber port (FX1-FX2)
11. CAN-Bus interface (CAN1-CAN2)
12. CAN indicator (CAN)
13. CAN error indicator (ERR)
14. DIP switch of terminal resistance (120Ω)
【Mounting Dimension】
Unit: mm
Notice Before Mounting:
Don't place or install the device in area near water or

moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power

supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;

please don't directly contact to avoid scalding.
【DIN-Rail Mounting】
The product adopts 35mm standard DIN-Rail mounting which
is suitable for most industrial scenes, mounting steps as
follows:
