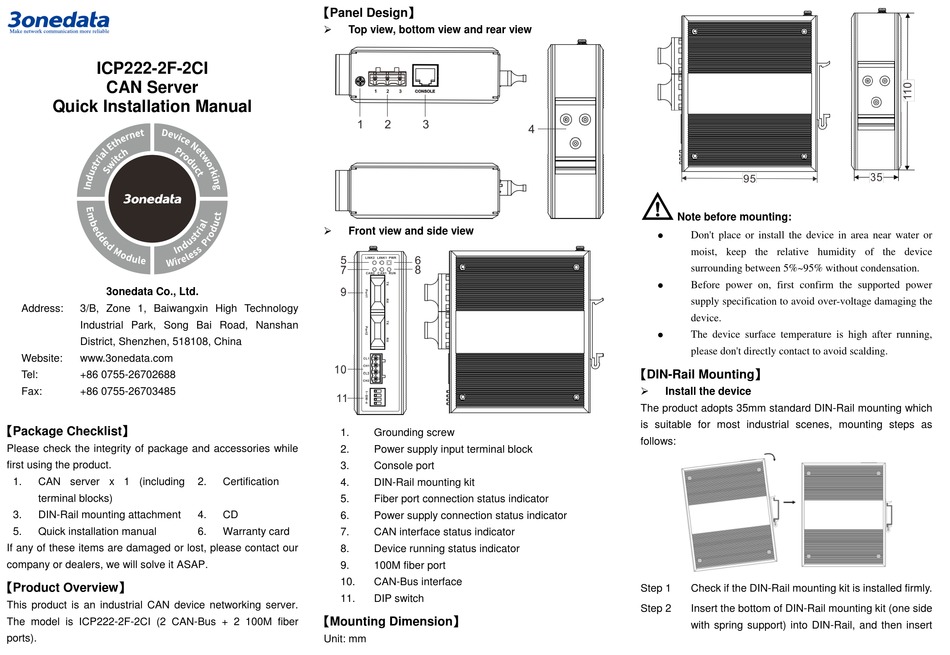

3onedata ICP222-2F-2CI Quick Installation Manual

ICP222-2F-2CI
CAN Server
Quick Installation Manual
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Song Bai Road, Nanshan
District, Shenzhen, 518108, China
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
【Package Checklist】
Please check the integrity of package and accessories while
first using the product.
1. CAN server x 1 (including
terminal blocks)
3. DIN-Rail mounting attachment
5. Quick installation manual
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】

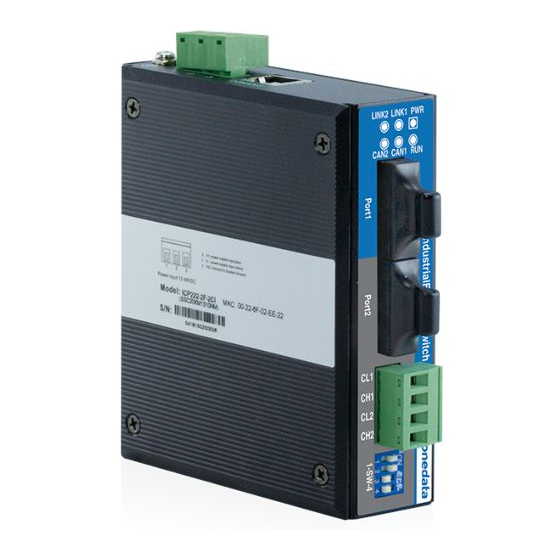

This product is an industrial CAN device networking server.
The model is ICP222-2F-2CI (2 CAN-Bus + 2 100M fiber
ports).
【Panel Design】

Top view, bottom view and rear view

Front view and side view
1. Grounding screw
2. Power supply input terminal block
3. Console port
2. Certification
4. DIN-Rail mounting kit
5. Fiber port connection status indicator
4. CD 6. Power supply connection status indicator
6. Warranty card
7. CAN interface status indicator
8. Device running status indicator
9. 100M fiber port
10. CAN-Bus interface
11. DIP switch
【Mounting Dimension】
Unit: mm
Note before mounting:
Don't place or install the device in area near water or

moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
 Before power on, first confirm the supported power
supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running,

please don't directly contact to avoid scalding.
【DIN-Rail Mounting】

Install the device
The product adopts 35mm standard DIN-Rail mounting which
is suitable for most industrial scenes, mounting steps as
follows:
Step 1 Check if the DIN-Rail mounting kit is installed firmly.
Step 2 Insert the bottom of DIN-Rail mounting kit (one side
with spring support) into DIN-Rail, and then insert
