NP5000 Series
Serial Server
Quick Installation Guide
3onedata Co., Ltd.
Address:
3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili, Nanshan District, Shenzhen
www.3onedata.com
Website:
+86 0755-26702688
Tel:
+86 0755-26703485
Fax:
Package Checklist
Please check whether the package and accessories are intact
while using the device for the first time.
1. Serial Server 2. Lugs
3. Power adapter 4. Straight-through cable
5. Certification 6. Warranty card
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.

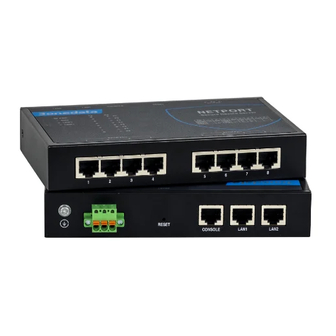

Product Overview
The products are desktop safe serial servers, including the
following models:
Model I. NP5000-1T-1DI(3IN1)-DB-P(12-48VDC) (1 100M
copper port + 1 3IN1 DB9 serial port with isolation +
1 12~48VDC power supply)
Model II. NP5000-1T-2DI(3IN1)-DB-P(12-48VDC) (1 100M
copper port + 2 3IN1 serial ports with isolation + 1
12~48VDC power supply)
Model III. NP5000-2T-4DI(3IN1)-RJ-P(12-48VDC) (2 100M
copper ports + 4 3IN1 RJ45 serial ports with
isolation + 1 12~48VDC power supply)
Model IV. NP5000-2T-8DI(3IN1)-RJ-P(12-48VDC) (2 100M
copper ports + 8 3IN1 RJ45 serial ports with
isolation + 1 12~48VDC power supply)
Model V. NP5000-2T-4DI(RS-485)-TB-P(12-48VDC) (2
100M copper ports + 4 RS-485 serial ports with
isolation + 1 12~48VDC power supply)
Model VI. NP5000-2T-8DI(RS-485)-TB-P(12-48VDC) (2
100M copper ports + 8 RS-485 serial ports with
isolation + 1 12~48VDC power supply)

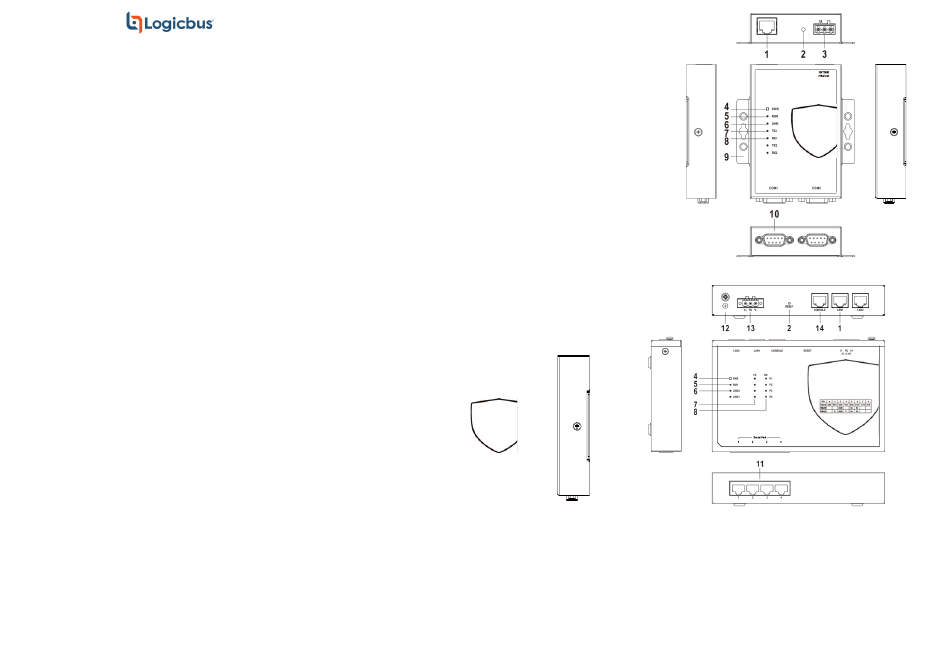

Panel Design
Model I
Model II
Model III
Model IV
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for 3onedata Logicbus NP5000 Series
Summary of Contents for 3onedata Logicbus NP5000 Series
- Page 1 Model VI. NP5000-2T-8DI(RS-485)-TB-P(12-48VDC) (2 100M copper ports + 8 RS-485 serial ports with isolation + 1 12~48VDC power supply) Panel Design Model III 3onedata Co., Ltd. Model I Address: 3/B, Zone 1, Baiwangxin High Technology Industrial Park, Xili, Nanshan District, Shenzhen www.3onedata.com...
-
Page 2: Mounting Dimension
Model III, Model IV, Model V, Model VI Model V 100M copper port Reset button Terminal block 1 for power input Power indicator Running indicator Copper port connection indicator Serial port transmission data indicators Serial port receiving data indicators Lugs RS-485/422/232 DB9 serial port RS-485/422/232 RJ45 serial port Grounding screw... -
Page 3: Power Supply Connection
dimension to mark two screw positions. This series device provides 1 reset button, press the button for Nail M4 screws on the wall and keep 2mm 4-5S then release it to restore factory defaults. Step 2 interspace reserved. Serial Port Connection Hang the device on two screws and slide downward, Step 3 RS-485/422/232 DB9 serial port... -
Page 4: Console Port Connection
RS-485 serial port (Model VI) Copper port has not Model VI provides 8 RS-485 serial established an active network ports and adopts 4 6-pin 5.08mm connection pitch terminal blocks. Each terminal Serial port is not transmitting supports 2 serial ports. The pin data or transmitting data TX(1-2/4/8) definitions of serial port are shown in the following table:... - Page 5 Indicator Power indicator, Running indicator, Copper port connection indicator, Serial port transmission and receiving data indicator Power supply Input power supply 12~48VDC 3-pin 5.08mm Access terminal block pitch terminal blocks Power consumption Model I, Model II No-load: 0.9W@12VDC Full-load: 1.1W@12VDC Model III, Model IV No-load: 3.4W@12VDC Full-load: 4.1W@12VDC...
