Jensen MSR3007 Installation And Operation Manual
Hide thumbs
Also See for MSR3007:
- Installation and operation manual (38 pages) ,
- Quick reference manual (2 pages)
Related Manuals for Jensen MSR3007
Summary of Contents for Jensen MSR3007

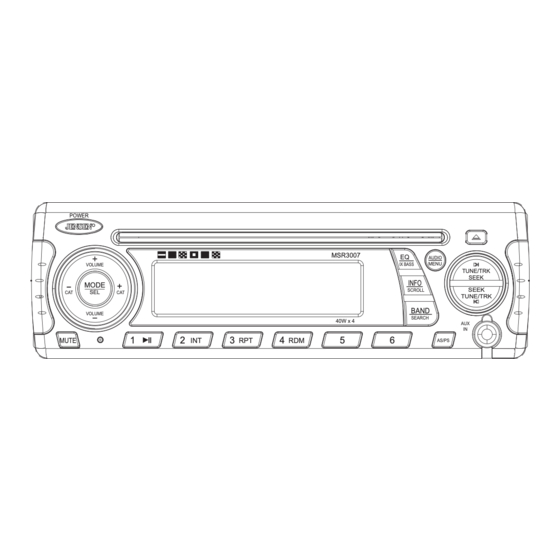

- Page 1 MSR3007 MARINE AUDIO SYSTEM Installation and Operation Manual POWER AUDIO MENU VOLUME IX BASS TUNE/TRK SEEK INFO MODE SEEK SCROLL TUNE/TRK BAND VOLUME SEARCH 40W x 4 MUTE AS/PS...
-
Page 2: Safety Information
MSR3007 SAFETY INFORMATION Compatible Disc Types When Boating Keep the volume level Iow enough to be aware of your surroundings. Table 1: General Disc Information Protect from Water Do not expose the product directly to water, as this can cause electrical shorts, fire or other Diameter/ damage. -
Page 3: Installation
MSR3007 INSTALLATION Before You Begin Carefully slide the radio into the mounting sleeve making sure it is right-side-up until it is fully seated and the spring clips lock it into place. Disconnect Battery Attach one end of the Before you begin, always disconnect the battery negative terminal. - Page 4 MSR3007 WIRING SIRIUS GRAY MODULE SIRIUS WIRED REMOTE BLACK WIRED REMOTE TO iPod WHITE BLACK 3" ANTENNA JACK IPOD VIEW A-A WIRE INSERTION VIEW Power Antenna PIN NO. WIRE COLOR DESCRIPTION Connect to power antenna or amplifier. If GRAY/BLACK RIGHT FRONT SPEAKER (-)
-
Page 5: Basic Operation
MSR3007 BASIC OPERATION • error symbol on the display Use a ball point pin or thin metal object to press the RESET button (18). This may be necessary should the unit display an error code. You can recover factory default settings using the RESUME function located on the system POWER menu. -
Page 6: Auxiliary Input
MSR3007 LOW BATTERY Operation If LOW BATT is set to “ON”, a alarm will sound (8 beeps every 30 sec) when the voltage drops to 10.8V (+/- 0.03V). A visual warning (LOBA) will appear flashing (8 flashes every 30 sec) in the lower left corner of the LCD display. -
Page 7: Preset Stations
MSR3007 TUNER OPERATION Preset Scan Select a band (if needed). Press AS/PS (15) to scan stations stored in the current band. The unit will pause for ten seconds at each preset station. Press AS/PS again to stop scanning when the desired station is reached. -
Page 8: Cd Player Operation
MSR3007 CD PLAYER OPERATION POWER AUDIO VOLUME IX BASS MENU TUNE/TRK SEEK INFO MODE SCROLL SEEK TUNE/TRK BAND VOLUME SEARCH 40W x 4 MUTE AS/PS 17 18 Inserting and Ejecting a Disc Insert a disc, label-side up, into the disc slot (24) with the unit turned on. The unit will automatically draw the disc in and play the first track on the disc. -
Page 9: Sirius Radio Operation
MSR3007 SIRIUS RADIO OPERATION Storing Preset Channels The preset buttons (5-10) can be used to store 6 channels, allowing convenient access to your favorite channels. Programming Channels POWER Select the channel you want to store in memory. Press and hold a preset button (5-10) until the corresponding preset button number AUDIO appears. -
Page 10: Ipod Operation
MSR3007 IPOD OPERATION Search Mode Your iPod will play automatically when the accessory switch is on if connected to the 30 pin connection cable on the back on the unit. Press and hold the BAND/SEARCH button (16) to enter iPod search mode. Press BAND/ SEARCH again to access Playlist, Artist, Album, Genre, Song, or Composer (consecutively). -
Page 11: Care And Maintenance
MSR3007 CARE AND MAINTENANCE TROUBLESHOOTING • Keep the product dry. If it does get wet, wipe it dry immediately. Liquids might contain minerals that can corrode the electronic circuits. Symptom Cause Solution • Keep the product away from dust and dirt, which can cause premature wear of parts. -
Page 12: Specifications
MSR3007 SPECIFICATIONS Signal to Noise Ratio..........> 75 dB Channel Separation .
