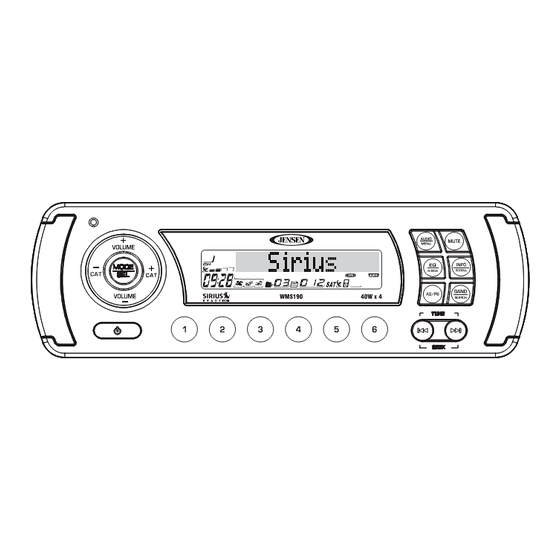

WMS190 MARINE AUDIO SYSTEM Installation and Operation Manual Manual de la Instalación y Operación / Guide d'installation et d'opération WMS190 40W x 4...
WMS190 SAFETY INFORMATION When Boating Keep the volume level Iow enough to be aware of your surroundings. Protect from Water Do not submerge the product directly in water, as this can cause electrical shorts, fire or other damage. Protect from High Temperatures Exposure to direct sunlight for an extended period of time can produce very high temperatures inside your vessel.
Test radio operation by referring to the operating instructions for the unit. Removing the Unit To remove the radio after installation, remove the covers and unscrew the installation screws, and then pull the radio out. Reconnect Battery When wiring is complete, reconnect the battery negative terminal. WMS190...
WMS190 WIRING VIEW A-A WIRE INSERTION VIEW PIN NO. WIRE COLOR DESCRIPTION GRAY/BLACK RIGHT FRONT SPEAKER (-) GRAY RIGHT FRONT SPEAKER (+) VIOLET RIGHT REAR SPEAKER (+) VIOLET/BLACK RIGHT REAR SPEAKER (-) EMPTY NO CONNECTION GREEN LEFT REAR SPEAKER (+)
BASIC OPERATION WMS190 Power On/Off Press any button on the front panel to turn the unit on. Press the POWER button (1) to turn the unit off. The POWER button is illuminated whenever the IGN lead (red wire) is powered, regardless of whether the unit is on or off.
WMS190 Equalizer Press the EQ button (11) to turn on the equalization function and select between five pre- defined bass and treble curves: OFF > POP > JAZZ > CLASSIC > BEAT > ROCK. iX-Bass Press and hold the EQ/IX-BASS button (11) toggle loudness on/off. When listening to music at low volumes, this feature will boost the bass and treble ranges to compensate for the characteristics of human hearing.
TUNER OPERATION WMS190 Select a Band Press the BAND button (16) to change between three FM bands and two AM (MW) bands. Manual Tuning Press the TUNE/TRK >>| or |<< buttons (20, 21) to seek stations up/down step by step.
WMS190 SIRIUS RADIO OPERATION NOTE: Access to Sirius® satellite radio requires installation of a separate Sirius tuner and antenna. Listeners can subscribe to Sirius radio on the internet by visiting www.sirius.com, or by calling (888) 539-SIRIUS. Customers should have their Sirius ID ready (Sirius ID is located on the Sirius tuner, sold separately).
Cannot tune to radio sta- The antenna cable is not tion, auto-seek does not connected. work The signals are too weak. WMS190 Solution If the power supply is properly connected to the vessel’s acces- sory terminal, switch the ignition key to “ACC”.
WMS190 INFORMACIÓN DE SEGURIDAD Cuando Navegue Mantenga el volumen lo suficientemente bajo para escuchar a su alrededor. Protéjalo del Agua No sumerja o sumérjase el producto directamente al agua, pues puede causar cortos eléctricos, incendios o daños. Protéjalo contra las Altas Temperaturas Exposición a luz solar directa por un periodo extendido de tiempo puede producir muy altas...
Como quitar la unidad Para quitar la radio después de la instalación, quite las cubiertas y desatornille los tornillos de instalación, y luego quite la radio. Reconecte la Batería Cuando el cableado se complete, reconecte el terminal negativo de la batería. WMS190...
OPERACIÓN BÁSICA WMS190 Encendido / Apagado Presione cualquier botón en el panel delantero para encender la unidad. Presione el botón POWER (1) para apagar la unidad. El botón POWER se ilumina siempre que enciende la llave IGN (cable rojo), sin importar si la unidad está prendida o apagada.
Page 17
WMS190 NOTA: La configuración por defecto para LOW BATT es apagado ("OFF"). Si se enmudece un audio o el volumen está en 0, el bip audible no se escuchará. Ecualizador Presione el botón EQ (11) para encender la función de ecualización y seleccionar entre cinco curvas de bajos y agudos predefinidos: OFF >...
OPERACIÓN DEL SINTONIZADOR WMS190 Seleccione una Banda Presione el botón BAND (16) para cambiar entre tres bandas FM y dos bandas AM (MW). Sintonía Manual Presione los botones TUNE/TRK >>| o |<< (21, 20) para buscar estaciones una a una hacia arriba o hacia abajo.
WMS190 OPERACIÓN DE RADIO SIRIUS NOTA: El acceso a la radio basada en los satélites de Sirius® requiere la instalación de un sintonizador y de una antena separados de Sirius (no incluidos). Los oyentes pueden suscribir a la radio de Sirius en el Internet por www.sirius.com que visita, o llamando (888) 539-SIRIUS.
El cable de la antena no búsqueda automática no está conectado funciona Las señales son muy débiles WMS190 Solución Si la energía no está conectada adecuadamente al terminal acce- sorio del buque, cambia la llave de ignición a "ACC". Reemplace el fusible.
WMS190 INFORMATIONS SUR LA SECURITE Lorsque vous êtes en bateau Gardez le niveau de volume assez bas pour être conscient de votre environnement. Protéger de l'eau Ne submergez pas et n'exposez pas le produit directement à l'eau. Cela peut produire des court-circuits, incendies ou d'autres types de dommages.
Essayez l'opération de la radio en vous référant aux instructions d'opération pour cet appareil. Enlevez l'appareil Pour enlever la radio après l'installation, enlevez les couvercles et dévissez les écrous d'installation et puis tirez la radio. Rebrancher la pile Lorsque le câblage est terminé, rebranchez la borne négative de la pile. WMS190...
OPERATION DE BASE WMS190 Puissance en marche/en arrêt Appuyez sur n'importe quel bouton sur le panneau d'avant pour mettre l'appareil en marche. Appuyez sur le bouton POWER (1) pour mettre l'appareil en arrêt. Le bouton POWER est illuminé lorsque le fil IGN (fil rouge) est alimenté, peu importe si l'appareil est en marche ou non.
Page 27
WMS190 Operation de pile basse Si LOW BATT est réglé en marche, un alarme va sonner (8 bips toutes les 30 secondes) lorsque le voltage tombe à 10.8V (+ /- 0.03). Un avertissement visuel (LOBA) apparaîtra clignotant (8 clignotements toutes les 30 secondes) dans le coin gauche en bas de l'affichage aux cristaux liquides.
OPERATION TUNER WMS190 Sélectionnez une bande Appuyez sur le bouton BAND (16) pour changer entre trois bandes FM et deux bandes AM (MW). Syntonisation à la main Appuyez sur le bouton TUNE/TRK >>| ou |<< (18, 19) pour chercher des stations vers le haut ou vers le bas, une station à...
WMS190 OPERATION RADIO SIRIUS A NOTER : L'accès à la radio satellite de Sirius® exige l'installation d'un tuner et d'une antenne séparés de Sirius (non inclus). Les auditeurs peuvent souscrire à la radio de Sirius sur l'Internet par www.sirius.com de visite, ou en appelant (888) 539-SIRIUS. Les clients devraient avoir leur availablr d'identification de Sirius (l'identification de Sirius est située sur le tuner de Sirius, vendu séparément).
Les signaux sont trop fai- tionne pas bles WMS190 Solution Si l'alimentation est bien branchée à la borne accessoire du vais- seau, changez le commutateur d'allumage à ACC Remplacez le fusible Ajustez le volume à...
