Toto ALISEI TX442SX Manual

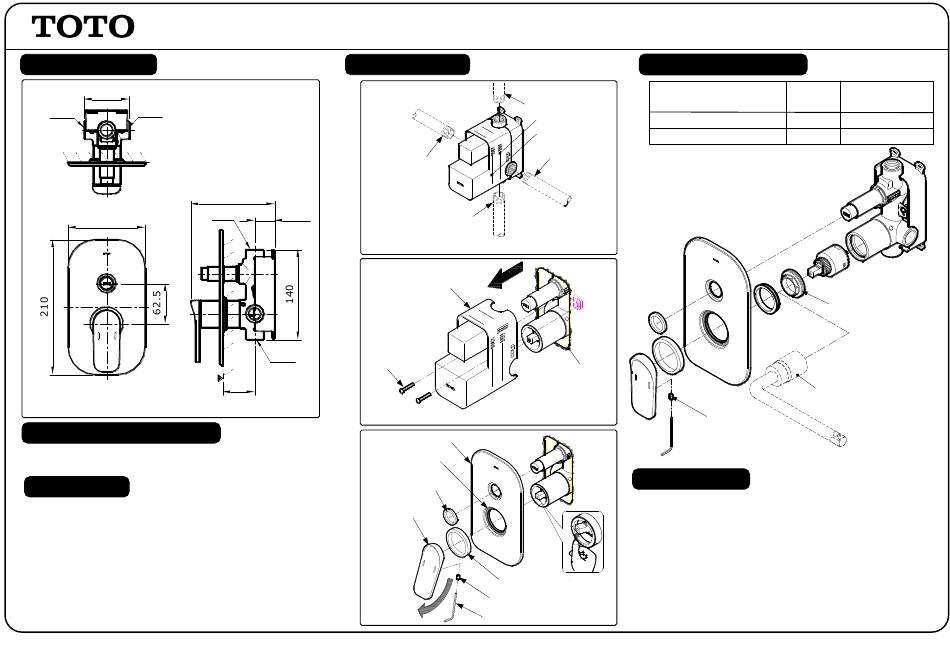

SPECIFICATIONS
70
G½
G½
120
WALL
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa.
2.
Ensure that water supply is clean ( No Sand, Dirt, Etc.).
ATTENTION
Don t use abrasive cleaners or solvents on faucets and
1.
fittings.
2. As the product model is constantly updated, the actual
product may not look the same as it shown in the diagram,
but the basic installation principles are the same.
S060329S
"ALISEI" SINGLE LEVER BATH & SHOWER MIXER W/ DIVERTER TX442SX
2 INSTALLATION
1.
Hot Water
Supply *
131
31
G½
* Pipe supplied by owner
2.
G½
Bolt
0
50
-20
* Remove the cover after the mortar dry
3.
Ring w/ O-Ring
Handle
To Shower Head *
Minimum mortar
Maximum mortar
Cold Water
Supply *
To Bath Spout *
Cover *
Flange
Packing
Ring w/ O-Ring
Bolt
Hex. Key
TROUBLESHOOTING
PROBLEM
Water leaks around the handle
Handle is loose
Mortar
2. BOLT
MAINTENANCE
All Finishes : Clean the finish with mild soap and warm water.
Wipe entire surface completely dry with clean soft cloth. Many
cleaners may contain chemicals, such as ammonia, chlorine,
toilet cleaner etc. which could adversely affect the finish and
are not recommended for cleaning
CHECK
SOLUSI
POINT
1
Tighten
2 Tighten
1. CONNECTING NUT
Use Hex. Socket Key
(Not Include)
R2
