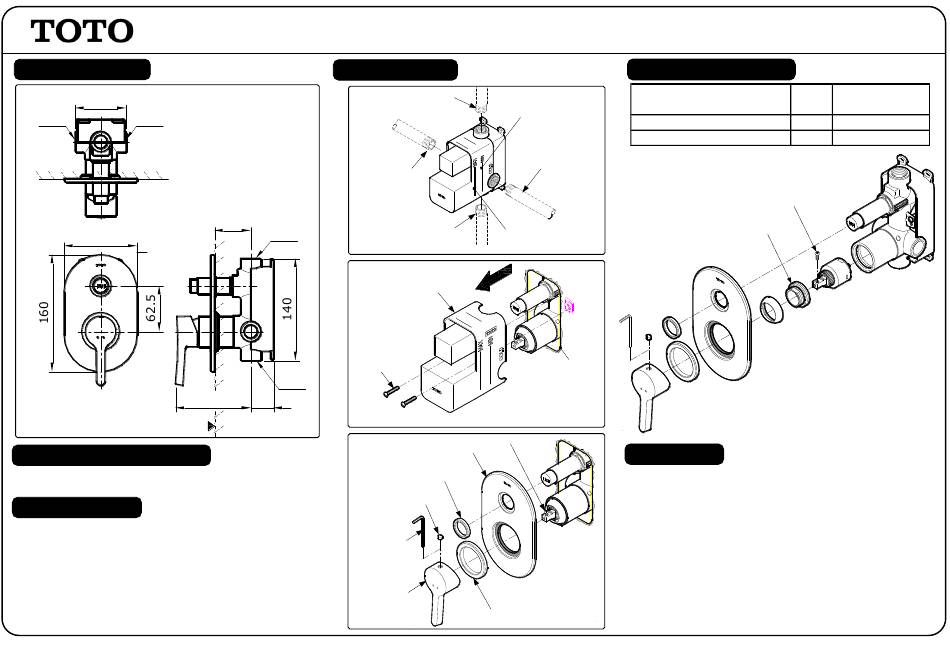

Toto PLANO TX442SPN Manual

SPECIFICATIONS
70
G½ G½
100
WALL
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean ( No Sand, Dirt, Etc.).
MAINTENANCE
All Finishes : Clean the finish with mild soap and warm water.
Wipe entire surface completely dry with clean soft cloth. Many
cleaners may contain chemicals, such as ammonia, chlorine,
toilet cleaner etc. which could adversely affect the finish and
are not recommended for cleaning
S060226N
"PLANO"
SINGLE LEVER BATH & SHOWER MIXER W/ DIVERTER TX442SPN
INSTALLATION
1.
To Shower Head *
Hot Water
Supply *
0
50
-20
G½
* Pipe supplied by owner
2.
Bolt
G½
103 31
* Remove the cover after the mortar dry
3.
Hex. Key
Handle
Minimal
Completion wall
surface
Cold Water
Supply *
Maxima l
To Bath Spout *
Completion wall
surface
Cover *
Bolt
Flange
w/ Packing
Ring
w/ O-Ring
Cap
Ring
w/ O-Ring
TROUBLESHOOTING
PROBLEM
Water leaks around the handle
Handle is loose
1. CONNECTING NUT
Mortar
ATTENTION
1. Don t use abrasive cleaners or solvents on faucets and
fittings.
2. As the product model is constantly updated, the actual
product may not look the same as it shown in the diagram,
but the basic installation principles are the same.
CHECK
SOLUTION
POINT
1 Tighten
2 Tighten
2. BOLT
R5
