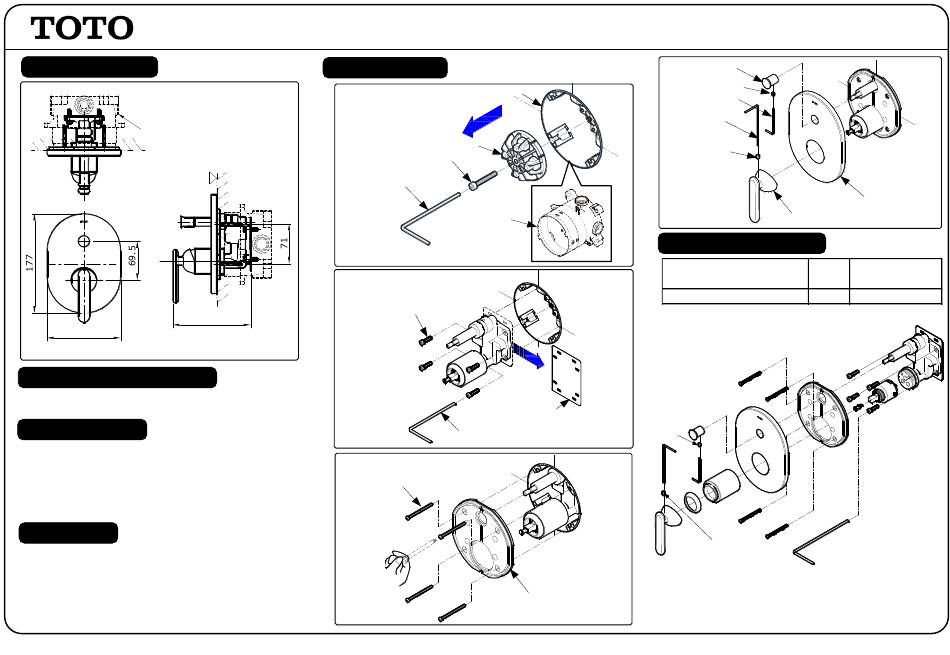

Toto HAYON TX442SY Quick Start Manual

SPECIFICATIONS

TBN01001J
(Not Include)
WALL
131

OPERATING CONDITIONS

1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean ( No Sand, Dirt, Etc.).

MAINTENANCE

All Finishes : Clean the finish with mild soap and warm
water. Wipe entire surface completely dry with clean soft
cloth. Many cleaners may contain chemicals, such as
ammonia, chlorine, toilet cleaner etc. which could
adversely affect the finish and are not recommended for
cleaning
ATTENTION
1.
Don t use abrasive cleaners or solvents on faucets and
fittings.
As the product model is constantly updated, the actual
2.
product may not look the same as it shown in the diagram,
but the basic installation principles are the same.
S060432R

INSTALLATION

1.
Hex. Key*
* MIN I UNIT TBN 01001J not include
2.
138
3.
"HAYON" SINGLE LEVER BATH & SHOWER MIXER
W/ DIVERTER (NEED MINI UNIT SEPARATELY)
Body Conceal e d *
Cap*
Bolt*
MINI UNIT *
(not include)
Bolt
Base
Hex. Key
Bolt
Base
4.
Diverter Handle
Bolt
Hex.Key
Hex.Key
Bolt
Handle

TROUBLESHOOTING

CHECK
PROBLEM
POINT
Handle is loose
1. BOLT
2. BOLT
TX442SY
Flange
SOLUTION
1, 2 Tighten
R3
