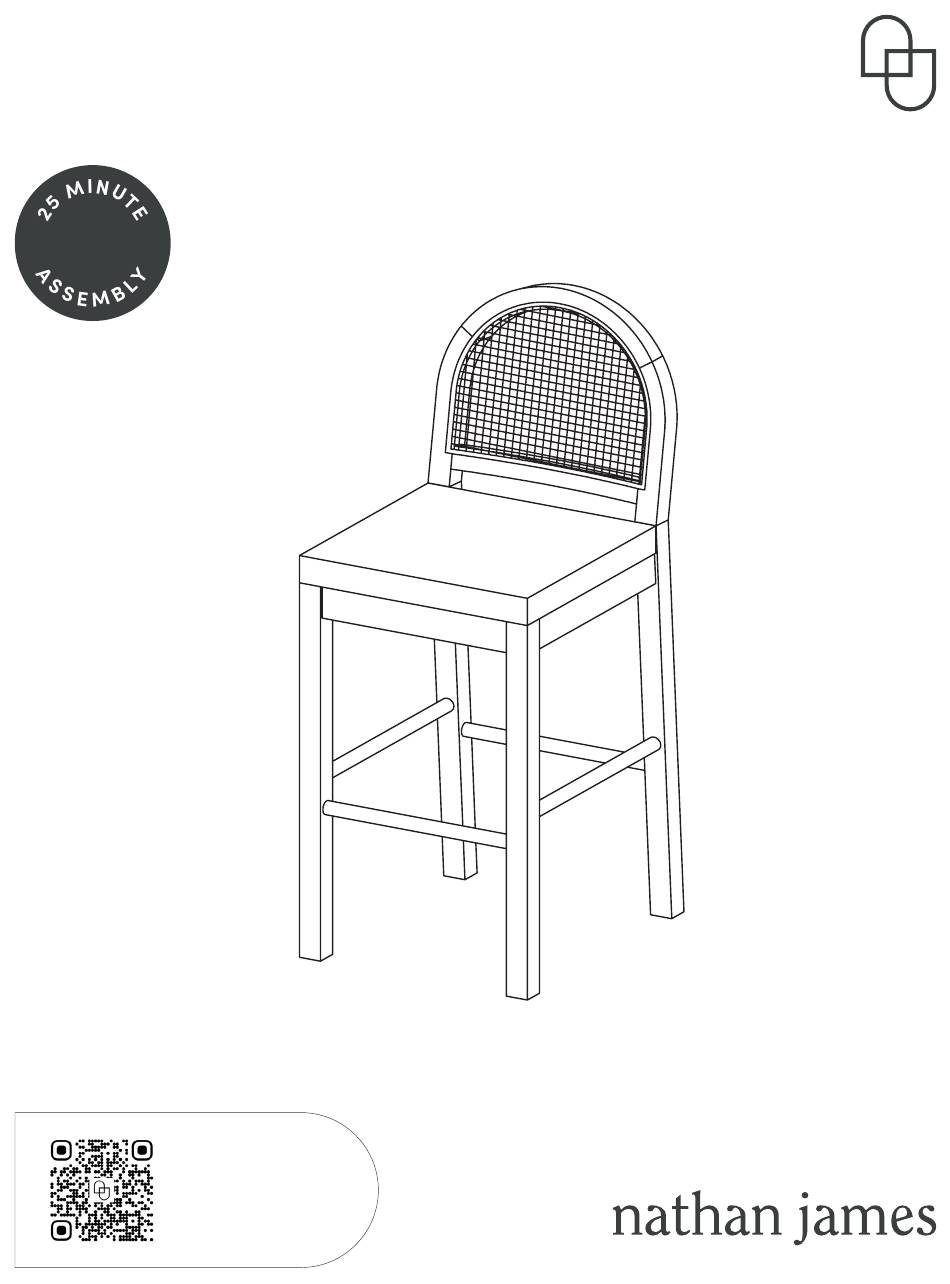

- Page 1 Let’s build the Bailey Bar Stool SKU 23221 Scan me! Inspiration Digital Instructions Free Lifetime Warranty 24-0205-VN...
-
Page 2: What's Included
Ok, let’s What’s included get rolling Description Chair Back Assembly This should be easy, just follow Seat Cushion Assembly our instructions and you will be back to Netflix in no time. Left Front Leg Estimated time for assembly D Right Front Leg 25:00 Side Stretchers Front Footrest... - Page 3 The goods IMPORTANT 1. Do not tighten bolts / screws completely until all bolts / screws are lined up and inserted into holes. 2. Do not over tighten screws and bolts to avoid stripping.
- Page 4 Step 1 Let’s get this thing fired up! Join the Seat Cushion (B) to the Chair Back (A) using two sets of the Flat Washer (5), Lock Washer (4), and Hex Button Head Bolt (1). Tighten using the Allen Key (7). Do not overtighten hardware.
- Page 5 Step 2 Using four sets of the Flat Washer (5), Lock Washer (4), and Hex Button Head Bolt (3), tighten the Seat Cushion in the two corners that attach to the Chair Back (A). Do not overtighten hardware. Tighten to 75% for now.
- Page 6 Step 3 Time for the legs! You know what they say, never skip leg day. Join the Left Front Leg (C) and Right Front Leg (D) to the Seat Cushion (B) using four sets of the Flat Washer (5), Lock Washer (4), and Hex Button Head Bolt (2).
- Page 7 Step 4 Secure the Side Stretchers (E) and Front Stretchers (F) to the legs using a screwdriver and the M4*38MM Phillip Head Screws (6). IMPORTANT NOTE: Front Legs are not interchangeable. (see following page) If you are having trouble getting the screws to catch, it is recommended to carefully use an electric screwdriver or drill with necessary bit for this step.
- Page 8 Issues with stretchers aligning at an angle? If the stretchers are set at an angle when you are aligning them with their respective holes on the front & back legs, you have likely assembled the front legs incorrectly. -OR- Re-check to confirm that the proper legs are installed in their intended position on the proper side of the stool.
- Page 9 Step 5 Last but not least, tighten all screws to 100%! If your stool feels a little wobbly or unstable, re-address all fasteners to ensure they are 100% tightened. If your stool STILL feels a little wobbly or unstable, try loosening some of the fastener connections slightly in order to allow yourself to re-level all the legs on a flat surface before going back around &...
- Page 10 No heartburn, when we handle the return Give us a call 1-866-619-1004 or shoot us a message at help@nathanjames.com we will issue you a free replacement with zero hassle. Our way Their way Give us a call Re-package item Replacement Schedule pick up Track package Replacement...
-
Page 11: Proper Use
Any modifications will Nathan James and its parent companies cannot present the risk of creating significant safety issues which NJ will not be responsible for. be held legally responsible for any injuries or death resulted from failure to follow instructions or improper use of this product. - Page 12 If you are happy with your product, tell your friends and family about us or even better leave us a review online. Spreading the word gives us the opportunity to make more people happy and keep our prices low for your next purchase. Brooklyn Burdon Founder, Nathan James...
