- Page 1 AOM452 In-Car LCD Display System Package Owner’s Manual Features: • 4.5” TFT Color LCD Display • Camera 1 input for Rearview camera. • Camera 2 input for Side view camera • Navigation Input...
- Page 2 Your first priority while driving should always be the safe operation of your vehicle. Audiovox Specialized Applications LLC. cannot accept any responsibility whatsoever for accidents resulting from failure to observe these precautions or safety instructions When using the hands free feature, you should observe the road situation carefully to avoid traffic accidents.

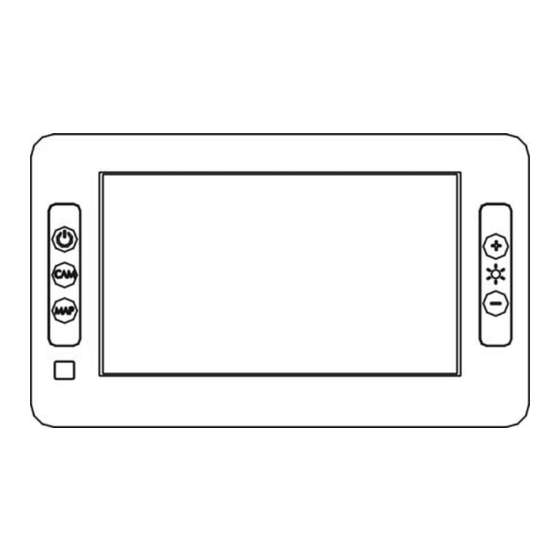

- Page 3 1. Controls and Indicators Figure1 Figure1 illustrates the controls and indicators of the AOM452 Monitor: A: 4.5” TFT color LCD B: “ ” button (power button) Switches the unit between Manual mode and Standby mode. Standby mode: a. When in standby mode the unit will be turned on when either the Camera 1 or Camera 2 trigger is triggered.
- Page 4 C: “CAM” button: Switches between Camera 1 and Camera 2. Camera 1 – Dedicated to the reverse circuit of the vehicle. The mode will override the current video source when the Camera 1 trigger wire is triggered. Camera 2 – Dedicated to the turn signal circuit of the vehicle. This mode will handle the turn signal pulse applied when the vehicles turn signals are activated.
-
Page 5: Maintenance
4. How to view the Camera 2 turning image: The monitor will display the turning Camera 2 image whenever the vehicle turns , the monitor would return to previous source automatically after the vehicle turned. If you want to view the turning Camera 2 image at any other time, press CAM Button to switch the turning camera image. - Page 6 www.asaelectronics.com 128-6927...
