Summary of Contents for Voyager VOM1023

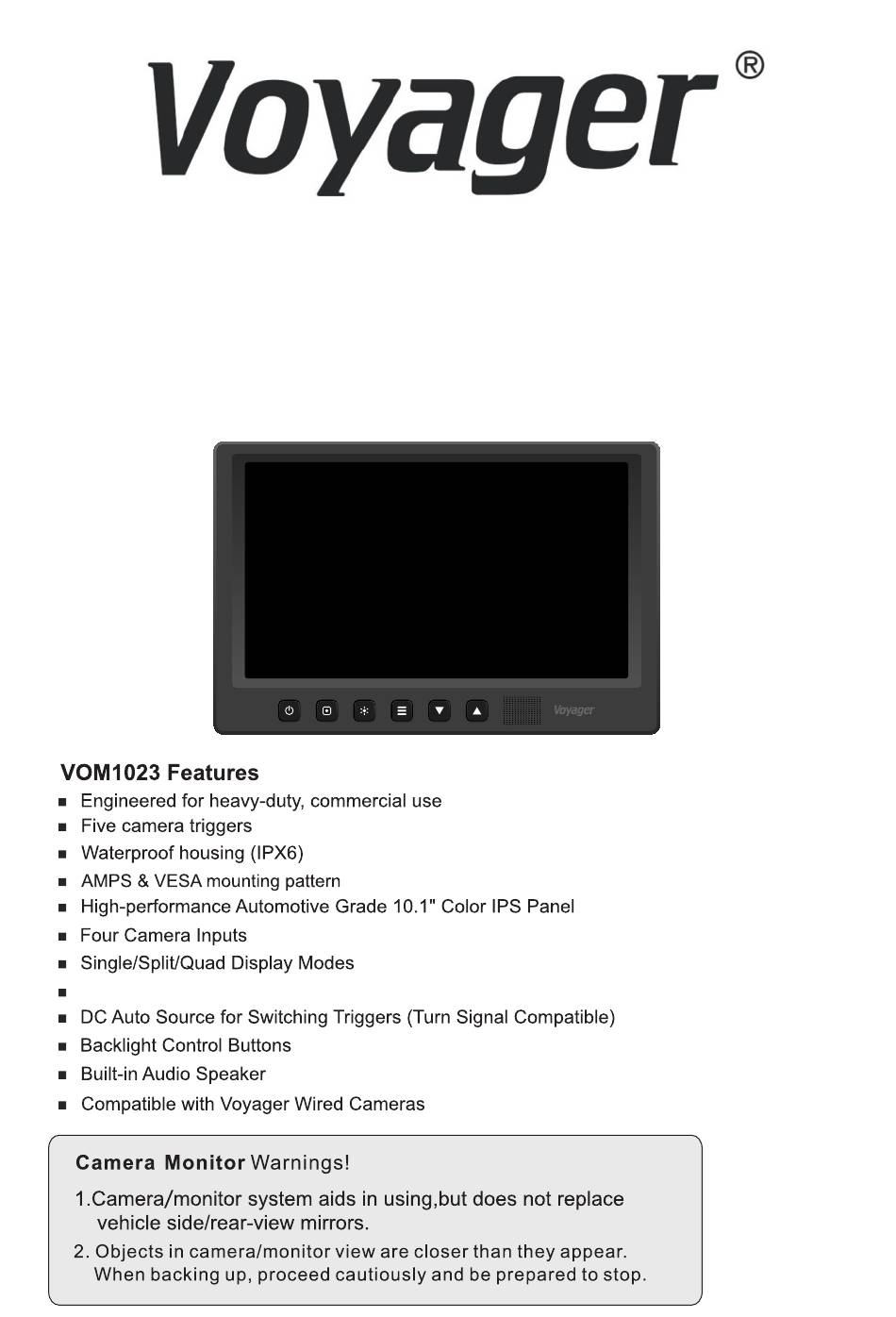

- Page 1 VOM1023 10.1" COLOR AHD MONITOR OWNER’S MANUAL NTSC/PAL Compatible with CVBS/AHD 720P, 1080P video signal...
- Page 2 The VOM1023 product is designed to be used primarily as a rear observation device in conjunction with a closed circuit camera. In any installations where the VOM1023 is used to display television broadcasts or recorded video/Playback, installation locations must adhere to local laws and regulations.
- Page 3 POWER/TRIGGER CABLE CAMERA CABLE QTY.1 QTY.1 MACHINE SCREW SUNVISOR QTY.14 (M4X8MM) QTY.1...
- Page 4 VOM1023 1. POWER ON/OFF 2. CAMERA 3. DIMMER Primary Function: Enter Menu 4. MENU -Press to enter the menu Secondary Function: Menu Return to Previous Screen -When in menu modes, the 'MENU' button is used to return to previous menu.
-
Page 5: Camera Image
PRESS TO ENTER THE MENU PRESS TO SELECT LANGUAGE ENGLISH FRENCH SPANISH EXIT RESOLUTION CVBS NTSC PRESS TO SELECT CAMERA RESOLUTION CVBS PAL 720P NTSC 720P PAL 1080P NTSC 1080P PAL PRESS TO CONFIRM THE SETTING EXIT CAMERA IMAGE PRESS TO SELECT CAMERA CHANNELS CAMERA1 NORMAL/MIRROR/UP/DOWN/OFF CAMERA2 NORMAL/MIRROR/UP/DOWN/OFF... -
Page 6: Marker Setup
MARKER SETUP MARKER CAM1/OFF MARKER NUMBERS EXIT DISPLAY MODE LIGHT/STANDARD/ SOFT/VIVID BRIGHTNESS 0 TO 30 CONTRAST 0 TO 30 COLOR 0 TO 30 TINT 0 TO 30 EXIT OPTION WAY SWITCH SPLIT 2-WAY SPLIT 3-WAY SPLIT 4-WAY TRIGGER VIEW SPLIT MODE QUAD MODE H-SPLIT MODE SOURCE NAME... - Page 7 “SPLIT 2-WAY” SOURCE1 CAM1 SOURCE2 CAM2 AUDIO CAM1 EXIT “SPLIT 3-WAY” SOURCE1 CAM1 SOURCE2 CAM2 SOURCE3 CAM3 AUDIO CAM1 EXIT “SPLIT 4-WAY” SOURCE1 CAM1 SOURCE2 CAM2 SOURCE3 CAM3 SOURCE4 CAM4 AUDIO CAM1 EXIT “TRIGGER VIEW” TRIGGER VIEW 2WAY/3WAY/ 4WAY EXIT...
-
Page 8: Cycle Delay
“SPLIT MODE” QUAD MODE ON/OFF H-SPLIT MODE ON/OFF EXIT DELAYS CYCLE DELAY CAMERA1 PRESS TO NAVIGATE SETTING OPTION CAMERA2 CAMERA3 CAMERA4 SPLIT TRIGGERDELAY CAMERA1 CAMERA2 CAMERA3 CAMERA4 SPLIT EXIT “CYCLE/TRIGGER DELAY” CAMERA1 0 TO 30 CAMERA2 0 TO 30 CAMERA3 0 TO 30 CAMERA4 0 TO 30... - Page 9 Rear-mounted cameras used for monitoring while backing up should be connected to the Camera 1 input. If the rear camera image is desired to be displayed automatically when in reverse gear, channel 1 trigger should be connected to the reverse gear light circuit in the vehicle.
-
Page 10: Typical System Connection
TYPICAL SYSTEM CONNECTION VOM1023 POWER IN 12V DC... - Page 11 VOM1023 10.1" IPS PANEL 80°(typ) View Angle 80°(typ) (CR 10) 80°(typ) 35ms 50ms -20C - +70C -30C - +75C NTSC or PAL ( CVBS, 720P, 1080P) 7.16lbs/3245g...
