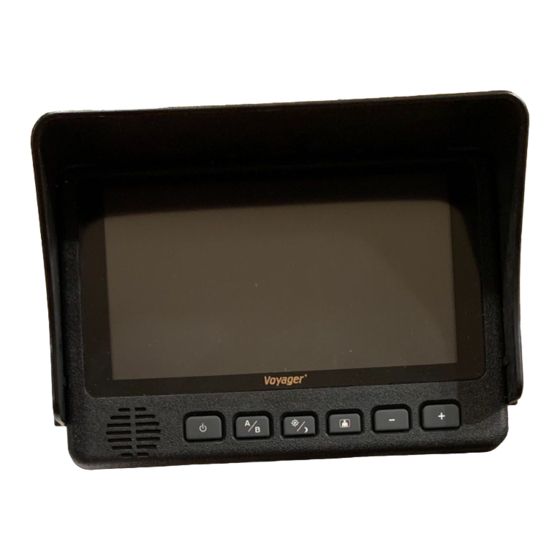

Voyager AOM701 Troubleshooting Manual

Monitor will not power up – no backlight on power button
• Confirm 12v+ to monitor.
• Confirm ground connection.
• Check vehicle's fuse and circuit for proper operation.

No image on screen

• Verify monitor is on correct camera input.
• Verify cable is connected to monitor.
• Verify camera is connected to cable.
• Connect known good camera and cable to monitor.
o If image appears connect cable to existing camera.

Inputs do not trigger properly (Standby or otherwise)

• See owner's manual for proper wiring.
• Confirm 12v + to each appropriate trigger lead.
o Note: Trigger will remain active as long as there is 12VDC+ to that wire,
preventing control or access to other inputs/cameras.

No audio

• Verify selected camera supports audio.
• Verify volume setting.
• Confirm that the audio trigger (WHITE wire in monitor's power harness) is
connected to 12v+.
Tech Services
03.23.07
AOM701 Troubleshooting Guide
If image remains replace original cable.
If image disappears replace original camera.
