Cal-Royal F5000V Series Installation Instructions

Fire-rated vertical exit device
Hide thumbs
1
2

Advertisement

Quick Links

Download this manual
INSTALLATION INSTRUCTION FOR F5000V SERIES
FIRE-RATED VERTICAL EXIT DEVICE
To change hand
EDG-4116-11/23-1of2

Advertisement

loading
Need help?

Need help?

Do you have a question about the F5000V Series and is the answer not in the manual?

Questions and answers

Related Manuals for Cal-Royal F5000V Series

Summary of Contents for Cal-Royal F5000V Series

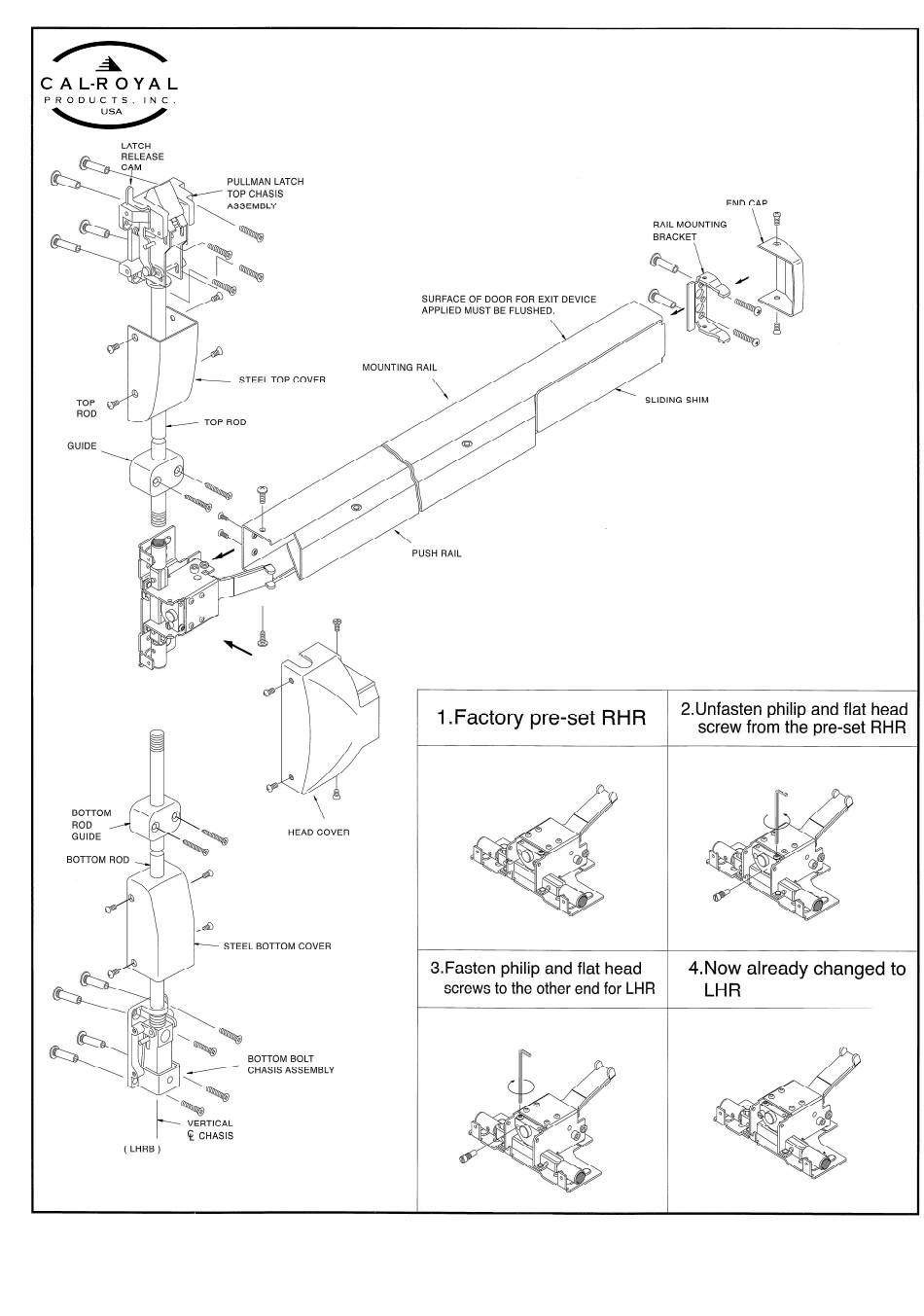

  • Page 1 INSTALLATION INSTRUCTION FOR F5000V SERIES FIRE-RATED VERTICAL EXIT DEVICE To change hand EDG-4116-11/23-1of2...
