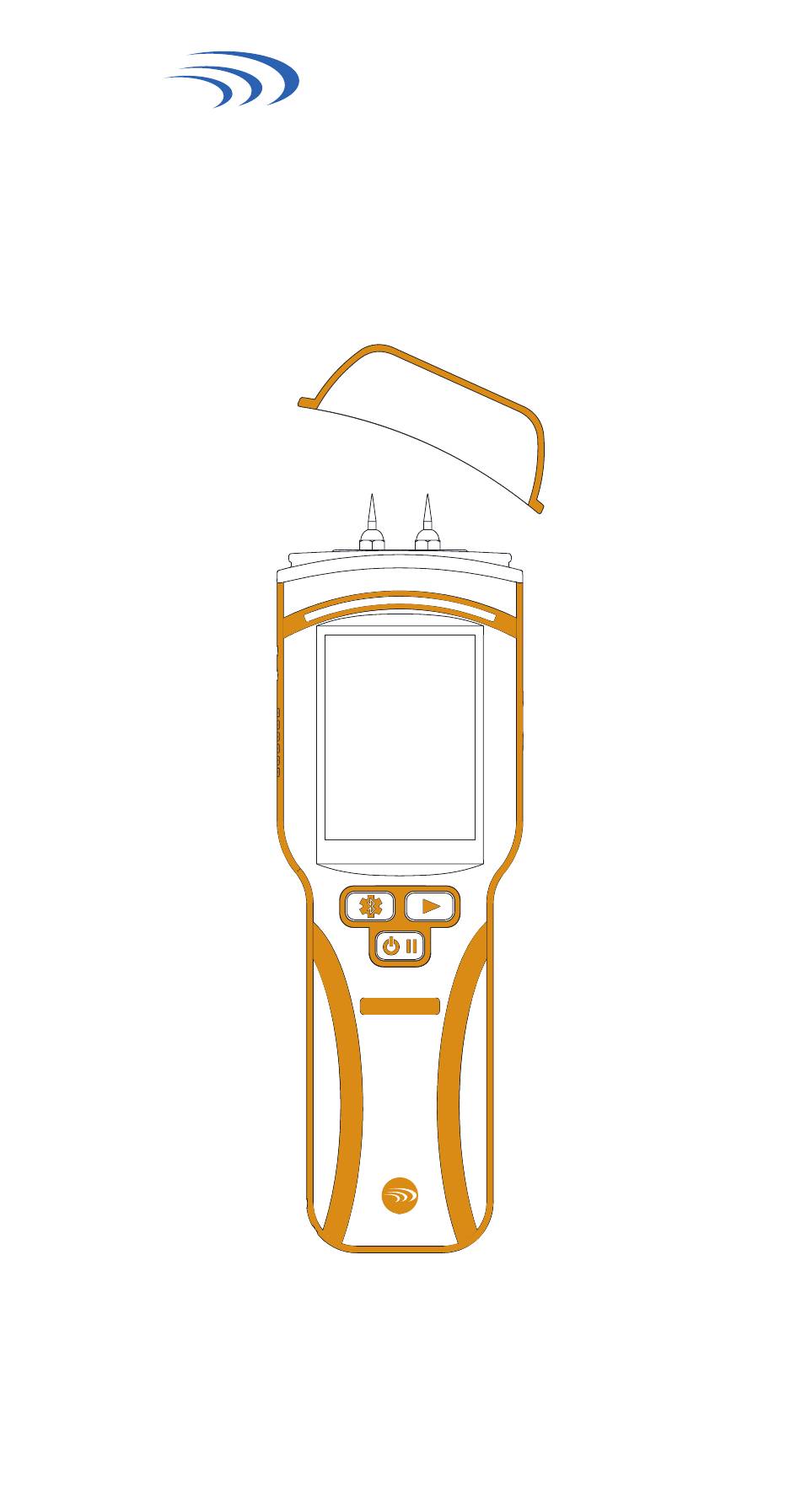

- Page 1 PROTIMETER ® TimberMaster Protimeter Moisture Meter TimberMaster PROTIMETER Instruction Manual Amphenol INS5675 Rev. A Jun 2023 Advanced Sensors...
- Page 2 Copyright © 2023 Amphenol Thermometrics, Inc. 967 Windfall Road St. Marys, Pennsylvania 15857, USA...
- Page 3 Pin (WME) Mode Operation The Protimeter TimberMaster is a conductivity moisture meter designed for use in wood. Moisture measurements can be taken using the integral pin electrodes. When...
- Page 4 Using the Protimeter TimberMaster The TimberMaster is calibrated for wood at 20°C (68°F). In general, the effect of temperature on the moisture measurement calibration can be approximately compensated as follows: For every 5°C above 20°C, subtract 0.5%mc from the value displayed.
- Page 5 See page 6 for further information. Operating TimberMaster 7.1 Switch On: Press the ON/OFF button. The unit turns on, with the LCD displaying all the segments and sweeping the LED bar graph. Page 4 Protimeter TimberMaster...
- Page 6 To return to the normal measurement mode, press again. 7.3 Settings: Press the button to enter in to settings. Press again to return to measurement The device enters in to language settings as a first setup screen. Protimeter TimberMaster Page 5...
- Page 7 7.3.2 Buzzer ON/OFF Settings: Pressing key from the language settings will move on to Buzzer setting. press to toggle between on and off. Choose and go to the next setting by pressing Page 6 Protimeter TimberMaster...
- Page 8 1 and 10 mi nutes, if there is no key press detected within the set time. For example, if the Auto Off time is set as 1, then the unit will automatically shut down after a minute when no key is pressed. Protimeter TimberMaster Page 7...
- Page 9 ON or OFF. When it is ON, the moisture condition will be displayed on the screen. When it is OFF, no indication is displayed on screen. Pressing toggles the state from Off to On and vice versa. Page 8 Protimeter TimberMaster...
- Page 10 When the device is in pin mode measurement (WME mode) press and hold keys. Device will check the calibration internally and display the reading along with the pass fail result. press and hold press key to exit the calibration check. Protimeter TimberMaster Page 9...
- Page 11 100% 9 Holding / Freezing the Reading: While measuring, if the reading needs to be frozen for any observation, press during measurement. A symbol will be displayed on the screen. Page 10 Protimeter TimberMaster...
-
Page 12: Battery Replacement
Remove the battery lid to open the battery compartment. Remove the batteries, and replace. Care must be taken to ensure that the polarity is correct as below. Place the battery inside the compartment. Protimeter TimberMaster Page 11... -
Page 13: Specification
For integrated and remote pin probes: Strong and reliable integrated pins, with a cap to protect Pin measurement range (% MC in wood/%WME) - 6 to 100% (readings over 30% are relative) Regulatory Compliance CE, RoHS, ETL, UKCA, FCC Page 12 Protimeter TimberMaster... - Page 16 U.S.A. Amphenol Thermometrics, Inc. 967 Windfall Road St. Marys, Pennsylvania 15857, USA St.MarysCC@amphenol-sensors.com +1 814-834-9140 U.K. Amphenol Thermometrics (U.K.) Ltd. Crown Industrial Estate Priorswood Road Taunton, TA2 8QY, UK Taunton.cc@amphenol-sensors.com +44.1823.335.200. www.protimeter.com www.amphenol-sensors.com Amphenol Advanced Sensors INS5375 Rev. A, Jun 2023...
