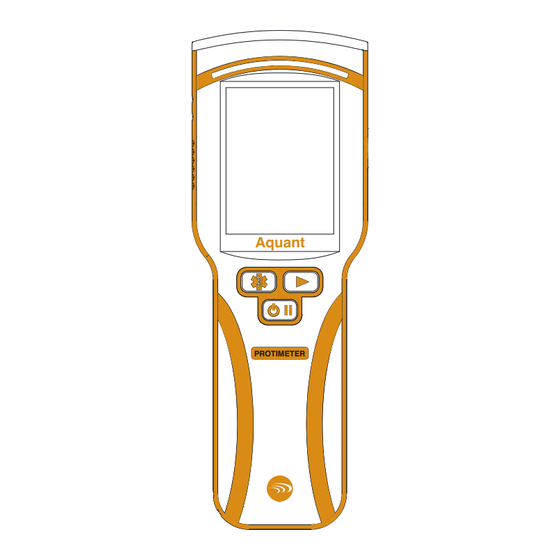

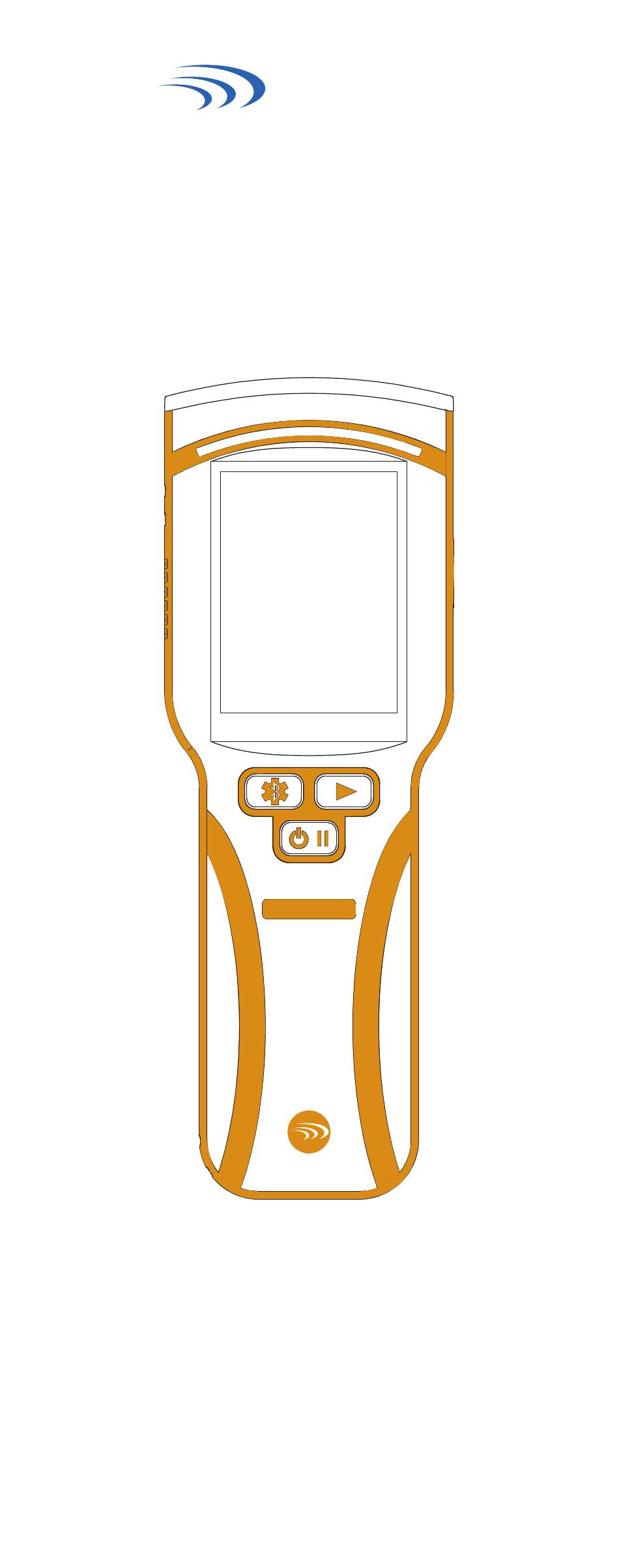

- Page 1 PROTIMETER ® Aquant Protimeter Non-Invasive Moisture Meter Aquant PROTIMETER Instruction Manual Amphenol INS5770 Rev. A Jul 2023 Advanced Sensors...
- Page 2 Copyright © 2023 Amphenol Thermometrics, Inc. 967 Windfall Road St. Marys, Pennsylvania 15857, USA...
-
Page 3: Safety Considerations
1 Safety Considerations Calibration of unit - User calibration is important to make sure the device is adjusted to the environment. Before each study it is advised to do a user calibration. Only operate the measuring instrument properly, for its intended purpose and within the parameters specified in the technical data. - Page 4 The Search mode may also be used as an alternative to the Measure mode when it is impractical or undesirable to push electrode pins into surfaces. Consider, for example, taking moisture readings behind ceramic tiles in shower cubicles or in walls covered by quality wallpapers where pinholes would not be acceptable.
- Page 5 3 Operatin g Aquant Switch On: Press and hold the (ON/OFF) button until the unit turns ON. Device displays all the segments and sweeping the LED arc. Protimeter Aquant Page 3...
- Page 6 Measurements: The numeric measurement and color LED will be shown as well as the “DRY” (green) or “AT RISK” (yellow) or “WET” (red), based on the measurement shown. 70-169 DRY (Green) 170-199 AT RISK (Yellow) 200-999 WET (Red) Reference Mode of Measurement: Take the first measurement which needs to be taken as reference.
- Page 7 To return to the normal measurement mode, press again. Settings: Press the button to enter in to settings. Any time during setting to go back press The device enters in to language settings as the first setup screen. Setting up language: The first screen to appear in settings is language.
- Page 8 Buzzer ON/OFF Settings: Pressing key from the language settings will move on to buzzer setting. press to toggle between on and off. Choose and go to the next setting by pressing Brightness settings (Back light): Pressing key from the buzzer settings will move on to brightness settings.
- Page 9 Auto Off Time Settings: When Auto Off is set, the unit will shut down automatically at a specified time between 1 and 10 minutes, if there is no key press detected within the set time. For example, if the Auto Off time is set as 1, the unit will automatically shut down after a minute when no key is pressed.
- Page 10 DRY, AT RISK and WET Settings: Pressing key from auto off setting will move to DRY, AT RISK and WET setting screen. This screen sets whether the indication on the display needs to be switched ON or OFF. When it is ON, the moisture condition will be displayed on the screen.
- Page 11 Turning Bluetooth On/Off: To turn the bluetooth on or off at any point of time from the measurement screen, press and hold key. long press User calibration: When the device is in measurement mode, press and hold keys. A scrolling text appears mentioning “hold in air and press right”...
- Page 12 press key to exit the calibration. Battery Status: Battery status is indicated in 5 levels. symbol can be seen at the left top corner of the screen. Whenever the battery is is low the symbol will blink (without block inside). When the battery is low its better to replace them soon.
- Page 13 Holding/Freezing the Reading: While measuring, if the reading needs to be frozen for any observation, press during measurement. A text "HOLD" will be displayed on the screen. Protimeter Aquant Page 11...
-
Page 14: Battery Replacement
5 Battery Replacement A 2700mAh battery will last continuously for more than 20 hours for a Aquant in operation. A Battery Low indication on the screen indicates that the battery needs to be changed in a short time. Remove the battery lid to open the battery compartment. -
Page 15: Specification
6 Specification Display(LCD)..... 35 X 50 mm With backlight(10 brightness level) Battery......3V(2 x AA) 2700mAh Temperature Operating...... 0°C to 50°C Storage...... -40°C to 85°C Operating Humidity.. 0 to 90% RH Operating Altitude... 2000m Safety....Pollution degree 4 Size....19cm x 6.5cm x 5cm ~240g Gross Weight...... - Page 16 Page 14 Protimeter Aquant...
- Page 17 Protimeter Aquant Page 15...
- Page 18 U.S.A. Amphenol Thermometrics, Inc. 967 Windfall Road St. Marys, Pennsylvania 15857, USA St.MarysCC@amphenol-sensors.com +1 814-834-9140 U.K. Amphenol Thermometrics (U.K.) Ltd. Crown Industrial Estate Priorswood Road Taunton, TA2 8QY, UK Taunton.cc@amphenol-sensors.com +44.1823.335.200. www.protimeter.com www.amphenol-sensors.com Amphenol Advanced Sensors INS5770 Rev. A, Jul 2023...
