- Page 1 ® Protimeter BaleMaster GRN6170 PROTIMETER User Instructions BaleMaster (GRN6170) Protimeter Moisture Meter BaleMaster PROTIMETER Amphenol AAS-INS6170, Rev. A Jul 2023 Advanced Sensors...
- Page 2 Copyright © 2023 Amphenol Thermometrics, Inc. 967 Windfall Road St. Marys, Pennsylvania 15857, USA...

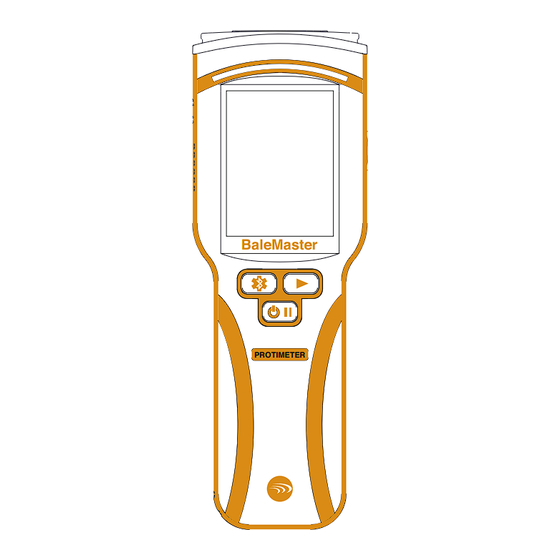

- Page 3 The Protimeter BaleMaster is a conductivity moisture meter designed for measuring moisture level of baled products such as straw and hay. The instrument is calibrated for wheat straw and may be used to take relative measurements in other baled products. Page 2 Protimeter BaleMaster GRN6170...
- Page 4 Replace the batteries when the low battery power symbol appears on the display, or remove the batteries if the instrument is not going to be used for extended periods. Protimeter BaleMaster GRN6170 Page 3...
- Page 5 7 Operating BaleMaster Switch On: Press and hold the ON/OFF button till the unit turns ON. The unit turns on, with the LCD displaying all the segments and sweeping the LED bar graph. Page 4 Protimeter BaleMaster GRN6170...
- Page 6 The numeric measurement and color LED will be shown, as well as “DRY” (green) or “AT RISK” (yellow) or “WET” (red), based on the measurement shown. 8.5-15 DRY (Green), 15.1-19.5 AT RISK (Yellow), 19.6-36.8 WET (Red) Protimeter BaleMaster GRN6170 Page 5...
- Page 7 When the desired language is seen on the display choose it by pressing key. This will set the language you selected and will move on to the next setting screen. Page 6 Protimeter BaleMaster GRN6170...
- Page 8 10 levels. When the desired brightness is set on the display save and move by pressing key. Note: Battery life is effected by the brightness setting. to maximize battery life keep on the minimum setting. Protimeter BaleMaster GRN6170 Page 7...
- Page 9 A user must manually turn it off by pressing and holding the button for 5 Sec. Turn off time can be changed from Off till 10 minutes by pressing key. Pressing key will move to the next screen Page 8 Protimeter BaleMaster GRN6170...
- Page 10 Off to On and vice versa. 8 Turning Bluetooth On/Off: To turn the bluetooth on or off at any point of time from the measurement screen, press and hold long press Protimeter BaleMaster GRN6170 Page 9...
- Page 11 100% 11 Holding / Freezing the Reading: While measuring, if the reading needs to be frozen for any observation, press during measurement. A symbol will be displayed on the screen. Page 10 Protimeter BaleMaster GRN6170...
- Page 12 Remove the battery lid to open the battery compartment. Remove the batteries, and replace. Care must be taken to ensure that the polarity is correct as below. Place the battery inside the compartment. Protimeter BaleMaster GRN6170 Page 11...
- Page 13 Pollution degree 4 18cm x 6.5cm x 5cm Size................... Gross Weight (without battery) ............~228g Measurement Specification................The Balemaster instrument is calibrated for Wheat Straw Measurement Range: 8.5 - 36.8% Regulatory Compliance CE, RoHS, ETL, UKCA, FCC Page 12 Protimeter BaleMaster GRN6170...
- Page 14 MODEL: GRN6165 BaleMaster PROTIMETER POL6148 Meter Bale Probe Protimeter BaleMaster GRN6170 Page 13...
- Page 16 T aunton, TA2 8QY, UK T: +44 1823 335 200 Taunton.cc@amphenol-sensors.com +44.1823.335.200. www.protimeter.com www.amphenol-sensors.com Copyright © 2023 Amphenol Thermometrics, Inc. All rights reserved. ® Protimeter BaleMaster is a registered trademark of Amphenol Thermometrics, Inc. Amphenol Thermometrics, Inc. Amphenol 967 Windfall Road St.
