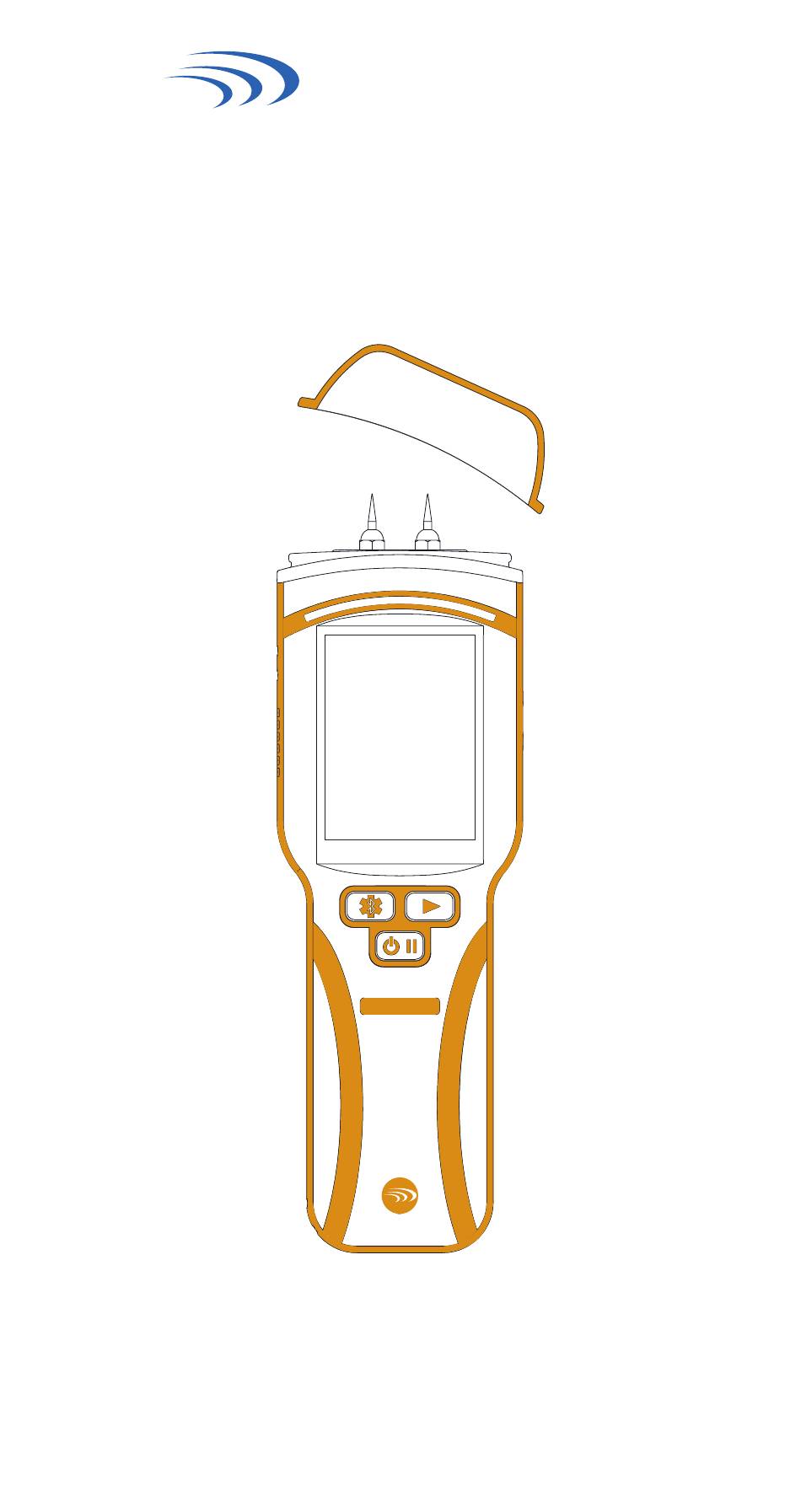

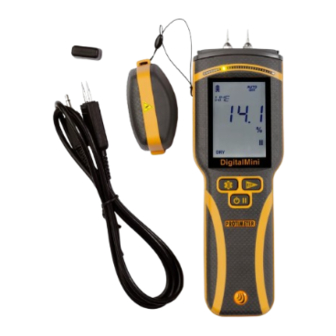

- Page 1 PROTIMETER ® DigitalMini Protimeter Moisture Meter DigitalMini PROTIMETER Instruction Manual Amphenol INS5775 Rev. A Jun 2023 Advanced Sensors...
- Page 2 Copyright © 2023 Amphenol Thermometrics, Inc. 967 Windfall Road St. Marys, Pennsylvania 15857, USA...
-
Page 3: Safety Considerations
Heavy Duty Pin Probe, Deep Wall Probes, a Hammer Electrode (optional) or an EIFS probe (optional). Remove the needle cap from the top of the DigitalMini and press to switch it on. Protimeter DigitalMini Page 1... - Page 4 Note: Deep Wall Probes may be used to investigate high readings. Deep Wall Probes may be used to determine the moisture profile through a structure by increasing the depth of the clearance holes incrementally. Page 2 Protimeter DigitalMini...
- Page 5 Note: Ensure that no auxiliary probes are connected to the device Before a calibration check is run. Connecting any probe to the right side Jack may cause interference in the calibration check value. Protimeter DigitalMini Page 3...
-
Page 6: Reference Mode
See page 7 for further information. 9 Operating DigitalMini Switch On: Press the ON/OFF button. The unit turns on, with the LCD displaying all the segments and sweeping the LED bar graph. Page 4 Protimeter DigitalMini... - Page 7 While the first reading is displayed on the screen, press and hold the button for 2 seconds to enter the Reference Mode. The display will be similar to the one shown. To return to the normal measurement mode, press again. Protimeter DigitalMini Page 5...
- Page 8 When the desired language is seen on the display choose it by pressing key. This will set the language you selected and will move on to the next setting screen. Page 6 Protimeter DigitalMini...
- Page 9 10 levels. When the desired brightness is set on the display save and move by pressing key. Note: Battery life is effected by the brightness setting. to maximize battery life keep on the minimum setting. Protimeter DigitalMini Page 7...
- Page 10 This screen sets whether the indication on the display needs to be switched ON or OFF. When it is ON, the moisture condition will be displayed on the screen. When it is OFF, no indication is displayed on screen. Page 8 Protimeter DigitalMini...
- Page 11 Pressing toggles the state from Off to On and vice versa. Turning Bluetooth On/Off: To turn the bluetooth on or off at any point of time from the measurement screen, press and hold long press Protimeter DigitalMini Page 9...
- Page 12 (without any block inside). When the battery is low its better to replace them soon. The unit will continue to perform in battery condition within the specified accuracy, and turns off when the battery reaches the limit. 100% Page 10 Protimeter DigitalMini...
- Page 13 Holding / Freezing the Reading: While measuring, if the reading needs to be frozen for any observation, press during measurement. A symbol will be displayed on the screen. Protimeter DigitalMini Page 11...
-
Page 14: Battery Replacement
Remove the battery lid to open the battery compartment. Remove the batteries, and replace. Care must be taken to ensure that the polarity is correct as below. Place the battery inside the compartment. page12 Protimeter DigitalMini... -
Page 15: Specification
For integrated and remote pin probes: Strong and reliable integrated pins, with a cap to protect Pin measurement range (% MC in wood/%WME) - 6 to 100% (readings over 30% are relative) Regulatory Compliance CE, RoHS, ETL, UKCA, FCC Protimeter DigitalMini Page 13... - Page 16 U.S.A. Amphenol Thermometrics, Inc. 967 Windfall Road St. Marys, Pennsylvania 15857, USA St.MarysCC@amphenol-sensors.com +1 814-834-9140 U.K. Amphenol Thermometrics (U.K.) Ltd. Crown Industri a l Estate Priorswood Road Taunton, TA2 8QY, UK Taunton.cc@amphenol-sensors.com +44.1823.335.200. www.protimeter.com www.amphenol-sensors.com Amphenol Advanced Sensors INS5775 Rev. A, Jun 2023...
