Summary of Contents for AVer VB350

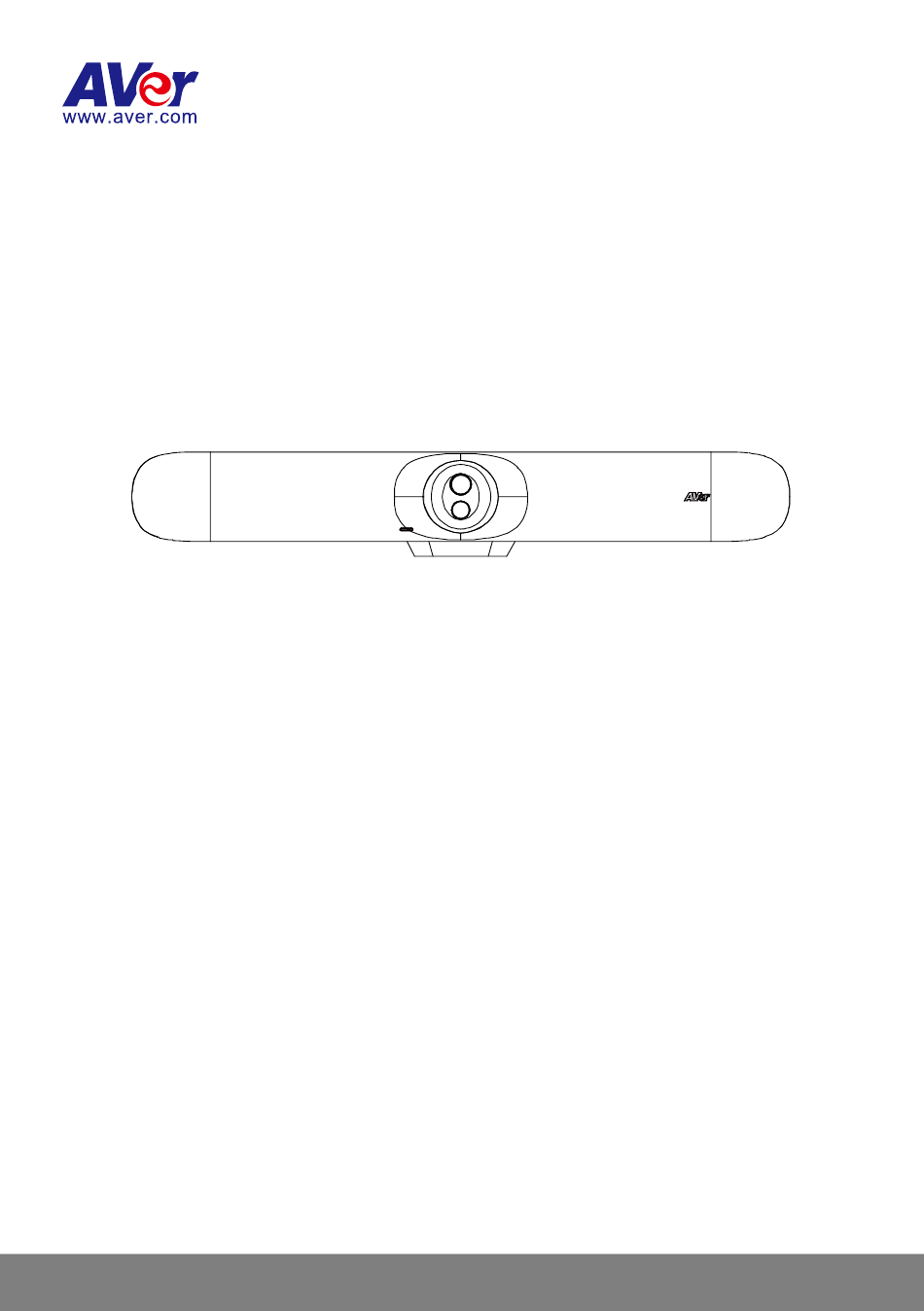

- Page 1 VB350 4K Dual Lens Video Bar (VB350 Conference Camera) — — User Manual...
- Page 2 사용자안내문 이 기기는 업무용(A 급) 전자파적합기기로서 판 A 급 기기 매자 또는 사용자는 이 점을 주의하시기 바라 (업무용 방송통신기자재) 며, 가정외의 지역에서 사용하는 것을 목적으로합니다. RTC 警語 若電池更換不正確，將有爆炸危險。因此，只可以使用製造商推薦的同一種或者同等型號的電池進行替換。請按照製造 商的指示處理舊電池。 PSTI Statement of Compliance Please refer to the following website: https://www.aver.com/product-security-advisory...
- Page 3 © 2024 AVer Information Inc. All rights reserved. | August 7, 2024 All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form or by any means without the prior written permission of AVer Information Inc. is prohibited. All...
-
Page 4: Precautions For Use
Precautions for use To reduce risk of fire or electric shock, do not expose this appliance to rain or moisture. Warranty will be void if any unauthorized modifications are done to the product. Do not drop the camera or subject it to physical shock. ... -
Page 5: Contact Information
お客様サポートセンター（固定電話のみ）: +81 (0) 120 008 382 Vietnam Branch Office Korea Office 한국 에버 인포메이션 (주) Công ty TNHH AVer Information (Việt Nam) Tầng 5, 596 Nguyễn Đình Chiểu, 서울시 종로구 새문안로 92 (신문로 1 가, 광화문오피시아빌딩) 1831, P.3, Quận 3, 1832 호... -
Page 6: Table Of Contents
Get Started ........................14 Make a Video Call ......................14 Web Interface ........................14 Access the Web Interface ..................... 14 AVer IP Finder ......................14 PTZApp 2 ......................... 16 PTZ Control ........................17 Overview of PTZ Control ..................17 Save, Load and Clear a Preset ................18 Setting .......................... - Page 7 Tracking Mode ......................23 Gesture Control ......................25 Video Format ........................ 26 Network ........................27 System .......................... 28 Audio ..........................30 EZLive ..........................32 Use AVer EZLive ......................32...
-
Page 8: Overview
Overview Package Contents VB350 Unit Power Adapter & Power USB 3.0 Type-B to USB Type-A to Cord* Type-A Cable (3m) Type-C Adapter Remote Control AAA Battery (x2) Wall Mount Bracket Tripod Screw (x2) 1/4”-20 L=7.5mm (US only) Wall Mount Drill Template * The power cord will vary depending on the standard power outlet of the country where it is sold. - Page 9 Audio-out Converter BT Dongle TV VESA Mount Kit *Optional Accessories will vary depending on the country where it is sold.
-
Page 10: Parts Info
PTZApp 2 and purchase audio-out converter (TRS female to TRRS male) from AVer. ** BT dongle is an optional item in certain countries. Please contact your local dealer for purchasing. *** Support built-in USB 3.1 (Gen 1) to HDMI adapter technology. Support HDMI out 4K resolution on... -
Page 11: Led Indicators
LED Indicators Status Blue (Flash once) Power on Blue (Solid) Video and audio on Blue (Flashing) 2 seconds: Gesture control on. 4 seconds: Receiving gesture commands. Red (Solid) Start-up / Mute audio during a call White (Solid) Standby mode / a call on hold White (Flashing) Calling Orange (Solid) -
Page 12: Remote Control
Remote Control Your device may come with one of the following remote controls. Name Function 1. Power Reserve for future use. 2. Device Select Reserve for future use. To save a preset: Press and hold the Preset button 3. Number Buttons until the save message appears on screen and release, then short press 4. -
Page 13: Shortcuts
Call/Answer: Start or answer a call. 9. Function Buttons Pairing: Turn Bluetooth on or off. Refer to <BT Dongle Connection> for details. Manual Framing: Reserve for future use. Hang Up: End call. F1-F4: N/A 10. Menu 11. -
Page 14: Connection
Connection Device Connection 1. Connect VB350 to PC/laptop with the provided USB 3.0* cable and connect the power cord of VB350 to power outlet. Notes: For cable management, you can have each cable go through the cable management slots on the rear-side of VB350. - Page 15 4. Install a BT dongle. Use remote control or PTZApp 2 to enable Bluetooth function. Please refer to <BT Dongle Connection> for more details 5. Turn on Bluetooth on your mobile phone and connect with VB350 to use as an external microphone and speaker during a conference meeting.
-
Page 16: Ethernet Connection
Ethernet Connection VB350 supports ethernet connection which allows user to access VB350 from remote site through browser. For Web accessing, please refer to <Access the Web Interface>. BT Dongle Connection 1. Install a BT dongle before powering up the device. -
Page 17: Expansion Microphone Connection (Optional)
Expansion Microphone Connection (Optional) Connect the provided RJ45 cable to the expansion microphone’s MIC OUT port and VB350’s expansion audio port. Expansion Speakerphone Connection (Optional) Connect the provided RJ45 cable to the expansion speakerphone’s Speaker port and VB350’s expansion audio port. -
Page 18: Installation
Installation Wall Mount 1. Use the wall mount drilling template to mark and drill the mounting holes on the wall. 2. Insert 2 screws and plastic anchors (not included) to the wall. Concrete wall: M5 x20mm self-tapping screws (x2) + plastic anchors (x2) ... -
Page 19: Tv Vesa Mount (Optional)
Washer(M8) x 4 Screw(M8*30) x 4 You may install VB350 on the top or on the bottom of TV. Both ways of installation are the same. Fix the screw (M5*10) with silicone Slightly fix the fixture on the rear side of the washer in suitable holes (1~5). - Page 20 Place the TV mount rack on top of the Place the metal washers on the mount fixtures. holes of TV. If you don’t need to install TV mount rack, skip step 3—5. If you don’t need to install TV mount rack, Slightly secure the mount rack and fixture slightly secure the fixture on the TV and on the TV.
-
Page 21: Get Started
Get Started Make a Video Call The VB350 is a plug-n-play camera. 1. Connect your VB350 to a computer using the included USB cable. ® 2. Open your video conferencing software such as Microsoft Teams, Skype and Zoom. 3. Set the... - Page 22 1. Download and install AVer IP Finder to your computer from AVer Download Center. https://www.aver.com/download center 2. Open AVer IP Finder. Click Search to see available devices on the same local area network (LAN). Notes: Make sure your camera has internet access.
-
Page 23: Ptzapp 2
PTZApp 2 1. Download and install PTZApp 2 to your computer from AVer Download Center. (https://www.aver.com/download-center). 2. Make sure your camera and computer are on the same LAN. 3. Connect your camera to your computer with included USB cable. When PTZApp 2 detects a USB- connected camera, you will see your device on USB Device page. -
Page 24: Ptz Control
PTZ Control Overview of PTZ Control 6. Log Out 1. Preset Function Buttons Log out of your account and close the web Set and load a preset. interface. 2. Add Presets 7. Live View There are 10 available presets 0-9 by default. Click the plus icon to add up to 128 available 8. -
Page 25: Save, Load And Clear A Preset
Save, Load and Clear a Preset To save and load a preset: 1. Use the PTZ control to position your camera. 2. Select Set, then select a preset number to save that position. 3. Select Yes when prompted. A thumbnail of your preset will appear. 4. -
Page 26: Setting
Setting Camera Item Description Tracking Mode Select a tracking mode. Please refer to <Tracking Mode> for details. Camera Moving Speed Select a camera moving speed. Framing Speed Select an idle time before auto frame: Slow: 5 seconds before auto frame. ... - Page 27 participants when no sound is detected. Select OFF and the camera will stay at the final position. Conversation Mode Trigger 1. Turn Audio Tracking on and drag the slider to adjust the Sensitivity sensitivity of triggering Conversation Mode. 2. The camera will turn the Conversation Mode on and frames all active talkers when detecting two or more people talking.
- Page 28 Frequency Select a frequency. White Balance Select a white balance setting: Manual: Adjust the white balance manually by dragging the slider. Auto: Adjust the white balance automatically. Noise Reduction Adjust noise reduction level. Brightness Adjust brightness level. Sharpness Adjust sharpness level.
-
Page 29: Overview Of The Floating Live View
Overview of the Floating Live View The floating live view opens automatically on .Setting, Video Format, Network and System tabs. To open the floating live view again after closing, click on the camera icon on top of Setting, Video Format, Network and System tabs. -
Page 30: Tracking Mode
Tracking Mode Frame manually using the SmartFrame button Manual Frame to frame entire group on screen once. Frame entire group on screen automatically. Auto Frame If no one is in view, the camera will default to preset 0. The camera auto frames every time a subject enters or leaves the screen. - Page 31 A combination of presets (not Preset Framing) Presentation Mode and Audio Tracking. Uses presets when active talker is speaking inside of presets; uses Audio Tracking and frames active talker on screen when they are speaking outside of presets. If no one is speaking, the camera will stay at the last position or default to group framing after your selected Audio Tracking Idle Interval.
-
Page 32: Gesture Control
Gesture Control Turn on Gesture Control in the Setting tab > Gesture Control, and turn off all AI functions. The effective distance is up to 5 meters. Gesture Description Place your hand next to your face with your palm open and facing the camera for 2-3 seconds to turn Auto Frame on or off. -
Page 33: Video Format
Video Format Item Description IP Stream Resolution Select a resolution for streaming over IP. Frame Rate Select a frame rate. Bit Rate Select a bit rate. To live stream on Facebook, we recommend a bit rate under 4Mbps. RTSP Item Description RTSP... -
Page 34: Network
Network Item Description Static IP, DHCP Set up Static IP or DHCP. Static IP: Enter your network settings to set up a static IP connection and click Confirm. -
Page 35: System
System Item Description Language Select a language for the web interface. USB Display Turn the function on to enable image output via USB. FW Update Update your camera firmware. Auto Update: Check and update online. Manual Update: Update the downloaded firmware file. Note: The camera will reboot and the connection will be lost. - Page 36 keep the IP address by selecting the checkmark. If you forgot your password, use PTZApp 2 to reset the web interface password to the default aver4321. Camera Reboot Reboot the camera. Change Password Change the web interface password. Use 8-10 characters and a combination of uppercase letters, lowercase letters, numbers, and symbols (%+=,-_^/@.~).
-
Page 37: Audio
3.5mm External Microphone Mix In: Connect to an external microphone for joint audio transmission with VB350. Line Out: Connect to HA system for audio output. You may need to purchase an audio-out adapter from AVer... - Page 38 (TRS female to TRRS male). Note: Avoid connecting to an external speaker when using Line Out. The speaker sound will have impact on built-in speaker and microphone performance.
-
Page 39: Ezlive
EZLive Please go to https://www.aver.com/download-center to download the AVer EZLive software. After downloading, double-click on the file and follow the on-screen instructions to complete the installation. Use AVer EZLive During a video call, EZLive can help user to do: (1) Camera ePTZ (2) Volume control for the speaker connected (3) Capture camera’s still images...
