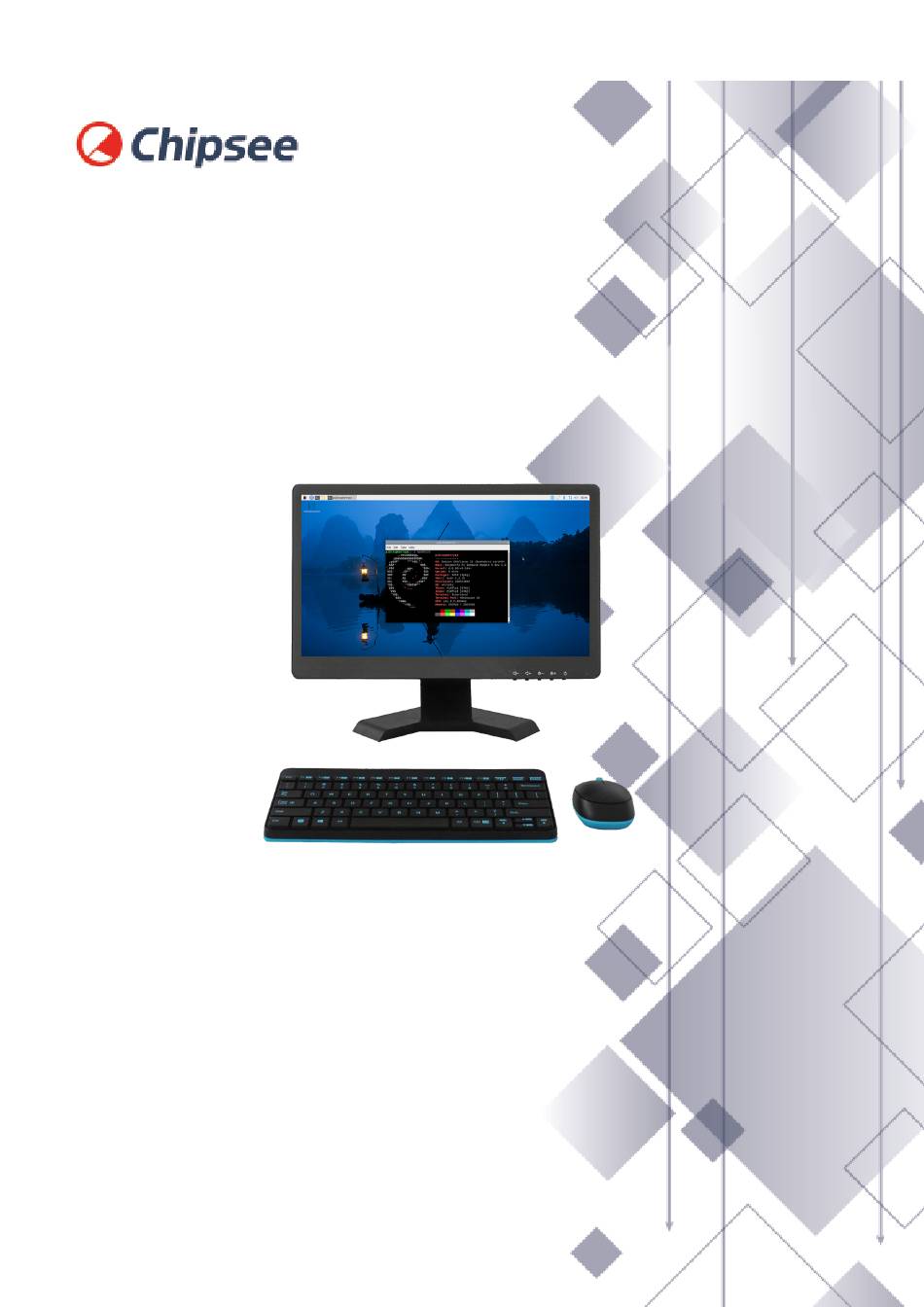

- Page 1 Industrial PC AIO-CM5-156 PN: CS19108RA5156A Content can change at anytime, check our website for latest information of this product. www.chipsee.com...
-
Page 2: Table Of Contents
Contents AIO-CM5-156 1. Product Overview 2. Ordering Options ® 2.1. Pi CM5 Module 2.2. Operating System 2.3. Optional Features 3. Hardware Features 4. Power Input 5. Connectivity 5.1. USB HOST and Type C 5.2. LAN Connectors 5.3. TF Card Slot 5.4. -
Page 3: Aio-Cm5-156
AIO-CM5-156 AIO-CM5-156 Front View Chipsee Page 3 of 28... -
Page 4: Rear View
AIO-CM5-156 Rear View Chipsee Page 4 of 28... -
Page 5: Side View
AIO-CM5-156 Side View 1 Chipsee Page 5 of 28... - Page 6 AIO-CM5-156 Side View 2 Chipsee Page 6 of 28...
-
Page 7: Product Overview
AIO-CM5-156 Product Overview Product Overview The AIO-CM5-156 all in one Pi PC (PN: CS19108RA5156A) is an all-in-one desktop computer ® based on Raspberry Pi CM5. Its case is plastic, very light to carry around, or mount it to a fixed place as a smart home control center. -
Page 8: Ordering Options
The AIO-CM5-156 all in one Pi PC does not include the CM5 Raspberry Pi module by default. If you would like to purchase it with a CM5, you can select it at the Chipsee store during the ordering process. Operating System This product comes with a pre-installed Raspberry Pi OS. -
Page 9: Optional Features
PCB when you open up the back case. Warning Installation, repair, and maintenance tasks should be performed by trained personnel only. Chipsee does not bear any responsibility for damage caused by inadequate handling of the product. Chipsee Page 9 of 28... -
Page 10: Hardware Features
Hardware Features Hardware Features The AIO-CM5-156 all in one Pi PC offers a board range of performance and connectivity options for scalable integration, providing expandability according to future needs. Some of the key features are listed in the table below. - Page 11 AIO-CM5-156 Hardware Features AIO-CM5-156 ZIGBEE Working From 0°C to +50°C Temperature Raspberry Pi OS, Android Dimensions 374 x 238 x 33mm Weight 1600g Plastic Case Black Color Certification CE, ROHS Table 321 Key Features Chipsee Page 11 of 28...
-
Page 12: Power Input
Power Input Power Input The AIO-CM5-156 all in one Pi PC can be powered by an input voltage of 12V DC. The total power consumption is typically about 10W, depending on the load and brightness. The power input connector is a 2.1mm I.D x 5.5mm O.D x 9.5mm DC connector. For a proper DC power adapter, refer to the figure below. -
Page 13: Connectivity
Connectivity Connectivity There are many connectivity options available on the AIO-CM5-156 industrial Pi PC. It has 2 x USB 3.0 Host, 1 x Type-C USB (Slave), 1 x Giga LAN (RJ45) Ethernet connector supporting up to 1 Gbps, and a Raspberry Pi 40 pin connector. -
Page 14: Lan Connectors
AIO-CM5-156 LAN Connectors LAN Connectors LAN (RJ45) connector provides Ethernet connectivity over standardized Ethernet cables as shown the figure below. The integrated Ethernet interface supports up to 1 Gbps data throughput. These Giga LAN signals come from the CM5 module directly. -
Page 15: Tf Card Slot
TF Card Slot The AIO-CM5-156 all in one Pi PC features 1 x TF Card (micro SD) slot that can only be used with CM5 Lite modules, as shown in the image below (note the direction of the TF card). -
Page 16: Hdmi
AIO-CM5-156 HDMI Audio Out Connector HDMI The CM5 supports dual HDMI 2.0 connectors. The product uses the master HDMI for the integrated LCD screen, there is an extra slave HDMI port to connect a second monitor to the product. You can set this second monitor in the Display Settings of the Raspberry Pi OS. -
Page 17: Camera
AIO-CM5-156 Camera HDMI Connector (slave) Camera The AIO-CM5-156 all in one Pi PC has a camera on the front panel but is not mounted by default. Chipsee Page 17 of 28... -
Page 18: 40-Pin Expansion Connector
AIO-CM5-156 40-Pin Expansion Connector 40-Pin Expansion Connector The AIO-CM5-156 all in one Pi PC has a standard Raspberry Pi 40 way HAT connector, as the figure below shows. You also can check Pinout for more details. 40-pin expansion Chipsee Page 18 of 28... - Page 19 AIO-CM5-156 40-Pin Expansion Connector 40-pin expansion functions You also can check pinout.xyz for more details. Chipsee Page 19 of 28...
-
Page 20: Raspberry Pi Hat Adapter
The product also has an available I/O connector that is 100% compatible with any Raspberry Pi cape or extensions, making the AIO-CM5-156 a perfect fit with your existing tools. The product also comes with an adapter with a standard Raspberry Pi HAT pin-out to add more flexibility to your project. -
Page 21: Buttons And Status Led
AIO-CM5-156 Buttons and Status LED Buttons and Status LED Status LED This product has a status LED on the front panel. The LED turns RED after power on, turns GREEN when the system is booted. It can be controlled by software to flash YELLOW when the CPU is working. -
Page 22: Buttons
Volume-, as the image below shows. Buttons The AIO-CM5-156 all in one Pi PC supports two boot modes, the auto-boot and manual boot modes. The default boot mode is the auto-boot mode. You can either change the boot mode in the software, or toggle boot mode by pushing physical buttons. - Page 23 Buttons The AIO-CM5-156 all in one Pi PC boots from the internal eMMC by default. If you want it to boot from the Type-C connector, press and hold the Volume + button before power ON, and release it 3 seconds after power ON.
-
Page 24: Mounting Procedure
AIO-CM5-156 Mounting Procedure Mounting Procedure You can mount AIO-CM5-156 with the Vesa (75 x 75mm) and Stand mounting methods, as shown in the figures below. VESA mounting The product also ships with a base stand, if you don’t need to stand you can contact us when placing orders. - Page 25 AIO-CM5-156 Mounting Procedure Stand mounting Attention Please make sure the display is not exposed to high pressure when mounting into an enclosure. You can find detailed information about mounting in the Mount IPC Guide. Chipsee Page 25 of 28...
-
Page 26: Mechanical Specifications
AIO-CM5-156 Mechanical Specifications Mechanical Specifications The outer mechanical dimensions of AIO-CM5-156 are 374 x 238 x 33mm (W x L x H). Please refer to the technical drawing in the figures below for details related to the specific product measurements. -
Page 27: D Model
3D Model 3D Model AIO-CM5-156 3D model can be viewed in the online doc in a web browser, if you are reading from the PDF version, please visit the online doc AIO-CM5-156, select hardware documentation, drag the navigation bar to the 3D Model section. -
Page 28: Disclaimer
If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
