  • Page 1 Industrial PC AIO-CM4-156 PN: CS19108RA4156A Revision 1.1 www.chipsee.com...

  • Page 2: Table Of Contents

    Contents 1. AIO-CM4-156 1.1. Product Overview 1.2. Ordering Options ® 1.2.1. Pi CM4 Module 1.2.2. Operating System 1.2.3. Optional Features 1.3. Hardware Features 1.4. Power Input 1.5. Buttons and Status LED 1.5.1. Status LED 1.5.2. Buttons 1.6. Connectivity 1.6.1. USB HOST and Type C 1.6.2.

  • Page 3: Aio-Cm4-156

    AIO-CM4-156 AIO-CM4-156 Front View Rear View Chipsee Page 3 of 16...

  • Page 4: Product Overview

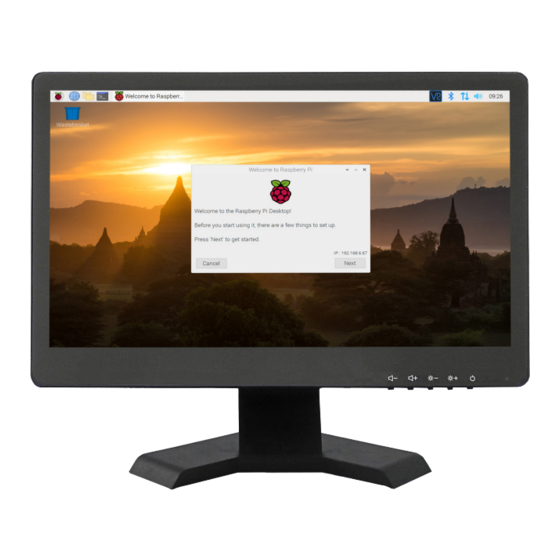

    Front View (Embedded Variant) Embedded PCB Product Overview The AIO-CM4-156 industrial Pi PC (PN: CS19108RA4156A) is an all-in-one desktop computer ® based on Raspberry Pi CM4. It features a 15.6” IPS display with a maximum brightness of 350 cd/m .

  • Page 5: Ordering Options

    ® The AIO-CM4-156 industrial Pi PC does not include the CM4 Raspberry Pi module by default. If you would like to purchase it with a CM4, you can select it at the Chipsee store during the ordering process. Operating System This product comes with a pre-installed Debian OS or Ubuntu OS.
  • Page 6 AIO-CM4-156 Hardware Features AIO-CM4-156 ® Raspberry Pi CM4, CM4 Lite; Quad Cortex-A72 at 1.5GHz Storage 1 x TF card slot for boot. Optional, Internal M.2 NVMe connector for SSD card DDR1 eMMC 16GB Display 15.6” IPS LCD, 1920 x 1080 resolution px, brightness 350 cd/m Touch Optional, 10-point capacitive touch with 1.1mm Armored Glass...

  • Page 7: Power Input

    RAM can be 1/2/4/8GB based on CM4 Lite onboard. Power Input The AIO-CM4-156 industrial Pi PC can be powered by an input voltage: 12V DC. The total power consumption is typically about 8.4W. The power input connector is a 2.1mm I.D x 5.5mm O.D x 9.5mm DC connector.
  • Page 8 Table 257 Boot mode • The AIO-CM4-156 industrial Pi PC boots from the internal eMMC by default. If you want it to boot from the Type-C connector, press and hold the Volume + button before power ON, and release it 3 seconds after power ON.

  • Page 9: Connectivity

    Table 258 Boot mode Connectivity There are many connectivity options available on the AIO-CM4-156 industrial Pi PC. It has 2 x USB 3.0 Host, 1 x Type-C USB (Slave), 1 x Channel Giga LAN (RJ45) Ethernet connector supporting up to 1 Gbps, and RS232+RS485+Relay connector.

  • Page 10: Tf Card Slot

    AIO-CM4-156 TF Card Slot TF Card Slot The AIO-CM4-156 industrial Pi PC features 1 x TF Card (micro SD) slot that can only be used with CM4 Lite modules, as shown on the figure below. Figure 1024: TF Card Slot ...

  • Page 11: Raspberry Pi Hat Adapter

    The product also has an available I/O connector that is 100% compatible with any Raspberry Pi cape or extensions, making the AIO-CM4-156 a perfect fit with your existing tools. The product also comes with an adapter with a standard Raspberry Pi HAT pin-out to add more flexibility to your project.

  • Page 12: Camera

    Camera Figure 1028: Raspberry Pi Hat adapter Camera The AIO-CM4-156 industrial Pi PC has a camera on the front panel but is not mounted by default. Mounting Procedure You can mount AIO-CM4-156 with the Vesa (75 x 75mm) and Stand mounting methods, as shown in the figures below.
  • Page 13 AIO-CM4-156 Mounting Procedure Figure 1029: VESA mounting Figure 1030: Stand mounting Chipsee Page 13 of 16...

  • Page 14: Mechanical Specifications

    Mount IPC Guide. Mechanical Specifications The outer mechanical dimensions of AIO-CM4-156 are 374 x 238 x 33mm (W x L x H). Please refer to the technical drawing in the figures below for details related to the specific product measurements.

  • Page 15: Disclaimer

    This document is provided strictly for informational purposes. Its contents are subject to change without notice. Chipsee assumes no responsibility for any errors that may occur in this document. Furthermore, Chipsee reserves the right to alter the hardware, software, and/or specifications set forth herein at any time without prior notice and undertakes no obligation to update the information contained in this document.

  • Page 16: Technical Support

    If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
