ACORN DROP
ACORN DROP
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACORN DROP and is the answer not in the manual?

Questions and answers

Related Manuals for Family Fun Companies ACORN DROP

Summary of Contents for Family Fun Companies ACORN DROP

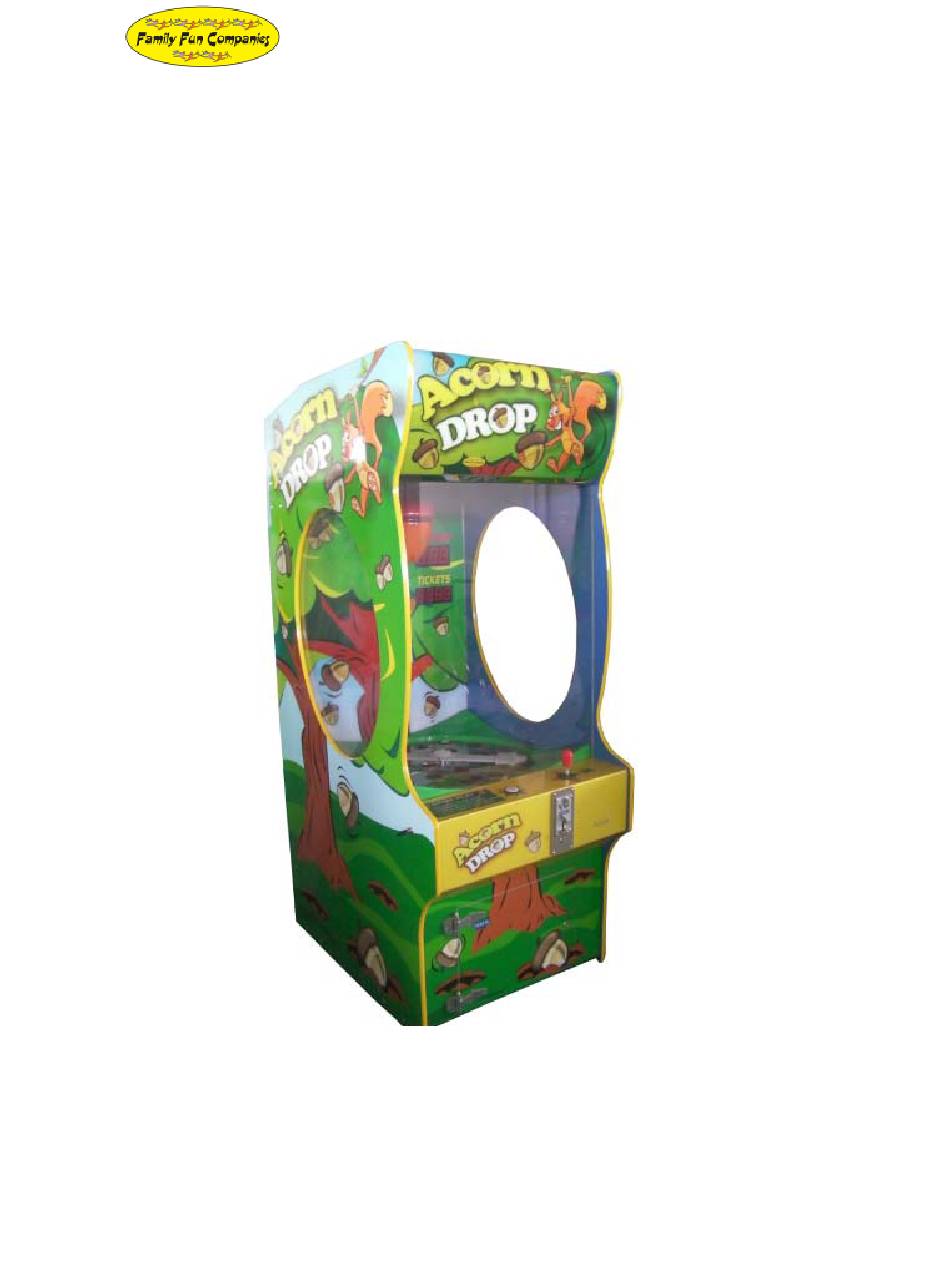

  • Page 1 ACORN DROP ACORN DROP...

  • Page 2: Table Of Contents

    ......................12 ICKET ISPENSER SSEMBLY 8.3 C ......................13 ELECTOR SSEMBLY 8.4 CRANE ASSY ........................... 14-15 8.5 ACORN DROP PARTS ......................16-23 9 OTHER PARTS ASSEMBLY ......................24 9.1 F ......................... 24 ODULE SSEMBLY 9.2 M ......................24-25 OWER OMMECTS 10 APPENDIX ............................

  • Page 3: Introduetion

    ACORN DROP 1 Introduction 《ACORN DROP》is a kind of indoor ticket machine. Its play is easy. The game begins when the player has inserted enough money to create 1 “credit”, Player controls the joystick and moves the lighting tube, release the ball, falls into the rotation plate to get different scores according to different light colors.

  • Page 4: Accessories

    ACORN DROP 3 Accessories Please check the following accessories complete and nothing missing. Item Description Specification Quantity Remark Power Cable 10A/250v User Manual Side Door GY28 Front/Back Door GY08 Cash Box Micro Switch Infrared Transistor (Transmitter) ψ5 Infrared Transistor (Receiver) ψ5...

  • Page 5: Technical Parameter

    ACORN DROP 4 Technical Parameter Environment Requests: Indoor/Ventilated dry/Electric voltage stable Dimension: D110cm x W72cm x H197cm Weight: 180Kg Power: AC 110V/220V ±5% Maximum Power: 135W Player(s): 1 Game Play 1. Insert Coin Game Start 2. Use joystick to control “Nut” Moving to Left, Right and Front, Back.

  • Page 6: Machine Structure

    ACORN DROP 6 Machine Structure Bonus Display Lighting Tube Ticket Display Light Joystick Rotation Plate Coins Display Start Button Lock Coin Selector Hinged Door Assembly Ticket Dispenser Lock...

  • Page 7: Structure Illustration

    ACORN DROP 7 Structure Illustration Rotation Plate Pointer crane Joystick Meter display Panel Ball way Assembly Ball lift motor...
  • Page 8 ACORN DROP Main Board Power Supply Power Propel Power Transfer Board Board Speaker Coin Selector...

  • Page 9: Other Parts Structure Illustration

    ACORN DROP 8 Other Parts Structure Illustration 8.1 Meter Control Panel LED Display A/B: Display the data information SW1: Check the Data Coins in Data Press SW1 Button 1HL: xxxxxxxxxx display coins in data 2HL: xxxxxxxxxx display tickets out data Display A (1H = coins in data –...
  • Page 10 ACORN DROP Display B (xxxx = show the tickets out number – 4 digital first) Push the volume button up, continue to check the data Display A (2L = tickets out data – 4 digital last) Display B (xxxx = the number of tickets – 4 digital last)
  • Page 11 ACORN DROP Press SW3 Display A (P2 = hardware test) Display B (7 = test of rotation plate mechanism) Press SW3 Display A (P2 = hardware test) Display B (8 = test of LED) Press SW3 Display A (P2 = hardware test)

  • Page 12: Ticket Dispenser Assembly

    ACORN DROP 8.2 Ticket Dispenser Assembly Ticket Entry PCB Control Board LED: Ticket indicator Ticket Sensor: Detect the tickets Tickets install method: Tickets are entered into the rear of ticket Shut and pushed forward. The power driven roller will be spring loaded against the idler roller and tickets will not pass until rollers are clear of each other.

  • Page 13: Coin Selector Assembly

    ACORN DROP 8.3 Coin Selector Assembly Coin to place Coin Entry Voltage: DC +12V Loading Ampere: 30mA Coins size: Diameter ψ22mm~ψ26mm, Thickness 1.6mm~2.0mm...

  • Page 14: Crane Assy

    ACORN DROP 8.4 Crane Assy...
  • Page 15 ACORN DROP...

  • Page 16: Acorn Drop Parts

    ACORN DROP 8.5 Acorn Drop Parts Acorn Drop Parts Item Code No. Photo Description AD-033 Acorn Drop AD-101 Speaker AD-102 Coin Tunnel AD-103 Pointer AD-104 Power Supply AD-105 Ticket Holder Control AD-106 Panel(Wood) AD-107 Spring AD-108 Towline...
  • Page 17 ACORN DROP Power switch AD-109 house Ball drop AD-110 Switch AD-111 Ball AD-112 Hinge AD-113 Filter AD-021 Sensor Board AD-024 Pulley AD-114 Meter AD-115 Power Switch AD-116 Switch Green...
  • Page 18 ACORN DROP AD-117 Switch Red AD-118 Bearing 608 AD-119 Meter house AD-120 Bearing F688 AD-121 Anti Link AD-004 Crane Slider AD-011 Crane Motor AD-154 Coin Slot AD-122 Face Acrylic Fluorescent AD-123 lamp T4-8W...
  • Page 19 ACORN DROP Entropy Ticket AD-124 Dispenser AD-125 Belt AD-008 T-Screw AD-012,AD-013 Gear AD-155 Cash Box Light Box AD-126 Filter Regulating AD-127 wheel...
  • Page 20 ACORN DROP AD-128 Ball lift Motor Pointer Led AD-129 Board GA080625A Solenoid Ball AD-130 Gate Solenoid Ball AD-034 Drop AD-131 Locker（GA282） AD-132 Locker（GA08） AD-133 Support foot AD-134 Joy stick AD-135 Main Board...
  • Page 21 ACORN DROP AD-136 Driver Board AD-137 Power Board Playfield AD-138 Board GA-080604A Digital AD-139 （GA-0709258） Digital AD-140 （GA-080318A） Playfield AD-141 Motor...
  • Page 22 ACORN DROP Conductive AD-142 ring Control Panel AD-143 Acrylic Right Side AD-144 Decal AD-145 Left side Decal Playfield AD-146 Decal AD-147 Face Decal...
  • Page 23 ACORN DROP AD-148 Ticket Door Control Panel AD-149 Decal AD-150 Light Box Decal AD-151 Handle Light Box AD-152 Acrylic AD-153 Power cable...

  • Page 24: Other Parts Assembly

    ACORN DROP 9 Other Parts Assembly 9.1 Fix Module Assembly Fixer Wheel Warning  To avoid electrical shock, turn off the game power before removing.  If appearing the wheel can’t turn to move, please change the wheel.  For a safety, please carefully move the machine.

  • Page 25: Appendix

    In addition, the fuse cover must be in place during game operation (where applicable). 10 Appendix V3.1》Dip SW table 《 Acorn Drop 10.1 <Acorn Drop > Position Description No ticket Ticket model No memory Have memory...
  • Page 26 Actual ticket 1/2Ticket OFF OFF ON OFF ON Factory Setting Remark: All setting must turn off the power 《Acorn Drop》Error code table Error code Ticket out error Crane X (Horizontal) Error Crane Y (vertical) Error Ball liter and drop Error...
  • Page 27 ACORN DROP 10.2 《ACORN DROP》Code and Information Item Code Message Remark 0 = Maximum 15 = Minimum XXXX XXXX = Message Code Test of LED display port 1 Test of LED display port 1 Test of ticket dispenser Test of Lighting Tube...

  • Page 28: Acorn Drop》Resource Assignation

    ACORN DROP 10.3 《ACORN DROP》Resource Assignation PIN Number Port Description GA-080110A Main Board Score data connect port JP3 Joystick switch (front) Joystick switch (rear) Joystick IN10 Joystick switch (left) IN11 Joystick switch (right) IN12 Start button switch IN13 Bet button switch...
  • Page 29 ACORN DROP PIN Number Port Description LED Display signal output: DI JP18 LED synchronous time signal: CLK LED output saves: ST LED Display signal output 2: DI LED4131 x 6 JP19 LED synchronous time signal 2: CLK LED4131 x 6...
  • Page 30 ACORN DROP PIN Number Port Description LED damage LED damage LED damage LED damage ULN2803 LED damage OC Output LED damage LED damage LED damage ULN2803 OC Output OH24 OH25 OH26 OH27 SI4953 OH28 12V Output OH29 OH30 OH31 P32I Tickets dispenser signal In +12V +12V (<500mA)
