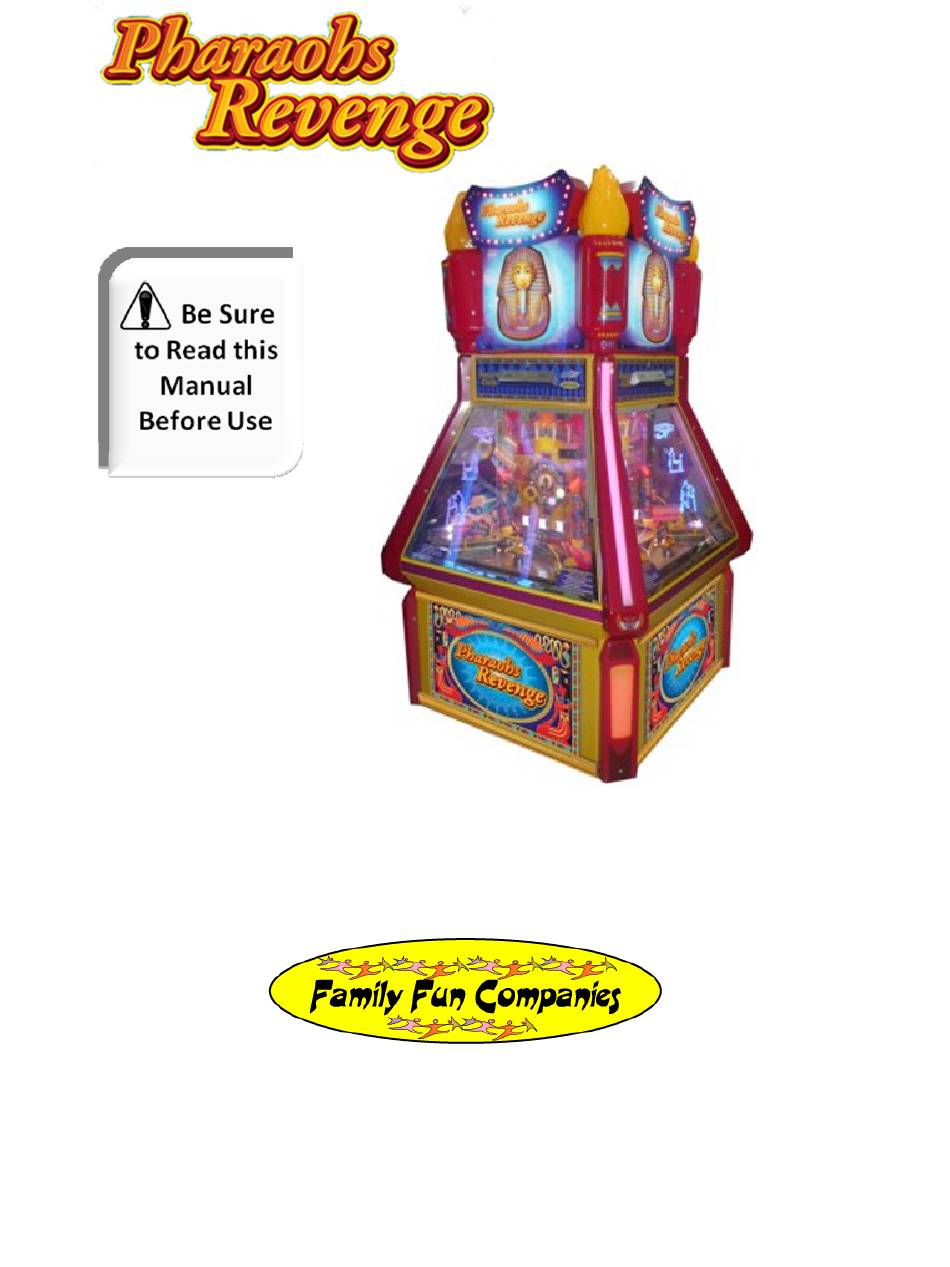

Operation Manual
Family Fun Companies, INC.
Parts, Service and Distribution
708-598-3720

Advertisement

Table of Contents
loading

Related Manuals for Family Fun Companies Pharaohs Revenge

Summary of Contents for Family Fun Companies Pharaohs Revenge

  • Page 1 Operation Manual  Family Fun Companies, INC. Parts, Service and Distribution 708-598-3720...

  • Page 2: Table Of Contents

    Pharaohs Revenge CONTENT Important Safety Instructions ................2 1. SPECIFICATIONS ....................4 2. PACKAGE CONTENTS ................... 5 3. PART NAMES ......................6 4. SET UP & INSTALLATION ..................7 5. HOW TO PLAY ..................... 11 6. GAME OPTIONS ....................12 7.

  • Page 3: Important Safety Instructions

    Pharaohs Revenge Thank you for purchasing Pharaohs Revenge. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 4 Pharaohs Revenge Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 5: Specifications

    Pharaohs Revenge 1. SPECIFICATIONS Rated power supply：AC220-240V 50/60Hz Mini power consumption: 250W Max power consumption: 350W Dimension：W1188.5×D1188.5×H2060 (mm) Weight：Approximately 750Kg NOTICE: After turning off the game, please wait at least 1 minute before restarting again. Note: Game parameters are subject to change without notice.

  • Page 6: Package Contents

    Pharaohs Revenge 2. PACKAGE CONTENTS Open the package and make sure all the items are included:  1 x Body Assembly  Following accessories Part No. Name Spec. Picture AC Power F119-465-000 10A/110V 1.8m cord 6.3A/125Vφ5-20 F119-460-000 Fuse 3A/250Vφ5-20 F119-759-000...

  • Page 7: Part Names

    Pharaohs Revenge 3. PART NAMES Top marquee Speaker marquee Coin chute Playfield Bottom marquee...

  • Page 8: Set Up & Installation

    Pharaohs Revenge 4. SET UP & INSTALLATION This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 2) for places to avoid  Place the unit on a dry level surface  Ventilation openings in the back of the unit must not be obstructed by objects or by wall.
  • Page 9 Pharaohs Revenge 4.3 Transporting the Game If you need to move the game, adjust the levelers back to an “up” position so the casters touch the ground. Leveler Caster Move NOTICE  Be careful not to damage the machine during transport.
  • Page 10 Pharaohs Revenge WARNING Ensure no heavy objects rest on the power cord. Check to make sure the game cabinet does not sit on the power cord as this could damage the cord and become hazardous. To disconnect the game, grip the plug and pull it from the wall outlet. Never pull by the cord.
  • Page 11 Pharaohs Revenge 4.5 How to install parts Open the package, please take out the accessories ( side light cover, light cover fixed board 3,LED48NC-48 strip) and install them. Step 1: Install light cover fixed board3. Step 2: Install strip and connecting wire.

  • Page 12: How To Play

    Pharaohs Revenge 4.6 Power SW & install filter: Following is machine power SW: Note: 1. Do not change SW position, when machine bottom install filter must seal up top marquee filter with metal sheet. 2. Do not change SW position, when install filter on the top marquee. (Refer to electrical...

  • Page 13: Game Options

    Pharaohs Revenge 6. GAME OPTIONS Please refer to the I/O chart and schematics included with the game. To adjust DIP settings, please refer to the I/O chart. The initial settings are in CAPITAL LETTERS. 6.3 Main Board: 6.4 DIP adjust（Default Value）...
  • Page 14 Pharaohs Revenge ： 6.6 Error display 1. If input signal isn’t normal, score flicker display error SW number. 2. Digital alternating display ticket count and “Help” prompt signal when lack of tickets. 3.Error cord display: 1# Error of the ticket reset button...

  • Page 15: Maintenance & Inspection

    Pharaohs Revenge 7. MAINTENANCE & INSPECTION 7.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Try to run the game before operation each day. 2. Conduct monthly routine checks of game components ensure good working condition 3.
  • Page 16 Pharaohs Revenge Trouble shootings: Problem Cause Possible solution 1.Connect power 1.Not connect power Machine stop running 2.Check connector lug whether 2.Wiring head loosen and no display loosen and again fasten 3.Mech short circuit 3.Check circuit Lights are not light Change fluorescent light, check Light burn out or circuit breaker.
  • Page 17 Pharaohs Revenge 7.4.2 Coin pile up adjustment： Remove 3 screws, adjust the pile up strip can control the coin drop down amount. 7.4.3 Replace the spot light Step 1: Open the coin mech lock, take out slot and replace spot light.
  • Page 18 Pharaohs Revenge 7.4.4 Panel assembly maintenance: Step 1: Open glass maintenance door, release screws to take off panel cover. (Such as in 7.4.1 step 1 and step 2.) Step 2: Release game panel four fasten screws and unplug wiring, tilt the panel and can be removed.
  • Page 19 Pharaohs Revenge maintenance： 7.4.5 Swing leg mechanism, Jackpot mechanism，Bonus inching Step 1: Take off the whole panel, method such as 7.4.4 Step 2: Release fasten screws on the panel, and take off front Acrrylic board. Take off this plastic. Step 3: Release these 4...
  • Page 20 Pharaohs Revenge 7.5 Push Jackpot light board and score groups light panel maintenance. If push Jackpot light board or score group light board damaged, please release 2 fasten screws on plastic to change light board. Score group plastic. Release fasten...

  • Page 21: Overall Construction

    Pharaohs Revenge 8. OVERALL CONSTRUCTION 8.1 Main part 1: Part No.(FF) Part No. Draw No. Name PR-1-1 F119-001-000 FLW2-01-00 Machine bracket assembly PR-1-2 F119-002-000 FLW2-02-00 Push coin mechanism PR-1-3 F119-003-000 FLW2-03-00 Panel assembly PR-1-4 F119-004-000 FLW2-04-00 Point assembly PR-1-5 F119-005-000...
  • Page 22 Pharaohs Revenge 8.2 Main part 2: Part No.(FF) Part No. Draw No. Name PR-2-1 F119-101-000 FLW2-01-01 Bottom machine bracket PR-2-2 F119-102-000 FLW2-01-02 Marquee PR-2-3 F119-103-000 FLW2-01-03 Top marquee PR-2-4 F119-104-000 FLW2-01-05F Ticket payout door PR-2-5 F119-243-000 FLW2-01-06F Coin exit cover board...
  • Page 23 Pharaohs Revenge 8.3 Coins mechanism...
  • Page 24 Pharaohs Revenge Part No.(FF) Part No. Draw No. Name PR-3-1 F119-106-000 FLW2-02-01 Push coin blocking board 1 PR-3-2 F119-107-000 FLW2-02-02 Pusher cover board PR-3-3 F119-501-000 FLW2-02-03(M) Pusher PR-3-4 F119-108-000 FLW2-02-04 Pusher 2 PR-3-5 F119-601-000 FLW2-02-05 Block coin doctor blade PR-3-6...
  • Page 25 Pharaohs Revenge 8.4 Play field assembly Part No.(FF) Part No. Draw No. Name PR-4-1 F119-118-000 FLW2-03-01 Panel coin track PR-4-2 F119-119-000 FLW2-03-02 Panel bottom board PR-4-3 F119-702-000 FLW2-03-03 L-side blocking board PR-4-4 F119-703-000 FLW2-03-04 R-side blocking board PR-4-5 F119-704-000 FLW2-03-05...
  • Page 26 Pharaohs Revenge 8.5 Swing assembly Part No.(FF) Part No. Draw No. Name PR-5-1 F119-126-000 FLW2-04-01 Sensor fixed board PR-5-2 F119-127-000 FLW2-04-02 Motor support bracket PR-5-3 F119-128-000 FLW2-04-03 Bearing fixed board PR-5-4 F119-604-000 FLW2-04-04 Connecting rod PR-5-5 F119-129-000 FLW2-04-05 Shaft PR-5-6...
  • Page 27 Pharaohs Revenge 8.6 Panel Bonus assembly:...
  • Page 28 Pharaohs Revenge Part No.(FF) Part No. Draw No. Name PR-6-1 F119-607-000 FLW2-05-01 Bonus door 1 PR-6-2 F119-608-000 FLW2-05-02 Bonus door 2 PR-6-3 F119-134-000 FLW2-05-03 Bearing base PR-6-4 F119-135-000 FLW2-05-04 Spring PR-6-5 F119-136-000 FLW2-05-05 Panel BONUS connecting rod 1 PR-6-6 F119-137-000...
  • Page 29 Pharaohs Revenge 8.7 Coins Bonus assembly: Part No.(FF) Part No. Draw No. Name PR-7-1 F119-152-000 FLW2-06-01 Bearing washer PR-7-2 F119-153-000 FLW2-06-02 Mummy fixed board 1 PR-7-3 F119-154-000 FLW2-06-03 BONUS slip base PR-7-4 F119-155-000 FLW2-06-04 Slip base sheath PR-7-5 F119-156-000 FLW2-06-05...
  • Page 30 Pharaohs Revenge 8.8 Machine assembly 1:...
  • Page 31 Pharaohs Revenge Part No.(FF) Part No. Draw No. Name PR-8-1 F119-169-000 FLW2-07-01 Energy-saving light fixed base PR-8-2 F119-170-000 FLW2-07-02 Fluorescent light fixed base PR-8-3 F119-171-000 FLW2-07-03 Marquee heating panel PR-8-4 F119-172-000 FLW2-07-04 Speaker fixed base PR-8-5 F119-173-000 FLW2-07-05 Speaker fixed board...
  • Page 32 Pharaohs Revenge 8.9 Machine assembly 2: 44 36 37...
  • Page 33 Pharaohs Revenge Part No.(FF) Part No. Draw No. Name PR-9-1 F119-207-000 FLW2-08-01 Ticket box fixed board PR-9-2 F119-502-000 FLW2-08-54(M) No.1 coin box pad PR-9-3 F119-503-000 FLW2-08-55(M) Coin box pad PR-9-4 F119-504-000 FLW2-08-56(M) Coin box base PR-9-5 F119-208-000 FLW2-08-05 Coin box...
  • Page 34 Pharaohs Revenge 8.10 Sale coins assembly: Part No.(FF) Part No. Draw No. Name PR-10-1 F119-244-000 FLW2-10-01 Hopper limited board PR-10-2 F119-245-000 FLW2-10-02 Coins out funnel PR-10-3 F119-246-000 FLW2-10-03 Coins out front cover PR-10-4 F119-247-000 FLW2-10-04 Hopper fixed base PR-10-5 F119-248-000...
  • Page 35 Pharaohs Revenge 8.11 Electrical part Part No.(FF) Part No. Draw No. Name PR-11-1 F119-423-000 29711006006 PCB board PR-11-2 F119-424-000 21701000014 Main board PR-11-3 F119-425-000 29711103004 PCB board PR-11-4 F119-436-000 29711101008 PCB board PR-11-5 F119-427-000 21602000001 Power box PR-11-6 F119-428-000 21602000003...
  • Page 36 Pharaohs Revenge Part No.(FF) Part No. Draw No. Name PR-11-14 F119-436-000 22004000028 MR11 spot light cup PR-11-15 F119-437-000 22004010001 MR16 LED light cup PR-11-16 F119-438-000 22004000028 MR11 spot light cup PR-11-17 F119-439-000 29711103018 PCB board PR-11-18 F119-440-000 29711103019 PCB board...
  • Page 37 Pharaohs Revenge Part No.(FF) Part No. Draw No. Name PR-11-25 F119-447-000 21705000003 Sensor board PR-11-26 F119-448-000 29711103003 Digital board PR-11-27 F119-449-000 29711103007 Digital board PR-11-28 F119-450-000 29711103002 PCB board PR-11-29 F119-451-000 21501000040 Sensor Part No.(FF) Part No. Draw No. Name...
  • Page 38 Pharaohs Revenge Part No.(FF) Part No. Draw No. Name PR-11-39 F119-461-000 21714000010 PCB board PR-11-40 F119-462-000 22702000010 Exhaust fan net PR-11-41 F119-463-000 22702000020 Exhaust fan PR-11-42 F119-464-000 29711103001 PR-11-43 F119-465-000 20711103012 LED light board...

  • Page 39: Game Decals

    Pharaohs Revenge 8.12. GAME DECALS 1 Part No.(FF) Part No. Draw No. Name PR-12-1 F119-720-000 FLW2-HM-01 Top marquee decal PR-12-2 F119-721-000 FLW2-HM-02 Pharaoh panel PR-12-3 F119-722-000 FLW2-HM-03 Speaker marquee decal PR-12-4 F119-723-000 FLW2-HM-04C Score panel decal PR-12-5 F119-724-000 FLW2-HM-05 Bottom marquee decal...
  • Page 40 Pharaohs Revenge 8.13. GAME DECALS 2...
  • Page 41 Pharaohs Revenge Part No.(FF) Part No. Draw No. Name PR-13-1 F119-727-000 FLW2-HM-09C Bonus SW decal PR-13-2 F119-733-000 FLW2-HM-15 Tickets side decal PR-13-3 F119-734-000 FLW2-HM-16 Side decal PR-13-4 F119-735-000 FLW2-HM-17 Triangle decal PR-13-5 F119-737-000 FLW2-HM-19C Non-certification 110V nameplate PR-13-6 F119-738-000 FLW2-HM-20C...
  • Page 42 Pharaohs Revenge Power SW Filter NOise filter...
  • Page 43 Pharaohs Revenge...
