Operation Manual
Family Fun Companies, INC.
Parts, Service and Distribution
708-598-3720

Advertisement

loading
Need help?

Need help?

Do you have a question about the Platinum heights and is the answer not in the manual?

Questions and answers

Related Manuals for Family Fun Companies Platinum heights

Summary of Contents for Family Fun Companies Platinum heights

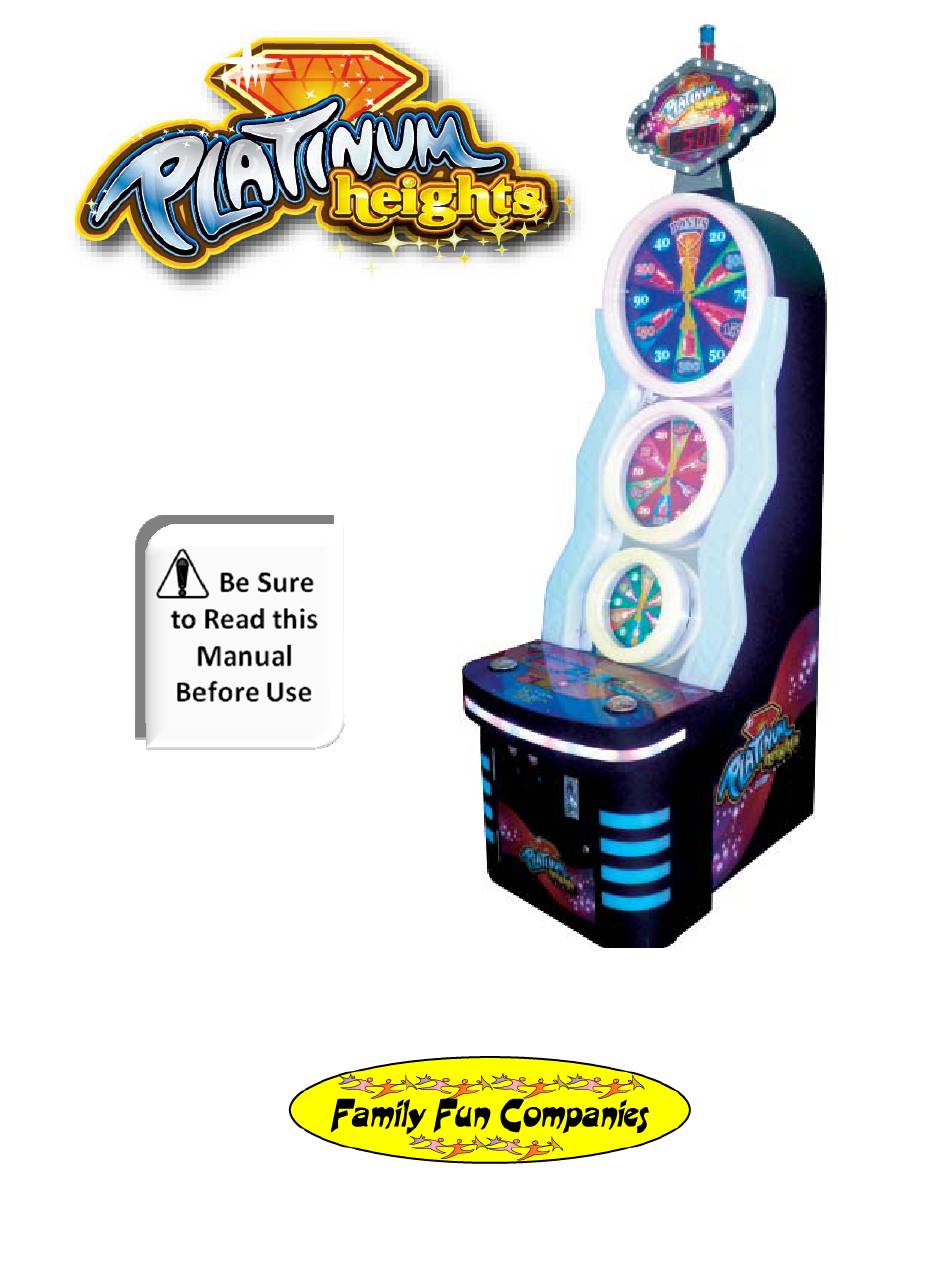

  • Page 1 Operation Manual  Family Fun Companies, INC. Parts, Service and Distribution 708-598-3720...
  • Page 2 Rev. 1.0 CONTENT Important Safety Instructions ..............2 1. SPECIFICATIONS ..................4 2. PACKAGE CONTENTS.................. 5 3. PART NAMES ....................6 4. SET UP & INSTALLATION ................8 5. HOW TO PLAY ................... 12 6. GAME OPTION ..................12 7. MAINTENANCE, INSPECTION ..............19 8.
  • Page 3 Rev. 1.0 Thank you for purchasing Platinum Heights. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 4 Rev. 1.0 This part may be hot or can cause electric shock. Do not touch. Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...
  • Page 5 Rev. 1.0 1. SPECIFICATIONS Rated power supply： 110V 50/60Hz Mix. Power consumption： ： 66W Max. Power consumption： 92W Dimensions： W753.3×D1050×H2631.6 (mm) Weight： About 147Kg NOTICE: After turning off the game, please wait at least 1 minute before restarting again. 753.3 Note: Game parameters are subject to change without notice.
  • Page 6 Rev. 1.0 2. PACKAGE CONTENTS Open the package and make sure all the items are included:  1 x Body Assembly  Following accessories Part No. Code Name Spec. Qty. Illustration Note 10A/250V P110-401-000 23301000001 AC power 1.8m Φ5×20mm P110-402-000 21901000012 Fuse T5A 250VAC 41411012002...
  • Page 7 Rev. 1.0 3. PART NAMES FRONT VIEW Marquee Assy. Top wheel Assy Middle wheel Assy Speaker Bottom wheel Assy. Collect & Quit Button Side lights Assy. Start or Stop Ticket Assy Button Coin mech...
  • Page 8 Rev. 1.0 REAR VIEW Top vent Top service door Middle service door Bottom service door Power outlet Side light...
  • Page 9 Rev. 1.0 4. SET UP & INSTALLATION This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid  Place the unit on a dry level surface  Ventilation openings in the back of the unit must not be obstructed by objects or by wall. 4.1 Play Zone This machine requires space for playing and for maintenance as shown below.
  • Page 10 Rev. 1.0 4.2 Level Adjustment Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the game If the game is installed on an unsuitable floor, it could cause a malfunction. To fix the game, adjust the Leveler down until it touches the floor, lifting the casters off the ground by 5mm.
  • Page 11 Rev. 1.0 4.3 Transporting the Game If you need to move the game, adjust the levelers back to an “up” position so the casters touch the ground. Leveler Caster Move NOTICE  Be careful not to damage the machine during transport. ...
  • Page 12 Rev. 1.0 4.4 Connecting Power WARNING: Check the voltage rating before you connect the equipment to an electrical outlet to ensure that the required voltage and frequency match the available power source. Please refer the label of the machine.  Do not plug the equipment power cables into an electrical outlet if the power cable is damaged.
  • Page 13 Rev. 1.0 5. HOW TO PLAY • Insert coin(s); • Press “Start or Stop” to spin the wheels. Hit the button again to stop the wheel to win corresponding tickets. • If you land on “Advance”, you may choose to continue to the next wheel by pressing “Start or Stop”...
  • Page 14 Rev. 1.0 6.1.2 Test Method Press the TEST button on the mainboard. 6.1.3 LED Display BONUS: LED<1>1-4; Score: LED<3>1-3; Coin: LED<4>1-2; Bottom wheel LED 1~12: LED<7>, LED<8>. 6.1.4 Test Method (main board) 1) Press Test button once: to show if all LED display is normal < 1.2.3.4.5.6.7.8.> 2) Press Test button again: The LED will display “111”...
  • Page 15 Rev. 1.0 6.2 Parameter Setting 6.2.1 Coin per Game DIP Adjust (SW1) Item Content Note Coin(s) per game 6.2.2 BONUS Initial Value DIP Adjust (SW1) Item Content Note BONUS Initial Value 1000 1100 1200 6.2.3 BONUS + DIP Adjust (SW1) Item Content Note...
  • Page 16 Rev. 1.0 6.2.5 Ticket Payout (Ticket per Coin) DIP Adjust (SW2) Note Item Content Ticket Payout (Ticket per Coin) 6.2.6 Demo Music DIP Adjust (SW2) Item Content Note 120s 180s Demo Music 240s 6.2.7 BONUS Max Value DIP Adjust (SW2) Item Content Note...
  • Page 17 Rev. 1.0 6.2.8 Bottom Wheel Score DIP Adjust (SW3) Item Content Note Refer to Sheet 1 Refer to Sheet 1 Bottom Wheel Score Refer to Sheet 1 Refer to Sheet 1 Sheet 1 #10 #11 #12 Bottom Wheel Score 6.2.9 Middle Wheel Score DIP Adjust (SW3) Item Content...
  • Page 18 Rev. 1.0 Sheet 3 C1 BONUS C2 BONUS Wheel C3 BONUS Score C4 BONUS 6.2.11 Pointer Speed DIP Adjust (SW3) Item Content Note Slow Pointer Speed Fast 6.2.12 Payout Method DIP Adjust (SW4) Item Content Note Every 1 ticket to pay 1 ticket Every 2 tickets to pay 1 ticket Payout Method Every 3 tickets to pay 1 ticket...
  • Page 19 Rev. 1.0 Port Content Port Content Port Content J19-1 coin lock1 J21-6 Ticket mech 2 feedback J27-2 Speaker L J19-2 Coin SW1 J21-7 J28-1 Speaker R J19-3 J21-8 J28-2 Speaker R J19-4 coin lock2 J8-1 +12V J4-1 wheel S-I J19-5 Coin SW2 J8-2 J4-2...
  • Page 20 Rev. 1.0 7. MAINTENANCE, INSPECTION 7.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Try to run the game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition 3.
  • Page 21 Rev. 1.0 8. OVERALL CONSTRUCTION 8.1 Main Assembly 2, 3 25,26,27 19, 20, 24...
  • Page 22 Rev. 1.0 Part No. Diagram No. Name Spec. Note 22013020001 Marquee P110-100-000 BBGS-05-01 P110-101-000 LED fixed plate-L Metal BBGS-05-02 P110-102-000 LED fixed plate-R Metal BBGS-00-04 P110-600-000 Top plate mirror Plastic，δ1.2 BBGS-00-18 P110-104-000 Speaker grill-L Stainless steel, δ1.5 BBGS-00-19 P110-105-000 Speaker grill-R Stainless steel, δ1.5 BBGS-00-03 P110-601-000...
  • Page 23 Rev. 1.0 8.2 Control Panel Assembly Part No. Diagram No. Name Spec. Note BBGS-00-31 Meter bracket P110-451-000 Q235,black,δ3 BBGS-00-01 Control panel P110-113-000 Q235,black,δ1.5 BBGS-00-12M P110-501-000 Control panel plate BBGS-00-10 P110-114-000 Reinforced plate-L Q235,black,δ1.5 BBGS-00-11 P110-115-000 Reinforced plate-R Q235,black,δ1.5 BBGS-00-02 P110-116-000 Light fixed plate A Q235,black,δ1 P110-411-000 22301000006...
  • Page 24 Rev. 1.0 8.3 Rear Cabinet Assembly 3，4 Part No. Diagram No. Name Spec. Note TY-JX-014 Top vent P110-119-000 Q235,black,δ1.5 TY-JX-005 P110-120-000 Power outlet Q235,black,δ1.5 TY-JX-006 P110-121-000 Ticket bin 243 Q235,white,δ1 TY-JX-020 P110-118-000 Ticket bin bracket Q235,black,δ1 BBGS-01-23 P110-110-000 Top arc cover Q235, black,δ1, ,δ2 P110-504-000 BBGS-01-35M Upper rear door...
  • Page 25 Rev. 1.0 8.4 Side Light Assembly Part No. Diagram No. Name Spec. Note BBGS-07-01 Side light bed plate -L P110-604-000 White plastic, δ8 BBGS-06-02 Light fixed plate P110-122-000 Metal, δ1.5 BBGS-02-01 Light cover fixed plate P110-123-000 Metal, δ1.5 BBGS-07-02 Light cover-L P110-605-000 White plastic, δ3 BBGS-06-01...
  • Page 26 Rev. 1.0 8.5 Top Wheel Assembly Part No. Drawing No. Name Spec. Note BBGS-00-23 P110-608-000 Pointer A Yellow plastic, δ5 P110-414-000 23406000006 Stepper motor 57HS09 BBGS-00-20 P110-124-000 Motor bracket Q235,black, δ1.5 BBGS-00-21 P110-125-000 Pointer shaft Hexagon brass, 16 P110-415-000 21503000021 Sensor YENOX (NO-5V) BBGS-02-02...
  • Page 27 Rev. 1.0 8.6 Middle Wheel Assembly...
  • Page 28 Rev. 1.0 Part No. Diagram No. Name Qty. Spec. Note Light cover fixed BBGS-02-01 P110-131-000 Metal, δ1.5 plate Middle wheel BBGS-00-15 P110-612000 White plastic, δ3 cover Middle wheel BBGS-03-01 P110-613-000 δ5 clear plastic plate Middle wheel BBGS-03-02 P110-614000 White plastic, δ3 circle Middle wheel light P110-418-000...
  • Page 29 Rev. 1.0 8.7 Bottom Wheel Assembly...
  • Page 30 Rev. 1.0 Part No. Diagram No. Name Qty. Spec. Note BBGS-00-16 P110-616-000 Bottom wheel cover White plastic, δ3 BBGS-04-01 P110-617-000 Bottom wheel plate Clear plastic, δ5 BBGS-04-02 P110-618-000 Bottom wheel circle White plastic, δ3 BBGS-00-25 Pointer C P110-619-000 Yellow plastic, δ5 20711012002 Bottom wheel light P110-422-000...
  • Page 31 Rev. 1.0 8.8 Counter & Wire Box 2, 3, 4 Fuse 5, 6 Diagram No. Part No. Name Qty. Spec. Note 23000000005 Counter P110-426-000 C-012 DC12V 22403000001 P110-427-000 Pot. knob Black Pot. Connect 21709000002 P110-428-000 VR.PCB board 23301000020 P110-429-000 P000-402-000 Φ5×20mm T5A 250VAC 21901000012 Fuse...
  • Page 32 Rev. 1.0 8.9 Electrical Parts...
  • Page 33 Rev. 1.0 Part No. Diagram No. Name Qty. Spec. Note P110-435-000 21602000010 Power supply EPT-S150S24 P110-436-000 21602000001 Power supply BTX-3039(110V220V) Arrow light P110-437-000 20711012008 board BBGS-JTLED.PCB(V1.0) P110-438-000 20711012008 LED board BBGS-JTLED.PCB(V1.0) P110-439-000 21701000014 Main board PLAYV9 Control panel P110-440-000 20740910001 light board YHYX-LED01.PCB(V1.1) RGB flex light...
  • Page 34 Rev. 1.0 8.10 Game Decals Front ：...
  • Page 35 Rev. 1.0 Part No. Diagram No. Name Spec. Qty. Note P110-700-000 BBGS-HM-05E Marquee decal δ5Clear plastic BBGS-HM-02E Top wheel decal δ6Clear plastic P110-701-000 Middle wheel BBGS-HM-03E δ6Clear plastic P110-702-000 decal Bottom wheel BBGS-HM-04E δ6Clear plastic P110-703-000 decal Collect & quit White PVC100u BBGS-HM-13E P110-704-000...
  • Page 36 Rev. 1.0 Back ：...
  • Page 37 Platinum Heights IO chart V1.1 Ver.: V1.0 Date: 7/5/2010 INPUT Content INPUT Content INPUT Content INPUT Content INPUT Content Item Content START/STOP button Ticket out button Coin Ticket mech reset per game Service button Bottom pointer initial position Middle pointer initial position...
  • Page 38 Rev. 1.0 Part No. Diagram No. Name Spec. Qty. Note White PVC100u BBGS-HM-16 Motor driver sticker P110-717-000 glue White PVC100u BBGS-HM-15 Motor sticker P110-718-000 glue White PVC100u TY-HM-38 Warning sticker - S P110-719-000 glue High voltage warning White PVC100u TY-HM-36 P110-720-000 sticker –...
