To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Reactor Table of Contents 1. Brief Description ......................... 2 2. Caution ............................2 2-1.Notice for Installation ....................... 2 2-2. Notice for Operation ......................2 3. Accessories ........................... 3 4. -
Page 3: Brief Description

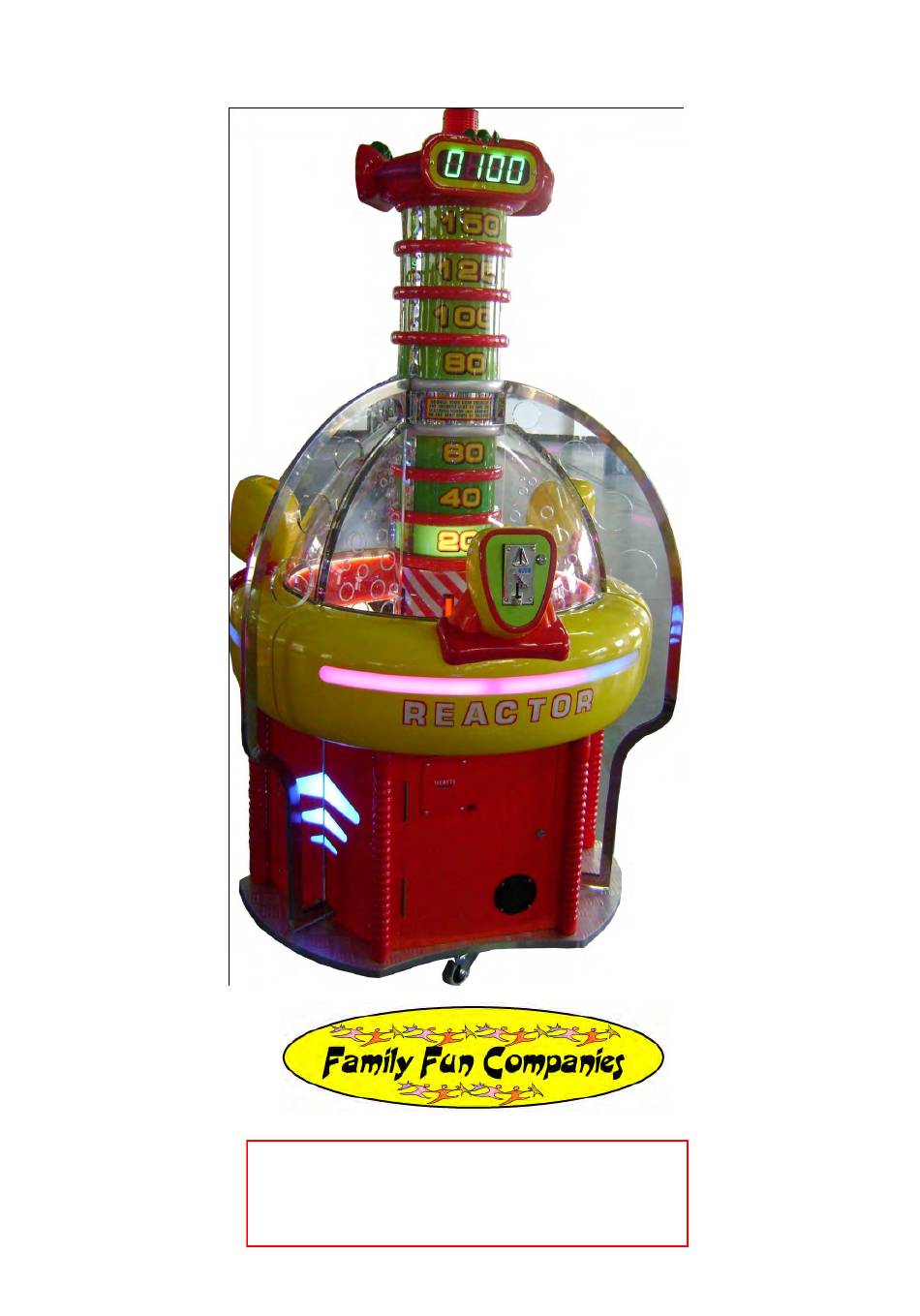

Reactor 1. Brief Description "Reactor” (TW.JQ03.36) is a ticket machine for 1 to 3 players. The play area has 3 symmetrical play stations surrounding a rotating center column target. Each play station can be equally access the rotating targets which are slots in various positions seen vertically on the column. -
Page 4: Accessories
CNR-05L-03-Z 5A/250VAC The Bounce Pad Each machine with three small pieces Test Launch Board JL-Reactor -JF1.PCB (Every 6 machines with a piece) Test Receive Board JL-Reactor -JF2.PCB (Every 6 machines with a piece) Coin Selector TW-130W (Every 18 machines with one) JL-MainBoard-V2012.PCB... -
Page 5: How To Play
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Reactor 4. How to Play Players insert coin(s) into the coin selector at the target column which passes through the coin mechanism, players need to correctly grasp the time of the release of the coin, the coin is deflected off the bounce pad and passes through the target slot, On the target column (there are “JACKPOT”... -
Page 6: Appearance
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Reactor 6. Appearance LED display REA-E-1 Bounce pad REA-E-3 Coin selector REA-E-4 Ticket Exit Clear alarm for no ticket Speaker REA-E-9... -
Page 7: All Parts Description And Location
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Reactor 7. All Parts Description and Location Ticket Dispenser C-1-7 Ticket Box Speaker Coin Box REA-E-10 REA-E-8 REA-E-11 Main Board Stepper Motor Drive REA-E-13 REA-E-18... - Page 8 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Reactor...
- Page 9 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Reactor Lamp Control Board REA-E-14 Power Amplifier Power Supply (Note：DC12V) REA-E-15 REA-E-16 (12V + 5V) REA-E-17 (24V)
-
Page 10: Mechanical Parts Illustration
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Reactor 8. Mechanical Parts Illustration Transmission Mechanism See Reactor Mechanism Exploded View-2... - Page 11 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Reactor Console Mechanism See Reactor Mechanism Exploded View-1...
- Page 12 Console Mechanism Exploded View 1 NAME REA-1-1 M3*10 Hexagon head screws REA-1-2 the reactor console REA-1-3 M4*6 Hexagon socket headless screws REA-1-4 The reactor console cover REA-1-5 Rubber REA-1-6 the reactor console stand REA-1-7 Countersunk head screws M3*10 REA-1-8 Lamp board（white...
- Page 13 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Reactor Lower Core Exploded View 2...
- Page 14 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Reactor NAME REA-2-1 Motor REA-2-2 Motor plate REA-2-3 Round head screws with The bounce pad M4*12 REA-2-4 Hexagon socket head cap screw M4*12 REA-2-5 Motor stand...
- Page 15 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Reactor Upper Core Exploded View 3 NAME REA-3-1 Inner hexagon Screws M4*10 REA-3-2 Turntable REA-3-3 Decoration strips REA-3-4 Bayonet locks REA-3-5 Inner hexagon Screws M4*8 REA-3-6...
-
Page 16: Game Features And Adjustments
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Reactor 9. Game Features and Adjustments 9-1. Meter Board Function Setting Display: This is a LED display which shows the game function settings. Total Coins: Counts the total number of coins since the machine has been used. -
Page 17: Power Supply Input Panel
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Reactor 9-2. Power Supply Input Panel Power Supply Jack: Input AC power according to the specified power of the machine. (At top and bottom of the machine have two Power Supply Jack!) Fuse: There is an AC fuse in the fuse tube. -
Page 18: Ticket Dispenser
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Reactor Coin inserting time adjustment FAST 25mS FAST MIDDLE 50mS MEDIUM SLOW 100mS SLOW three section of pulse. It has been faulted to MEDIUM. Output current level adjustment NO or NC it has been faulted to NO. -
Page 19: Pin Connection On Main Board
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Reactor 10. PIN Connection on Main Board V2010 Port Port Program Specification Wiring Code Items I/O No. Of Wiring Color Function IN1.0 IN#0 0.3mm Coin In IN1.1... - Page 20 0.3mm Coin Meter OUT1.3 OUT#3 0.3mm Coin-In Lamp OUT1.4 OUT#4 0.3mm Alarm Lamp for No Ticket 1# Red light of coin reactor OUT1.5 OUT#5 0.3mm board 1#Green light of coin reactor OUT1.6 OUT#6 0.3mm board 1#Blue light of coin reactor OUT1.7...
- Page 21 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Reactor 2# Red light of coin reactor OUT2.6 OUT#14 0.3mm board +12v 2# Green light of coin reactor OUT2.7 OUT#15 0.3mm board +12v 2# Blue light of coin reactor OUT3.0...
-
Page 22: Function Setting Instruction Ver:007
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Reactor 11. Function Setting Instruction Ver:007 Press the MENU button to enter Function Settings during non-game play. The Function Settings: LED 1000 100 showed MENU(Press the Menu button to change the value). - Page 23 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Reactor Mega Jackpot = 25 Mega Jackpot = 50 Mega Jackpot = 75 Mega Jackpot = 100 Mega Jackpot = 150 Mega Jackpot = 200 Mega Jackpot = 250...
- Page 24 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Reactor Mega Jackpot Surprise Value Every 15 Minutes Mega Jackpot Surprise Value Every 30 Minutes Mega Jackpot Surprise Value Every 45 Minutes Mega Jackpot Surprise Value Every 60 Minutes...
-
Page 25: Lamp Control Board Connection Table
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Reactor Error Code: E1: Alarm for Coin-In Timeout no-t: Alarm for Ticket-Out Timeout Note: 1. Each side of the alarm display on the each side digital, 7 and 9 settings must be set to open in item 6 to be useful. - Page 26 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Reactor φ0.3mm Console Side light Serial display Control latch +12V & φ0.5mm φ0.5mm φ0.3mm Serial display shift clock data φ0.3mm Serial display φ0.3mm Serial display Control latch...
